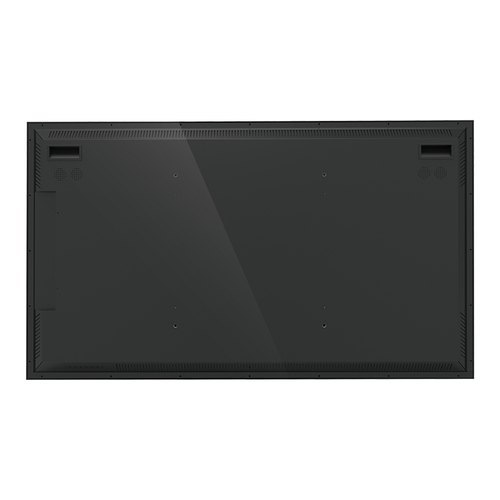

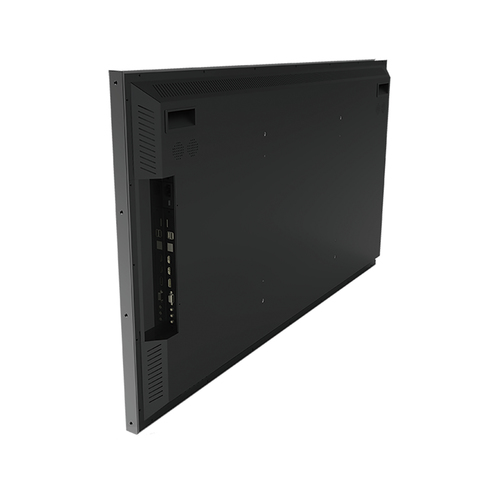

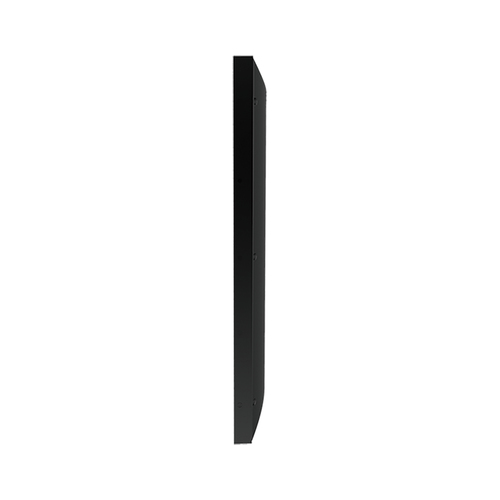

49'' UHD LED Monitor
Model LM49-S400Part no. DHI-LM49-S400EAN 6939554964350
48 specifications
- Display124.5 cm (49")
- Resolution3840 x 2160 pixels
- Energy classG
- TypeCCTV monitor
- Weight20.5 kg
- ColourBlack
Overview
- Display
- 124.5 cm (49")
- Resolution
- 3840 x 2160 pixels
- Energy class
- G
- Type
- CCTV monitor
- Weight
- 20.5 kg
- Colour
- Black
- Brand
- Dahua Technology
- Category
- Surveillance Monitor
- Model
- LM49-S400
- Part number
- DHI-LM49-S400
- EAN / UPC
- 6939554964350
- Also known as
- Dahua Technology 49'' UHD LED Monitor
Specifications
48 specifications in 9 groups
Design
| Specification | Value |
|---|---|
| Product type | CCTV monitor |
| Mounting type | Wall-mounted |
| Product colour | Black |
Display
| Specification | Value |
|---|---|
| Display diagonal | 124.5 cm (49") |
| Display resolution | 3840 x 2160 pixels |
| Display type | LED |
| Display brightness | 450 cd/m² |
| Display aspect ratio | 16:9 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 1.07 billion colours |
| Contrast ratio (typical) | 1000:1 |
| Response time | 8 ms |
| Native refresh rate | 60 Hz |
Performance
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| Speaker power | 5 W |
| Panel mounting interface | 400 x 400 mm |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 2 |
| DisplayPorts quantity | 1 |
| HDMI version | 2.0 |
| VGA (D-Sub) ports quantity | 1 |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| 3.5 mm (1/8-inch) in | Yes |
| RS-232 ports | 2 |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| Power supply type | Internal |
| Power consumption (typical) | 145 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Energy efficiency class (SDR) | G |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 100 kWh |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 85% |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC) |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 20.5 kg |
| Height | 623.2 mm |
| Depth | 65 mm |
| Width | 1091.5 mm |
| Package width | 1275 mm |
| Package depth | 255 mm |
| Package height | 795 mm |
| Package weight | 30.4 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, HDMI |
| Remote control included | Yes |
