SC-32E 80 cm (31.5") 1920 x 1080 pixels
Model SC-32EPart no. 32EC011M0000EAN 190695002394
57 specifications
- Display80 cm (31.5")
- Resolution1920 x 1080 pixels
- Energy classE
- Weight5.6 kg
- ColourBlack
- Mounting typeFreestanding
Overview
- Display
- 80 cm (31.5")
- Resolution
- 1920 x 1080 pixels
- Energy class
- E
- Weight
- 5.6 kg
- Colour
- Black
- Mounting type
- Freestanding
- Brand
- AG Neovo
- Category
- Surveillance Monitor
- Model
- SC-32E
- Part numbers
- 32EC011M0000, SC-32E
- EAN / UPC
- 190695002394, 4710739595796
- Also known as
- AG Neovo SC-32E 80 cm (31.5") 1920 x 1080 pixels
Specifications
57 specifications in 8 groups
Design
| Specification | Value |
|---|---|
| Mounting type | Freestanding |
| Product colour | Black |
| Certification | CE, LVD, WEEE, RoHS, REACH, FCC |
Display
| Specification | Value |
|---|---|
| Display diagonal | 80 cm (31.5") |
| Display resolution | 1920 x 1080 pixels |
| Display type | LED |
| Display brightness | 300 cd/m² |
| Display aspect ratio | 16:9 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.78 million colours |
| Pixel pitch | 0.364 x 0.364 mm |
| Horizontal scan range | 30 - 85 kHz |
| Vertical scan range | 48 - 75 Hz |
| Contrast ratio (typical) | 20000000:1 |
| Response time | 5 ms |
| Native refresh rate | 60 Hz |
Performance
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| Speaker power | 3 W |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |

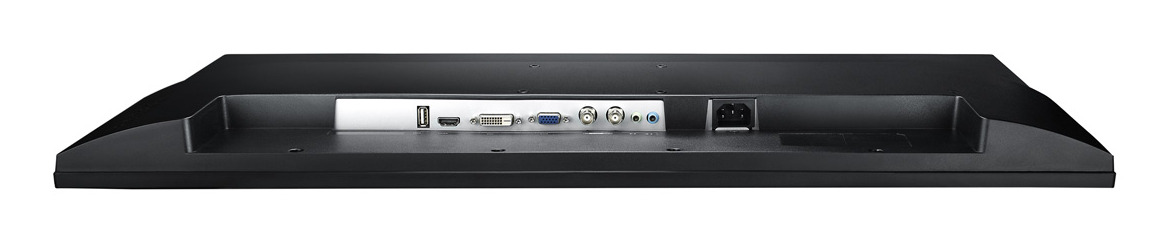

Ports & interfaces
| Specification | Value |
|---|---|
| AV input | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| DVI-D ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Composite video in | 1 |
| USB 2.0 ports quantity | 1 |
| Composite video out | 1 |
| 3.5 mm (1/8-inch) in | Yes |
| 3.5 mm (1/8-inch) out | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| Power supply type | Internal |
| Power consumption (typical) | 46 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.3 W |
| AC adapter output voltage | 100 - 240 V |
| Energy efficiency class (SDR) | E |
| Energy efficiency class (HDR) | Not available |
| Energy efficiency scale | A to G |
| Energy consumption (SDR) per 1000 hours | 26 kWh |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 85% |
| Storage relative humidity (H-H) | 5 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 5.6 kg |
| Height | 540.3 mm |
| Depth | 236.8 mm |
| Width | 728.8 mm |
| Package width | 810 mm |
| Package depth | 210 mm |
| Package height | 528 mm |
| Package weight | 10.5 kg |
Packaging content
| Specification | Value |
|---|---|
| Quantity | 1 |
