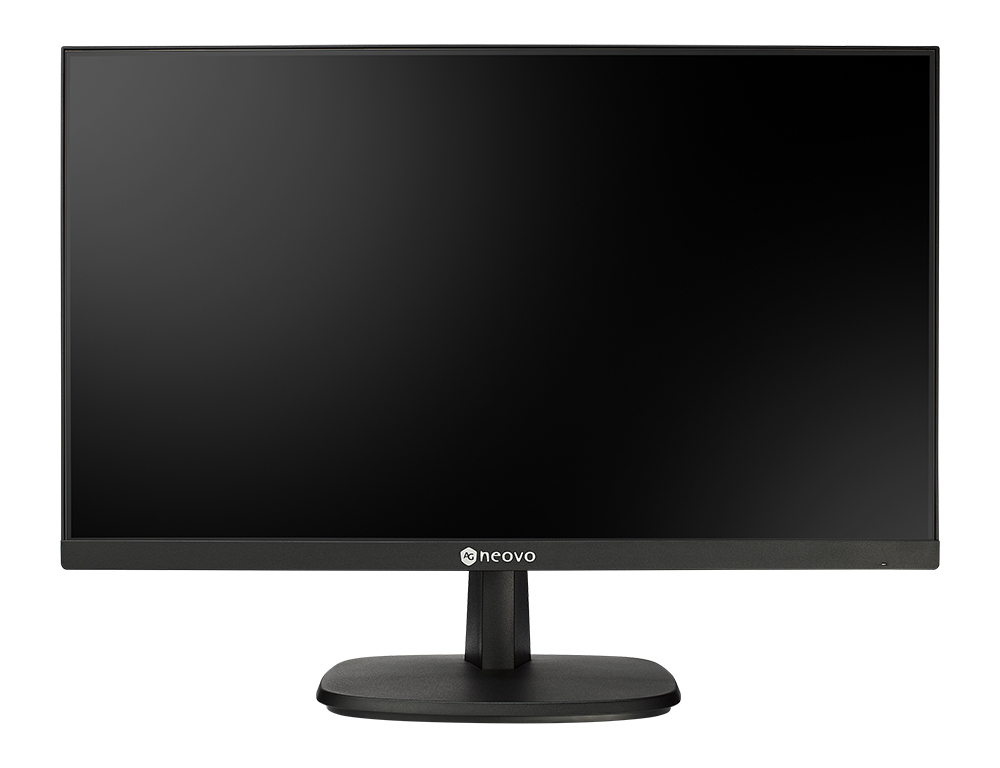

SC-2402 CCTV monitor
61 cm (24") 1920 x 1080 pixels
Model SC-2402Part no. SC242C11E0000EAN 190695003889
60 specifications
- Display61 cm (24")
- Resolution1920 x 1080 pixels
- Energy classE
- TypeCCTV monitor
- Weight3 kg
- ColourBlack
Overview
- Display
- 61 cm (24")
- Resolution
- 1920 x 1080 pixels
- Energy class
- E
- Type
- CCTV monitor
- Weight
- 3 kg
- Colour
- Black
- Brand
- AG Neovo
- Category
- Surveillance Monitor
- Model
- SC-2402
- Part numbers
- SC242C11E0000, SC-2402
- EAN / UPC
- 190695003889, 4710739597318
- Also known as
- AG Neovo SC-2402 CCTV monitor 61 cm (24") 1920 x 1080 pixels
Specifications
60 specifications in 8 groups
Design
| Specification | Value |
|---|---|
| Product type | CCTV monitor |
| Mounting type | Freestanding |
| Product colour | Black |
| Tilt adjustment | Yes |
| Tilt angle | 20° |
Display
| Specification | Value |
|---|---|
| Display diagonal | 61 cm (24") |
| Display resolution | 1920 x 1080 pixels |
| Display type | TFT |
| Panel type | VA |
| Display brightness | 250 cd/m² |
| Display aspect ratio | 16:9 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.275 x 0.275 mm |
| Horizontal scan range | 30 - 85 kHz |
| Vertical scan range | 48 - 75 Hz |
| Contrast ratio (typical) | 20000000:1 |
| Response time | 5 ms |
| Native refresh rate | 60 Hz |
Performance
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| Speaker power | 4 W |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |

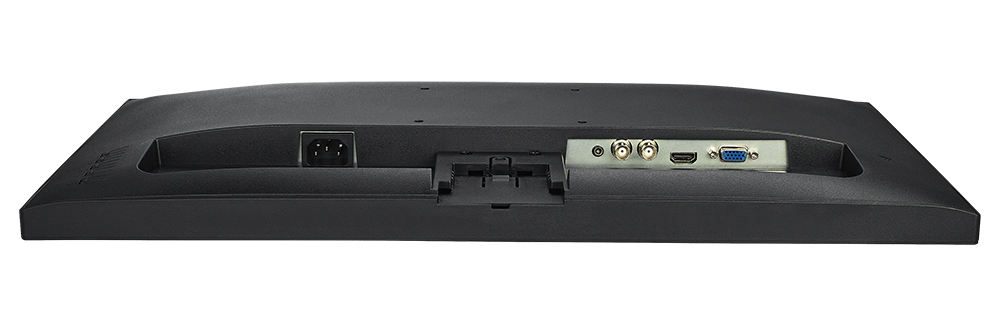

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| VGA (D-Sub) ports quantity | 1 |
| Composite video in | 1 |
| Composite video out | 1 |
| 3.5 mm (1/8-inch) in | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| Power supply type | Internal |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.2 W |
| AC adapter output voltage | 100 - 240 V |
| Energy efficiency class (SDR) | E |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 15.4 kWh |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -5 - 35 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 85% |
| Storage relative humidity (H-H) | 10 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 3 kg |
| Height | 322.1 mm |
| Depth | 41.8 mm |
| Width | 540.1 mm |
| Width (with stand) | 540.1 mm |
| Depth (with stand) | 226.5 mm |
| Height (with stand) | 408.3 mm |
| Weight (with stand) | 3.4 kg |
| Package type | Box |
| Package width | 606 mm |
| Package depth | 108 mm |
| Package height | 480 mm |
| Package weight | 4.8 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Quantity | 1 |
