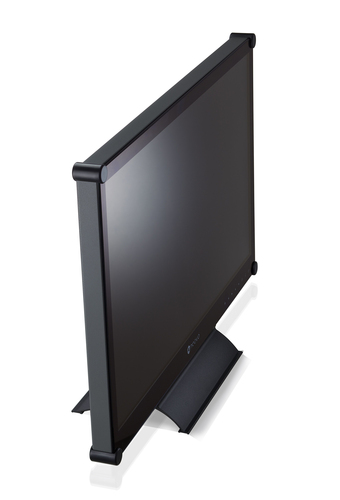

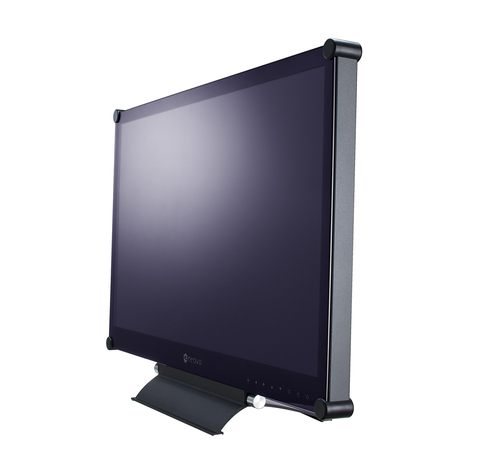

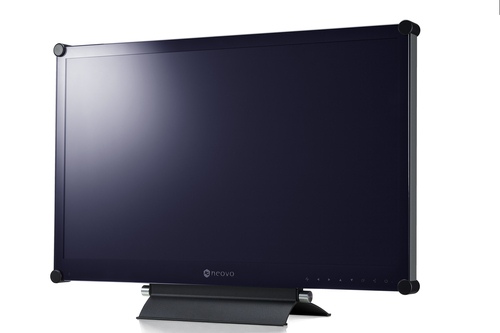

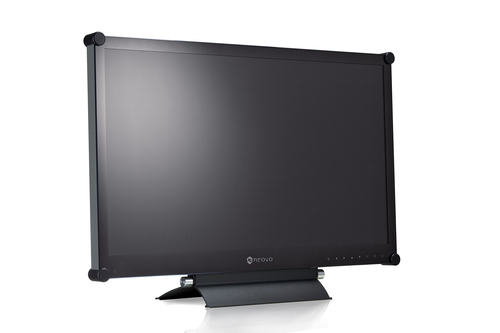

RX-2402 surveillance monitor CCTV monitor
60.5 cm (23.8") 1920 x 1080 pixels
Model RX-2402EAN 4710739598179
59 specifications
- Display60.5 cm (23.8")
- Resolution1920 x 1080 pixels
- TypeCCTV monitor
- Weight6.9 kg
- ColourBlack
- Built-in speaker(s)Yes
Overview
- Display
- 60.5 cm (23.8")
- Resolution
- 1920 x 1080 pixels
- Type
- CCTV monitor
- Weight
- 6.9 kg
- Colour
- Black
- Built-in speaker(s)
- Yes
- Brand
- AG Neovo
- Category
- Surveillance Monitor
- Model
- RX-2402
- Part number
- RX-2402
- EAN / UPC
- 4710739598179
- Also known as
- AG Neovo RX-2402 surveillance monitor CCTV monitor 60.5 cm (23.8") 1920 x 1080 pixels
Specifications
59 specifications in 9 groups
Design
| Specification | Value |
|---|---|
| Product type | CCTV monitor |
| Mounting type | Freestanding |
| Product colour | Black |
| Tilt adjustment | Yes |
| Tilt angle range | 3 - 21° |
Display
| Specification | Value |
|---|---|
| Display diagonal | 60.5 cm (23.8") |
| Display resolution | 1920 x 1080 pixels |
| Display type | LED |
| Panel type | VA |
| Display brightness | 300 cd/m² |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.275 x 0.275 mm |
| Horizontal scan range | 24 - 83 kHz |
| Vertical scan range | 50 - 75 Hz |
| Contrast ratio (typical) | 20000000:1 |
| Response time | 5 ms |
Performance
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| Speaker power | 2 W |
| Picture-by-Picture (PbP) | Yes |
| Picture-in-Picture | Yes |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| VESA mounting | Yes |
| On Screen Display (OSD) | Yes |

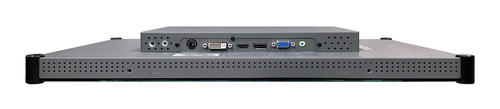

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDMI version | 1.4 |
| DVI-D ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| USB port | Yes |
| Composite video in | 1 |
| USB 2.0 ports quantity | 1 |
| Composite video out | 2 |
| 3.5 mm (1/8-inch) in | Yes |
| 3.5 mm (1/8-inch) out | Yes |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.3 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -5 - 45 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 96% |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, EAC, Federal Communications Commission (FCC), ICES, Low Voltage Directive (LVD), REACH, RoHS, UKCA, WEEE |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 6.9 kg |
| Height | 352.6 mm |
| Depth | 56.2 mm |
| Width | 562.4 mm |
| Width (with stand) | 562.4 mm |
| Depth (with stand) | 196 mm |
| Height (with stand) | 392.8 mm |
| Weight (with stand) | 7.7 kg |
| Package width | 672 mm |
| Package depth | 249 mm |
| Package height | 517 mm |
| Package weight | 10.4 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | Audio, VGA |
