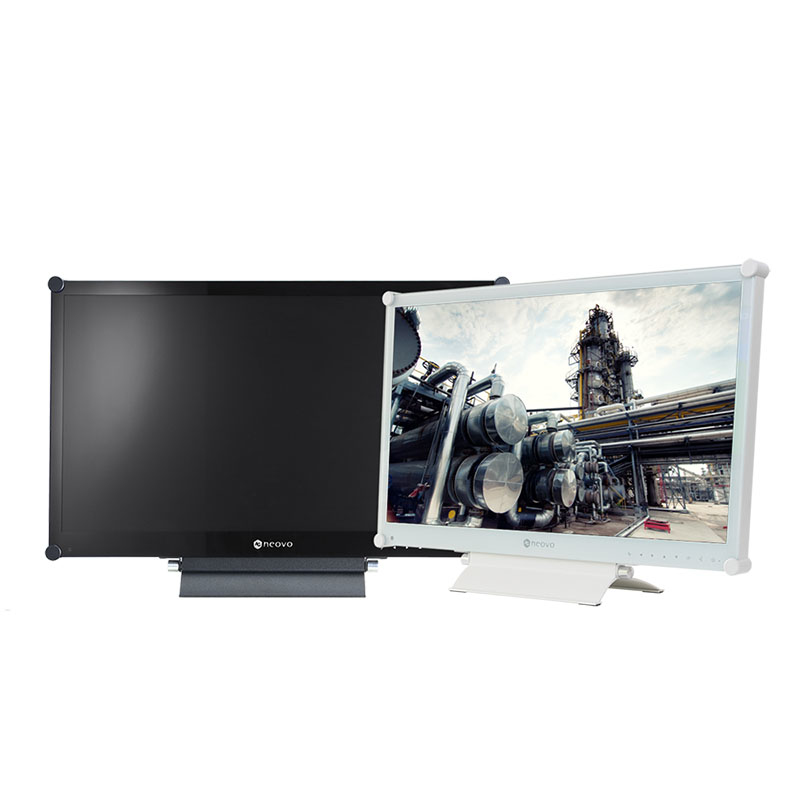

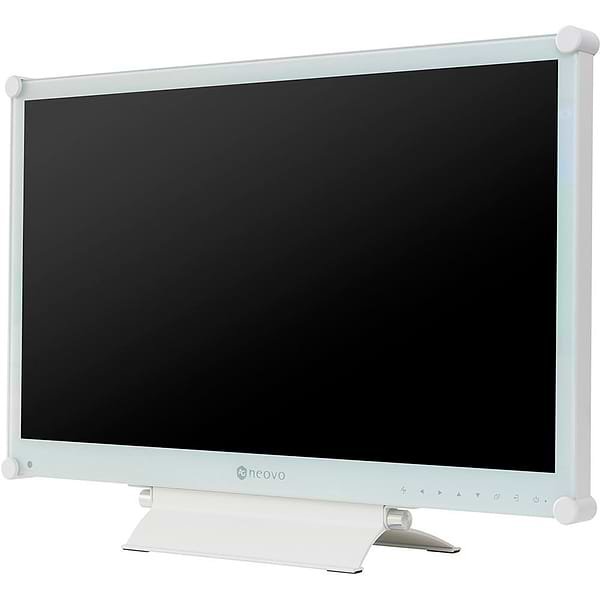

RX-22G CCTV monitor
54.6 cm (21.5") 1920 x 1080 pixels
Model RX-22GPart no. RX2G00A1E0100EAN 4710739595895
60 specifications
- Display54.6 cm (21.5")
- Resolution1920 x 1080 pixels
- Energy classF
- TypeCCTV monitor
- Weight6 kg
- ColourWhite
Overview
- Display
- 54.6 cm (21.5")
- Resolution
- 1920 x 1080 pixels
- Energy class
- F
- Type
- CCTV monitor
- Weight
- 6 kg
- Colour
- White
- Brand
- AG Neovo
- Category
- Surveillance Monitor
- Model
- RX-22G
- Part numbers
- RX2G00A1E0100, RX2G0011E0100
- EAN / UPC
- 4710739595895, 4710739595888
- Also known as
- AG Neovo RX-22G CCTV monitor 54.6 cm (21.5") 1920 x 1080 pixels
Specifications
60 specifications in 9 groups
Design
| Specification | Value |
|---|---|
| Product type | CCTV monitor |
| Mounting type | Freestanding |
| Product colour | White |
| Tilt adjustment | Yes |
| Tilt angle | 17° |
Display
| Specification | Value |
|---|---|
| Display diagonal | 54.6 cm (21.5") |
| Display resolution | 1920 x 1080 pixels |
| Display type | LED |
| Panel type | TN |
| Display brightness | 250 cd/m² |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.248 x 0.248 mm |
| Horizontal scan range | 24 - 83 kHz |
| Vertical scan range | 50 - 75 Hz |
| Response time | 3 ms |
Performance
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| Speaker power | 2 W |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| VESA mounting | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| DVI-D ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| USB port | Yes |
| Composite video in | 2 |
| USB 2.0 ports quantity | 1 |
| Composite video out | 2 |
| 3.5 mm (1/8-inch) in | Yes |
| 3.5 mm (1/8-inch) out | Yes |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| Power consumption (typical) | 18 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.3 W |
| Energy efficiency class (SDR) | F |
| Energy consumption (SDR) per 1000 hours | 18 kWh |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | Federal Communications Commission (FCC), Low Voltage Directive (LVD), REACH, RoHS, WEEE |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 6 kg |
| Height | 324.3 mm |
| Depth | 56.2 mm |
| Width | 513.2 mm |
| Width (with stand) | 513.2 mm |
| Depth (with stand) | 155 mm |
| Height (with stand) | 368.5 mm |
| Weight (with stand) | 6.7 kg |
| Package type | Box |
| Package width | 614 mm |
| Package depth | 204 mm |
| Package height | 477 mm |
| Package weight | 8.8 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
