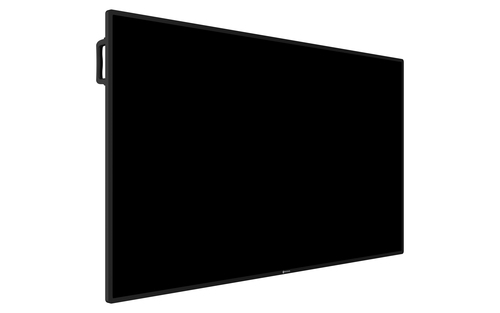

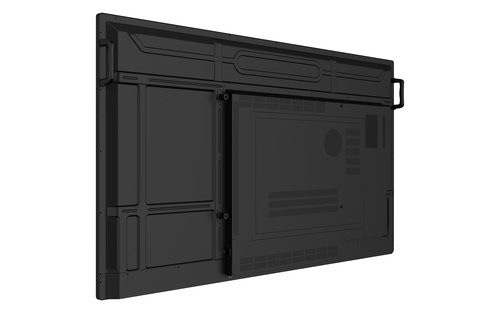

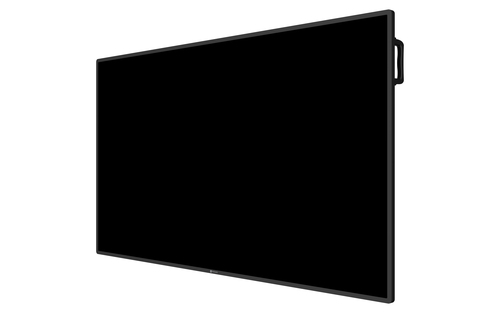

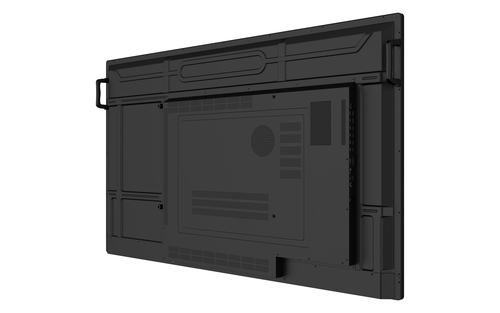

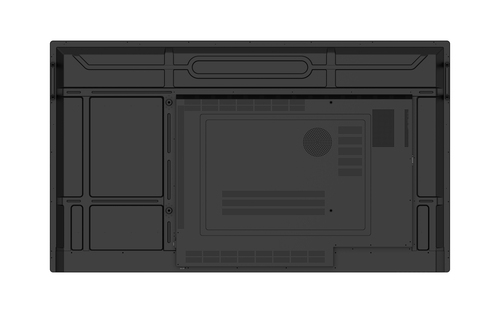

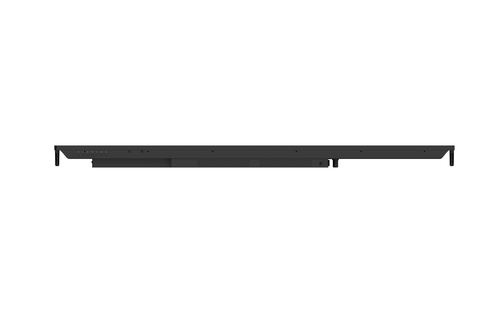

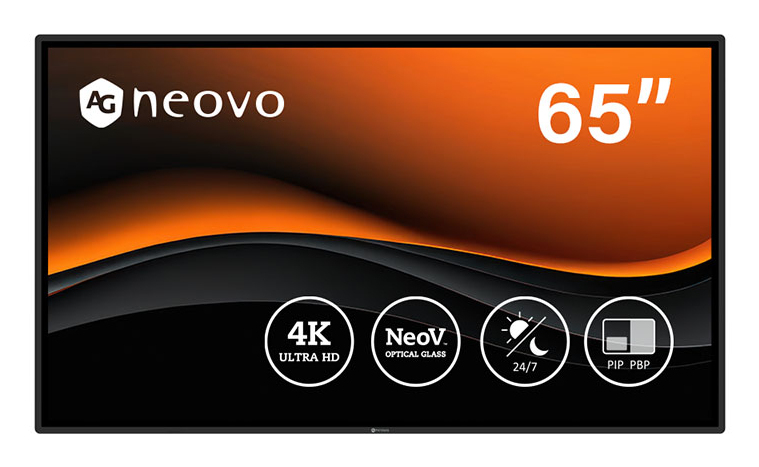

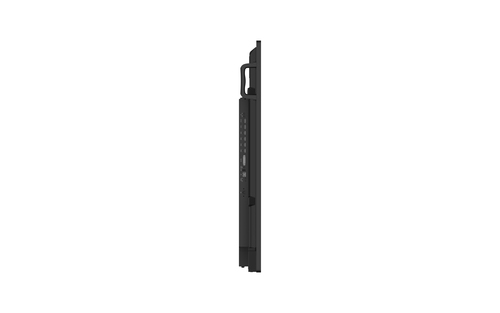

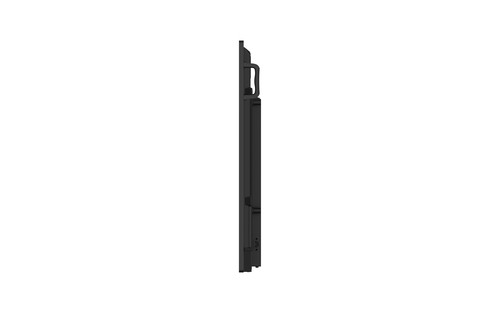

QX6502 surveillance monitor CCTV monitor
165.1 cm (65") 3840 x 2160 pixels
Model QX6502EAN 4710739598902
62 specifications
- Display165.1 cm (65")
- Resolution3840 x 2160 pixels
- Energy classG
- TypeCCTV monitor
- Weight34.5 kg
- ColourBlack
Overview
- Display
- 165.1 cm (65")
- Resolution
- 3840 x 2160 pixels
- Energy class
- G
- Type
- CCTV monitor
- Weight
- 34.5 kg
- Colour
- Black
- Brand
- AG Neovo
- Category
- Surveillance Monitor
- Model
- QX6502
- Part numbers
- QX6502, QX652011M0000
- EAN / UPC
- 4710739598902
- Also known as
- AG Neovo QX6502 surveillance monitor CCTV monitor 165.1 cm (65") 3840 x 2160 pixels
Specifications
62 specifications in 8 groups
Design
| Specification | Value |
|---|---|
| Product type | CCTV monitor |
| Housing material | Metal |
| Mounting type | Freestanding/Wall-mounted |
| Product colour | Black |
| IK code | IK08, IK10 |
| Certification | CE, LVD, REACH, RoHS, WEEE |
Display
| Specification | Value |
|---|---|
| Display diagonal | 165.1 cm (65") |
| Display resolution | 3840 x 2160 pixels |
| Display type | LED |
| Display brightness | 350 cd/m² |
| Display aspect ratio | 16:9 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Contrast ratio (typical) | 1500:1 |
| Response time | 5 ms |
| Digital horizontal frequency | 15 - 136 kHz |
| Digital vertical frequency | 23 - 76 Hz |
| Native refresh rate | 60 Hz |
Performance
| Specification | Value |
|---|---|
| Number of built-in speakers | 2 |
| Speaker power | 10 W |
| Panel mounting interface | 600 x 200 mm |
| VESA mounting | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 4 |
| HDMI input ports quantity | 4 |
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 2 |
| HDMI version | 2.0 |
| DisplayPorts in | 1 |
| DisplayPorts out | 1 |
| Ethernet LAN | Yes |
| RJ-45 ports quantity | 1 |
| USB port | Yes |
| USB 2.0 ports quantity | 2 |
| Audio output | 1 |
| 3.5 mm (1/8-inch) out | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| Power supply type | Internal |
| Power consumption (typical) | 125 W |
| Power consumption (standby) | 0.3 W |
| AC input voltage | 100 - 240 V |
| Energy efficiency class (SDR) | G |
| Energy efficiency class (HDR) | Not available |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 34.5 kg |
| Height | 857.6 mm |
| Depth | 81.9 mm |
| Width | 1482.5 mm |
| Bezel width (bottom) | 1.49 cm |
| Bezel width (side) | 1.49 cm |
| Bezel width (top) | 1.49 cm |
| Package type | Box |
| Package width | 1640 mm |
| Package depth | 185 mm |
| Package height | 1010 mm |
| Package weight | 4.2 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | HDMI, AC |
| Remote control included | Yes |
| Quick start guide | Yes |
| Quantity | 1 |
