QX-24 60.5 cm (23.8") 3840 x 2160 pixels
Model QX-24Part no. QX240011E0100EAN 4710739593945
59 specifications
- Display60.5 cm (23.8")
- Resolution3840 x 2160 pixels
- Energy classG
- Weight7.3 kg
- ColourBlack
- Mounting typeFreestanding
Overview
- Display
- 60.5 cm (23.8")
- Resolution
- 3840 x 2160 pixels
- Energy class
- G
- Weight
- 7.3 kg
- Colour
- Black
- Mounting type
- Freestanding
- Brand
- AG Neovo
- Category
- Surveillance Monitor
- Model
- QX-24
- Part number
- QX240011E0100
- EAN / UPC
- 4710739593945
- Also known as
- AG Neovo QX-24 60.5 cm (23.8") 3840 x 2160 pixels
Specifications
59 specifications in 8 groups
Design
| Specification | Value |
|---|---|
| Mounting type | Freestanding |
| Product colour | Black |
| Height adjustment | Yes |
| Height adjustment range | 0 - 100 mm |
| Tilt adjustment | Yes |
| Tilt angle | 27° |
| Swivel angle range | -45 - 45° |
Display
| Specification | Value |
|---|---|
| Display diagonal | 60.5 cm (23.8") |
| Display resolution | 3840 x 2160 pixels |
| Display type | LED |
| Panel type | IPS |
| Display brightness | 300 cd/m² |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 1.073 billion colours |
| Pixel pitch | 0.137 x 0.137 mm |
| Horizontal scan range | 31 - 92 kHz |
| Vertical scan range | 48 - 85 Hz |
| Contrast ratio (typical) | 1000:1 |
| Response time | 5 ms |
Performance
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| Speaker power | 3 W |
| Panel mounting interface | 100 x 100,100 x 200 mm |
| VESA mounting | Yes |

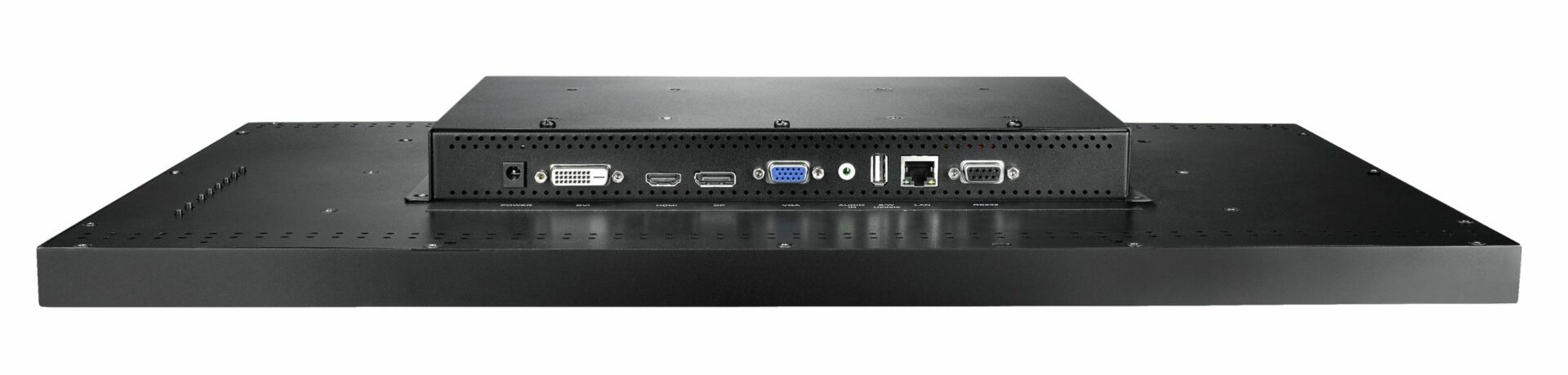

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| DVI-D ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Ethernet LAN | Yes |
| RJ-45 ports quantity | 1 |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| 3.5 mm (1/8-inch) in | Yes |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (typical) | 26.6 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.3 W |
| Energy efficiency class (SDR) | G |
| Energy consumption (SDR) per 1000 hours | 27 kWh |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), REACH, RoHS, WEEE |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 7.3 kg |
| Height | 350 mm |
| Depth | 56 mm |
| Width | 572.6 mm |
| Width (with stand) | 572.6 mm |
| Depth (with stand) | 270 mm |
| Height (with stand) | 514 mm |
| Weight (with stand) | 10.1 kg |
| Package type | Box |
| Package width | 720 mm |
| Package depth | 250 mm |
| Package height | 481 mm |
| Package weight | 13.1 kg |
