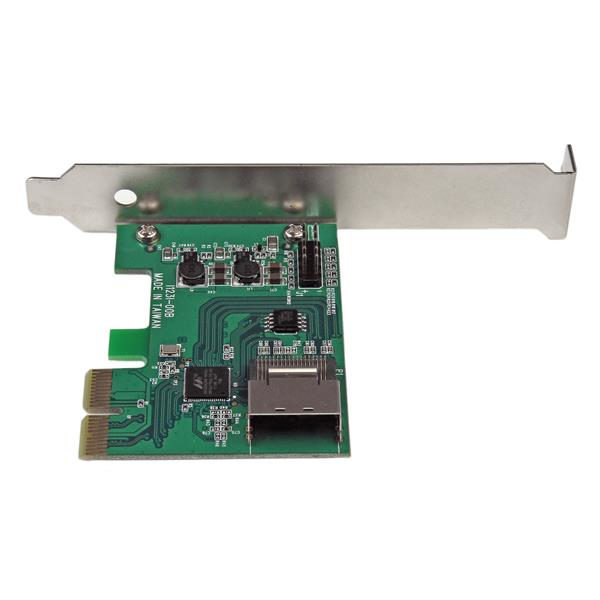

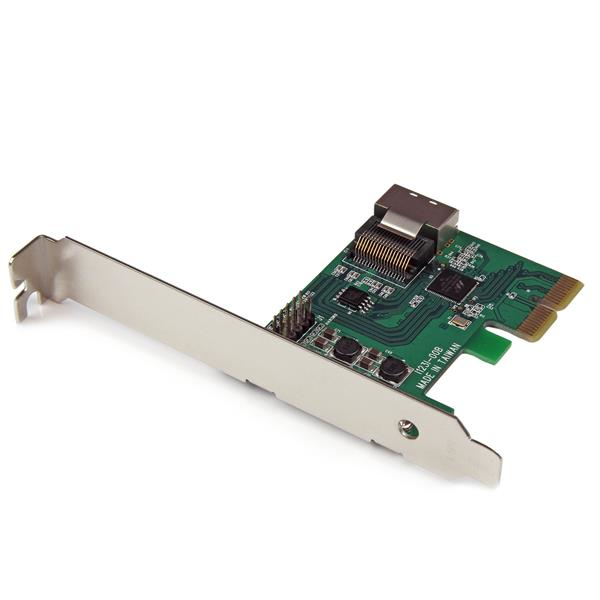

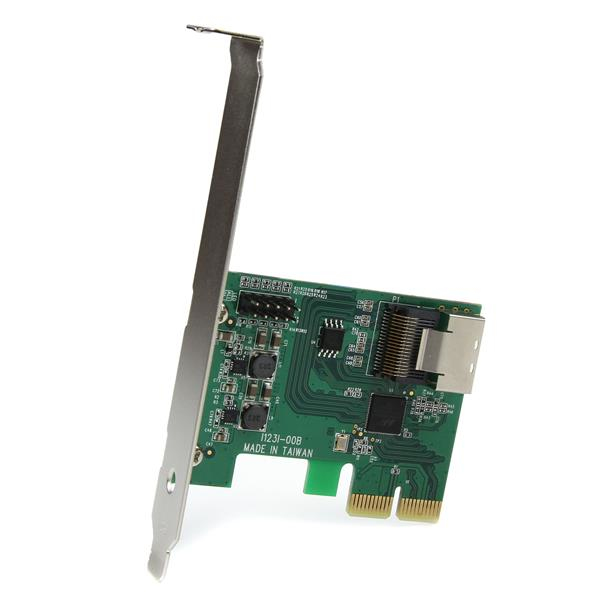

PCI Express 2.0 SATA III 6Gbps Mini-SAS (SFF-8087) RAID Controller Card w/ HyperDuo SSD Tiering
Model PEXSAT34SFFEAN 650308499756
27 specifications
- Weight40 g
- Supported storage drive interfacesSAS
- RAID levels0, 1, 10, JBOD
- Data transfer rate6000 Mbit/s
- Operating temperature (T-T)5 - 50 °C
- Width120 mm
Overview
- Weight
- 40 g
- Supported storage drive interfaces
- SAS
- RAID levels
- 0, 1, 10, JBOD
- Data transfer rate
- 6000 Mbit/s
- Operating temperature (T-T)
- 5 - 50 °C
- Width
- 120 mm
- Brand
- StarTech.com
- Category
- RAID Controller
- Model
- PEXSAT34SFF
- Part number
- PEXSAT34SFF
- EAN / UPC
- 650308499756, 065030849975, 132017887548, 4923123103327 +1 more
- Also known as
- StarTech.com PCI Express 2.0 SATA III 6Gbps Mini-SAS (SFF-8087) RAID Controller Card w/ HyperDuo SSD Tiering
Specifications
27 specifications in 7 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SAS |
| Host interface | PCI Express x2 |
| PCI Express slots version | 2.0 |
| Internal mini-SAS ports | 1 |
| Port multiplier | Yes |
Performance
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 10, JBOD |
| Data transfer rate | 6 Gbit/s |
| SSD support | Yes |
| Chipset | Marvell 88SE9230 |
| Logical block addressing (LBA) support | 48 bit |
| Certification | RoHS, CE, FCC |
Technical details
| Specification | Value |
|---|---|
| Data transfer rate | 6000 Mbit/s |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 20 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 120 mm |
| Depth | 70 mm |
| Height | 10 mm |
| Weight | 40 g |
| Package dimensions (WxDxH) | 145 x 175 x 30 mm |
| Package weight | 131 g |
Other features
| Specification | Value |
|---|---|
| Manual | Yes |
| Drivers included | Yes |
| PCI Card form factor | Full-height (low-profile) |
| Maximum supported storage capacity | 4 TB |
