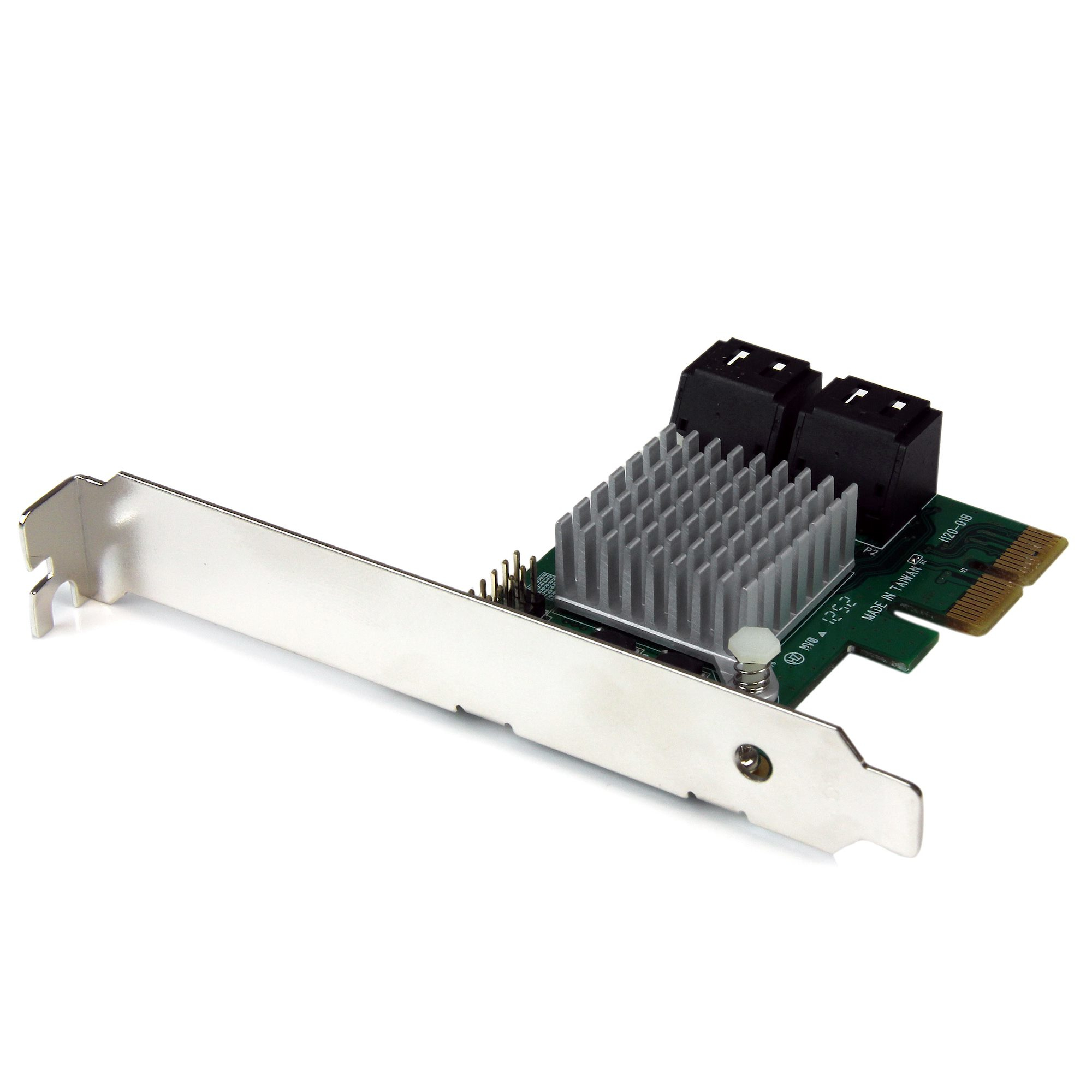

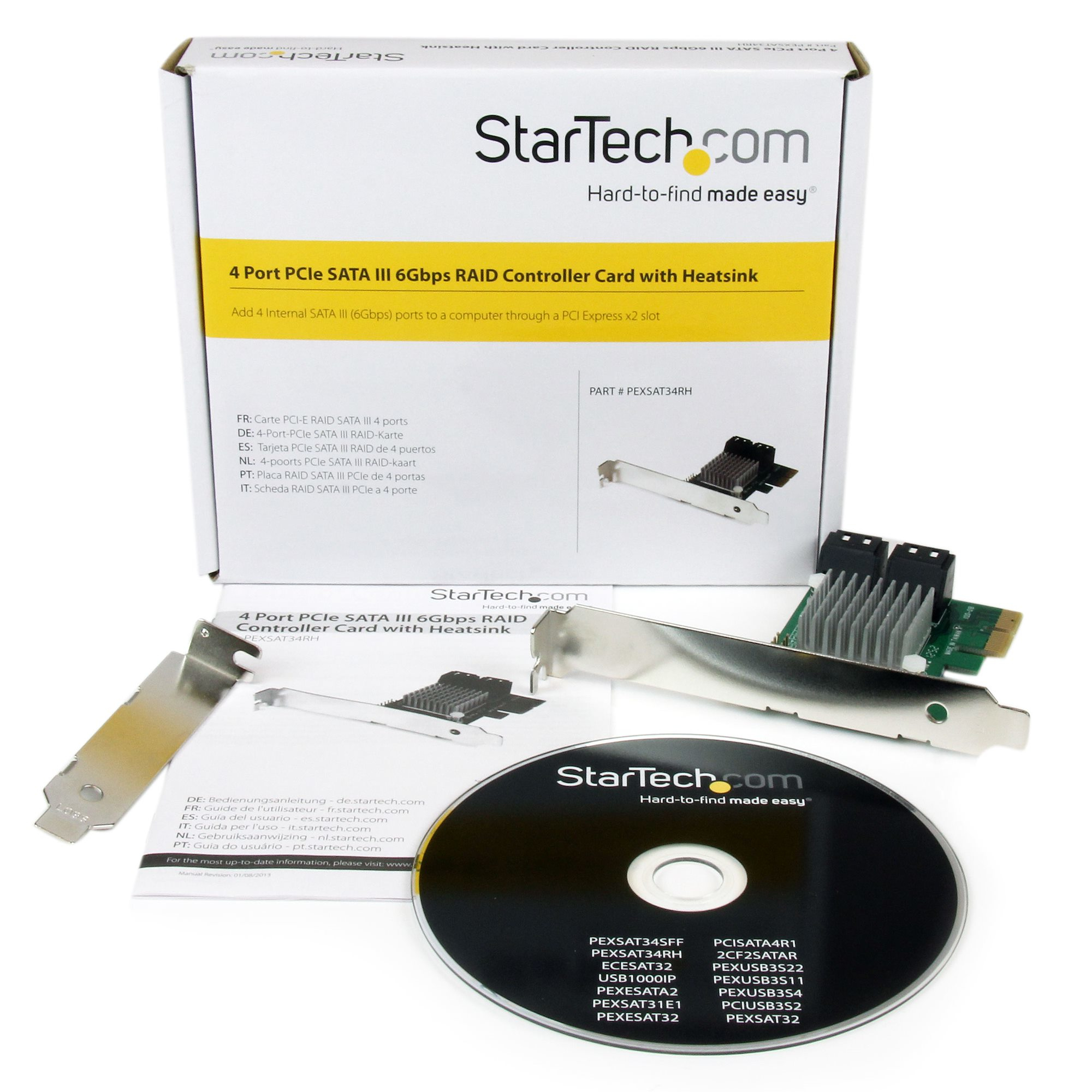

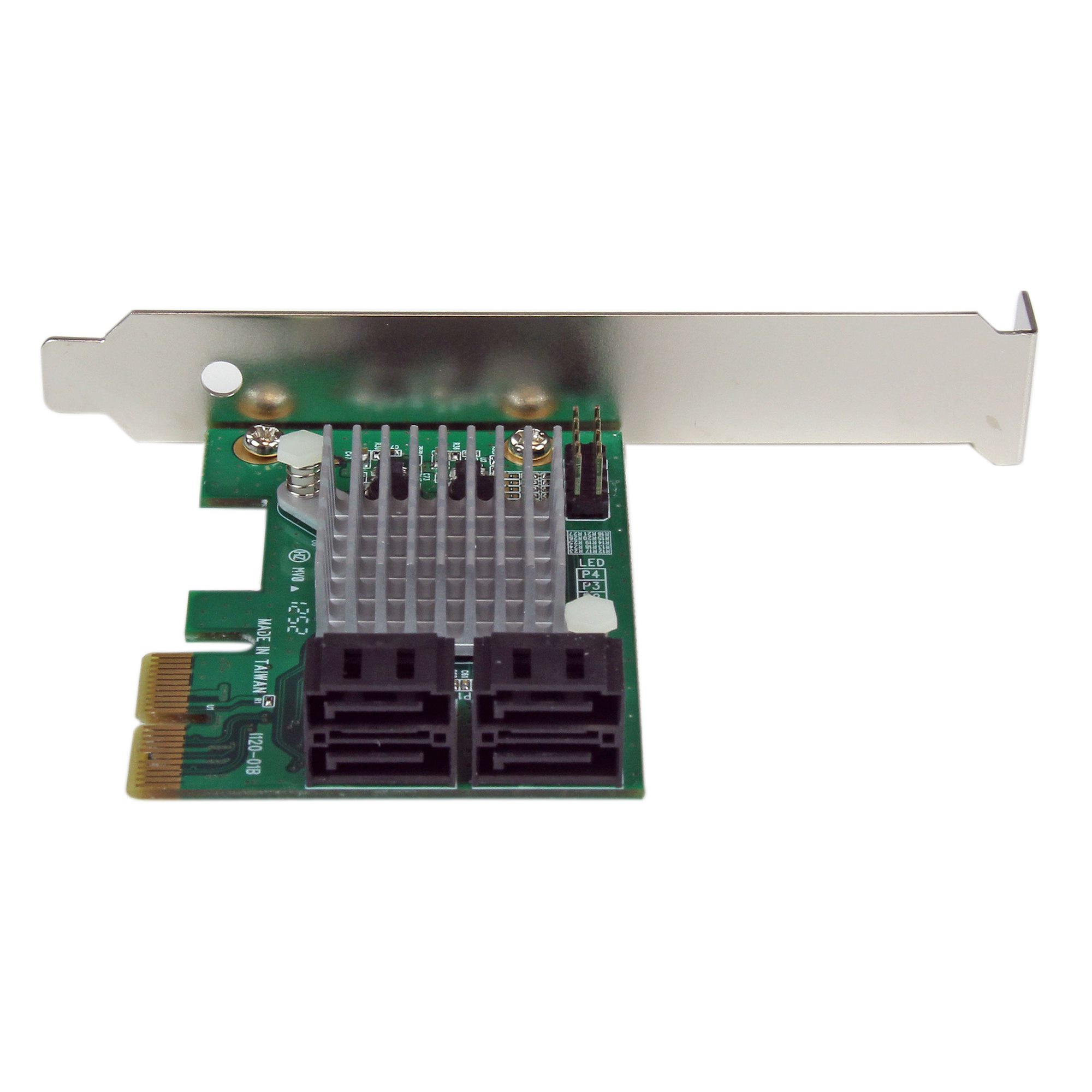

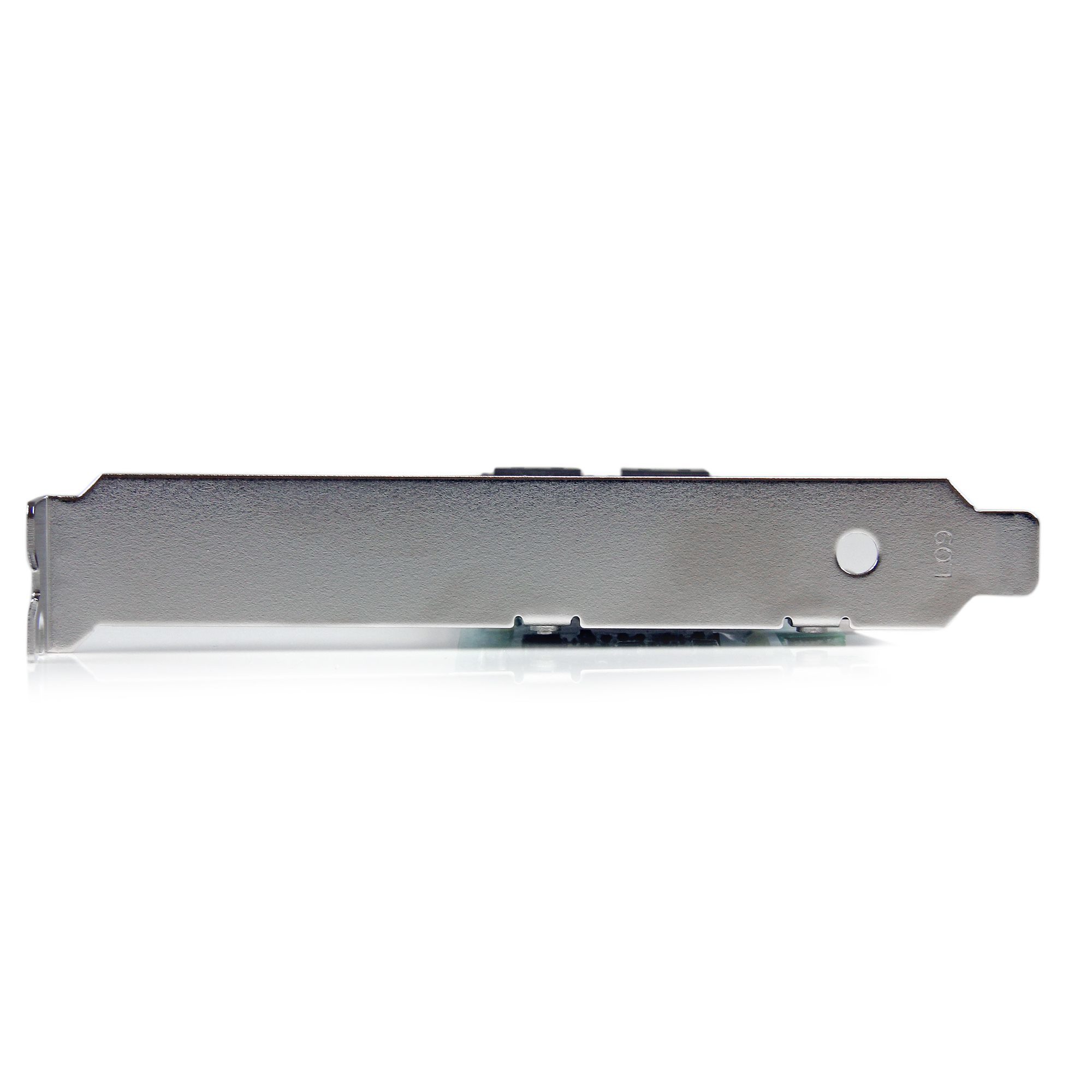

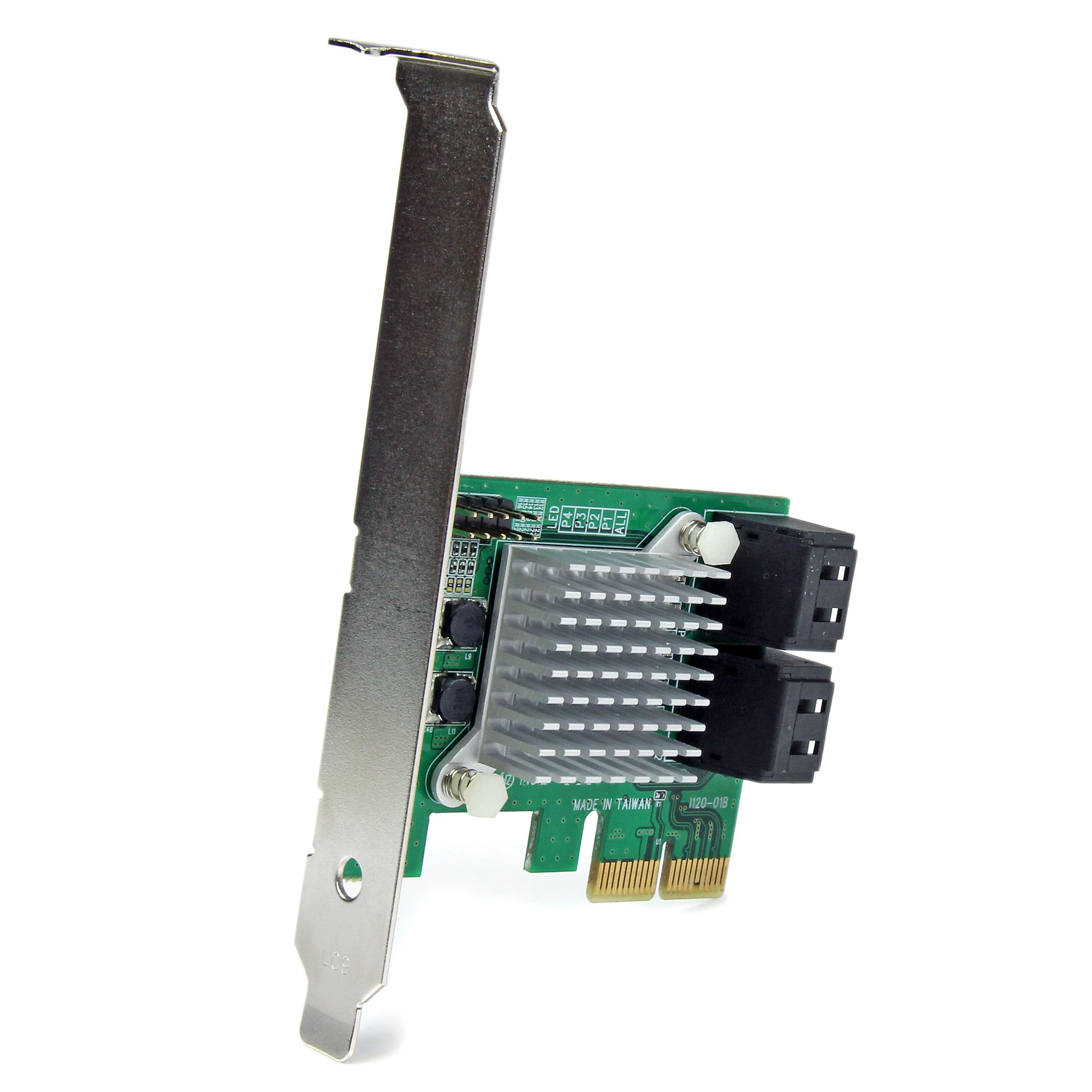

StarTech.com 4 Port PCI Express 2.0 SATA III 6Gbps RAID Controller Card with HyperDuo SSD Tiering - TAA
StarTech.com

4 Port PCI Express 2.0 SATA III 6Gbps RAID Controller Card with HyperDuo SSD Tiering - TAA

Model PEXSAT34RHEAN 803982828460

35 specifications
  • Weight49 g
  • Supported storage drive interfacesSerial ATA, Serial ATA III
  • RAID levels0, 1, 10, JBOD
  • Compliance certificatesCE, RoHS
  • Mac compatibilityYes
  • Operating temperature (T-T)5 - 50 °C
See all specifications

Overview

Weight
49 g
Supported storage drive interfaces
Serial ATA, Serial ATA III
RAID levels
0, 1, 10, JBOD
Compliance certificates
CE, RoHS
Mac compatibility
Yes
Operating temperature (T-T)
5 - 50 °C
Brand
StarTech.com
Model
PEXSAT34RH
Part number
PEXSAT34RH
EAN / UPC
803982828460, 031113609514, 065030849951, 132017887531 +10 more
Also known as
StarTech.com 4 Port PCI Express 2.0 SATA III 6Gbps RAID Controller Card with HyperDuo SSD Tiering - TAA

Specifications

35 specifications in 8 groups

Ports & interfaces

Supported storage drive interfacesSerial ATA, Serial ATA III
Host interfacePCI Express
PCI Express slots version2.0
Internal SATA ports quantity4

Performance

RAID levels0, 1, 10, JBOD
Data transfer rate6 Gbit/s
SSD supportYes
ChipsetMarvell - 88SE9230
Logical block addressing (LBA) support48 bit

Technical details

Compliance certificatesCE, RoHS
Sustainability complianceYes

System requirements

Windows operating systems supportedWindows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home
Mac compatibilityYes
Mac operating systems supportedMac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Linux operating systems supportedYes
Server operating systems supportedWindows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019

Operational conditions

Operating temperature (T-T)5 - 50 °C
Storage temperature (T-T)-25 - 70 °C
Operating relative humidity (H-H)20 - 80%

Weight & dimensions

Width120 mm
Depth70 mm
Height20 mm
Weight49 g
Package width144 mm
Package depth174 mm
Package height30 mm
Package weight141 g

Logistics data

Master (outer) case width382 mm
Master (outer) case length498 mm
Master (outer) case height322 mm
Products per master (outer) case60 pc(s)
Harmonized System (HS) code84733080

Other features

ManualYes
Drivers includedYes
PCI Card form factorFull-height (low-profile)
