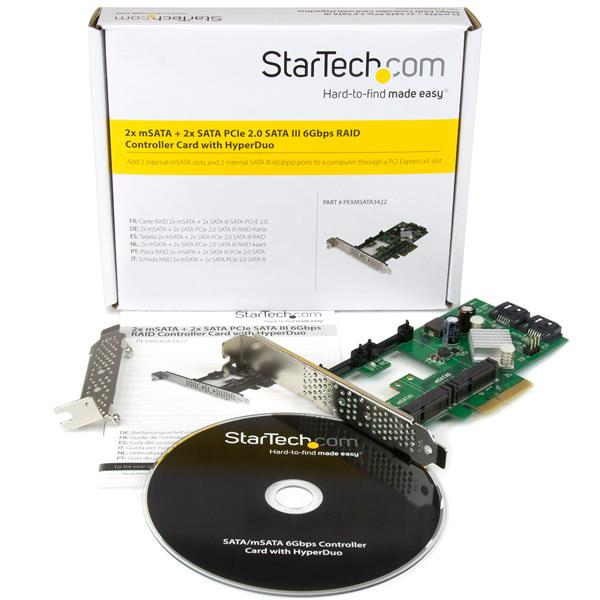

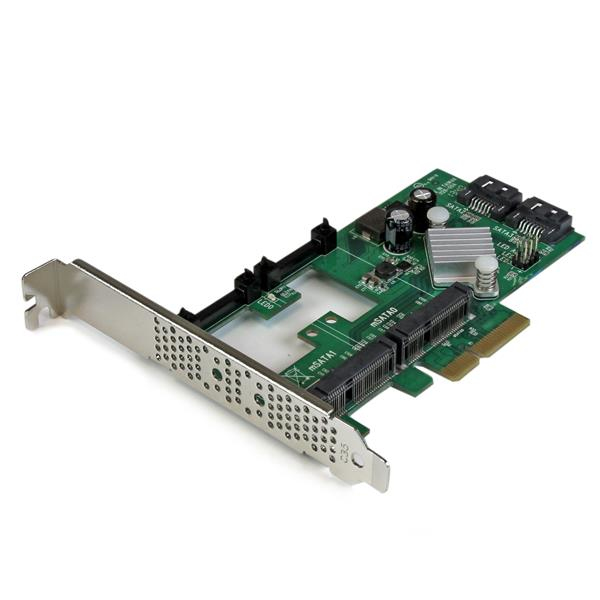

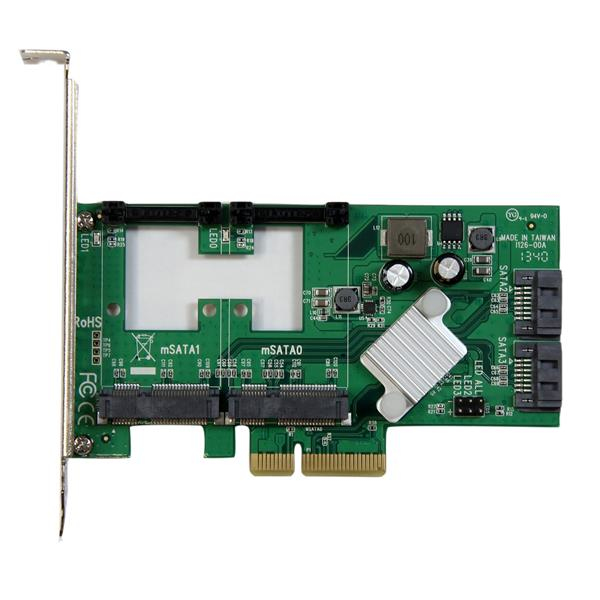

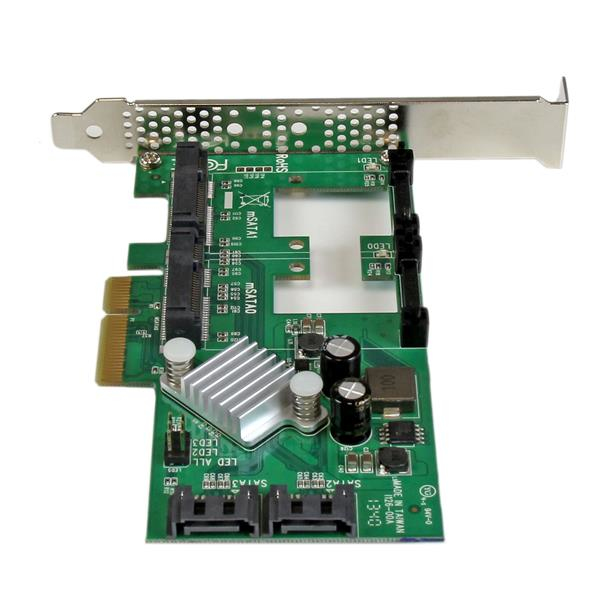

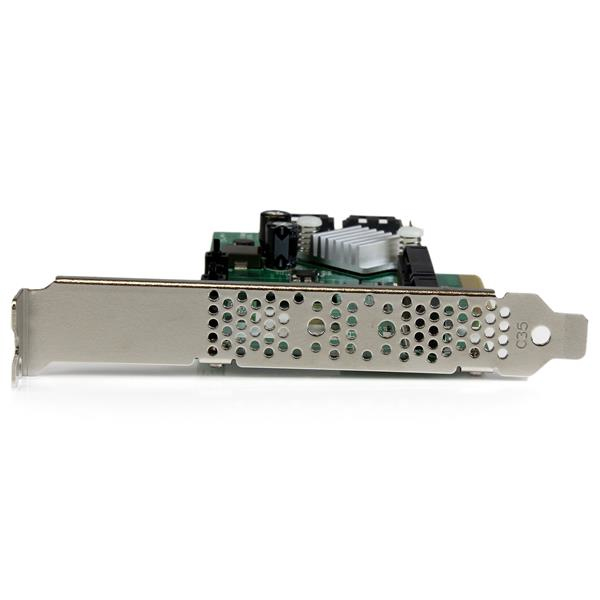

2-Port PCI Express 2.0 SATA III 6Gbps RAID Controller Card with 2 mSATA Slots and HyperDuo SSD Tiering
Model PEXMSATA3422EAN 7426900704702
32 specifications
- Weight60 g
- Host interfacePCI Express x4
- RAID levels0, 1, JBOD
- Linux operating systems supportedYes
- Operating temperature (T-T)5 - 50 °C
- Width20 mm
Overview
- Weight
- 60 g
- Host interface
- PCI Express x4
- RAID levels
- 0, 1, JBOD
- Linux operating systems supported
- Yes
- Operating temperature (T-T)
- 5 - 50 °C
- Width
- 20 mm
- Brand
- StarTech.com
- Category
- RAID Controller
- Model
- PEXMSATA3422
- Part number
- PEXMSATA3422
- EAN / UPC
- 7426900704702, 065030859394, 738878234059, 758399115811 +3 more
- Also known as
- StarTech.com 2-Port PCI Express 2.0 SATA III 6Gbps RAID Controller Card with 2 mSATA Slots and HyperDuo SSD Tiering
Specifications
32 specifications in 7 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Supported storage drive interfaces | Serial ATA, Serial ATA II, Serial ATA III |
| Host interface | PCI Express x4 |
| PCI Express slots version | 2.0 |
| Port multiplier | Yes |
Performance
| Specification | Value |
|---|---|
| RAID levels | 0, 1, JBOD |
| Data transfer rate | 6 Gbit/s |
| SSD support | Yes |
| Chipset | Marvell - 88SE9230 |
| Logical block addressing (LBA) support | 48 bit |
| Certification | RoHS, CE, FCC |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 20 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 20 mm |
| Depth | 125 mm |
| Height | 120 mm |
| Weight | 60 g |
| Package width | 144 mm |
| Package depth | 174 mm |
| Package dimensions (WxDxH) | 170 x 142 x 30 mm |
| Package height | 32 mm |
| Package weight | 160 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733080 |
Other features
| Specification | Value |
|---|---|
| Manual | Yes |
| Drivers included | Yes |
| PCI Card form factor | Full-height (low-profile) |
| Maximum supported storage capacity | 4 TB |
| Internal mSATA ports quantity | 2 |
