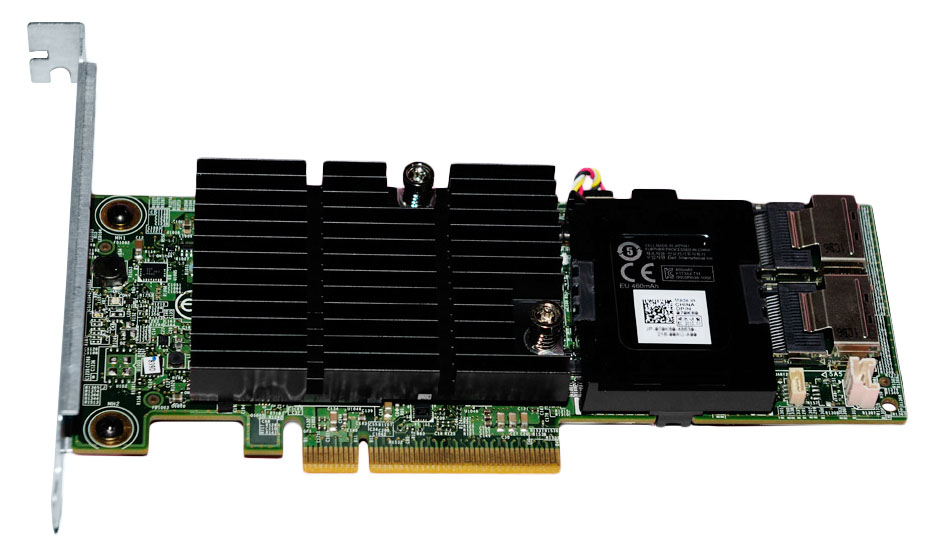

Dell PERC H710p

PERC H710p

Model PERC H710pPart no. 405-12102EAN 5397063766918

22 specifications

ProcessorPowerPC
Memory1024 MB
Supported storage drive interfacesSAS, Serial ATA
RAID Level MigrationYes
Voltage12 V
Operating temperature (T-T)0 - 60 °C

See all specifications

Overview

Processor: PowerPC
Memory: 1024 MB
Supported storage drive interfaces: SAS, Serial ATA
RAID Level Migration: Yes
Voltage: 12 V
Operating temperature (T-T): 0 - 60 °C

Brand: Dell
Category: RAID Controller
Model: PERC H710p
Part numbers: 405-12102, 405-12146, 405-12173, 405-12147, 405-12100
EAN / UPC: 5397063766918, 5397063766901, 5742220670100, 3540260130989 +2 more
Also known as: DELL PERC H710p RAID controller PCI Express x8 2.0 6 Gbit/s

Specifications

22 specifications in 7 groups

Ports & interfaces

Specification	Value
Supported storage drive interfaces	SAS, Serial ATA
Host interface	PCI Express x8
PCI Express slots version	2.0
Internal mini-SAS ports	2

Performance

Specification	Value
RAID Level Migration	Yes
RAID levels	0, 1, 5, 6, 10, 50, 60
Data transfer rate	6 Gbit/s
SSD support	Yes
Internal memory	1024 MB
Internal memory type	DDR3
Memory clock speed	1333 MHz
Chipset	LSISA2208
Number of devices supported	32
Online Capacity Expansion	Yes

Processor

Specification	Value
Processor family	PowerPC

Power

Specification	Value
Voltage	12 V

System requirements

Specification	Value
Linux operating systems supported	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 60 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 95%

Weight & dimensions

Specification	Value
Width	64.4 mm
Height	167.6 mm
