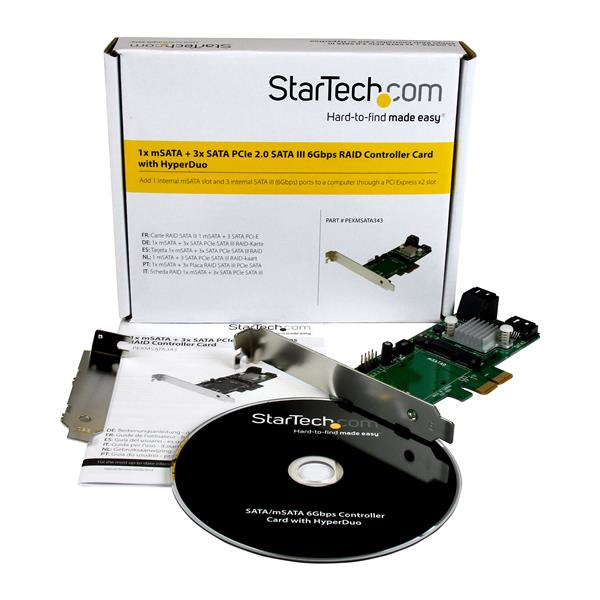

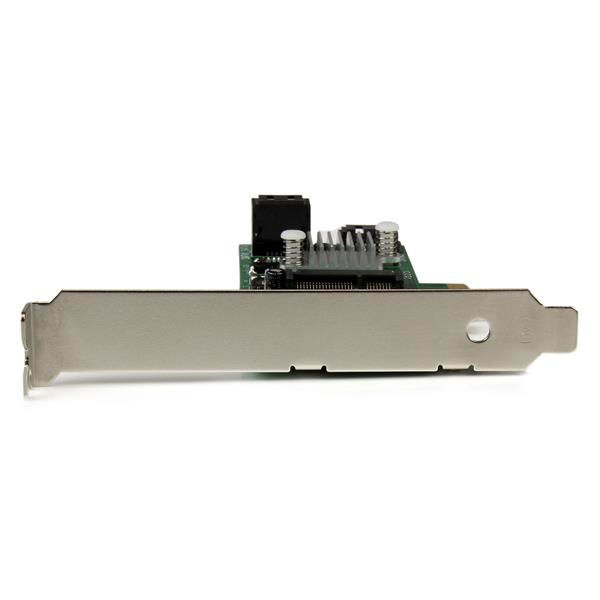

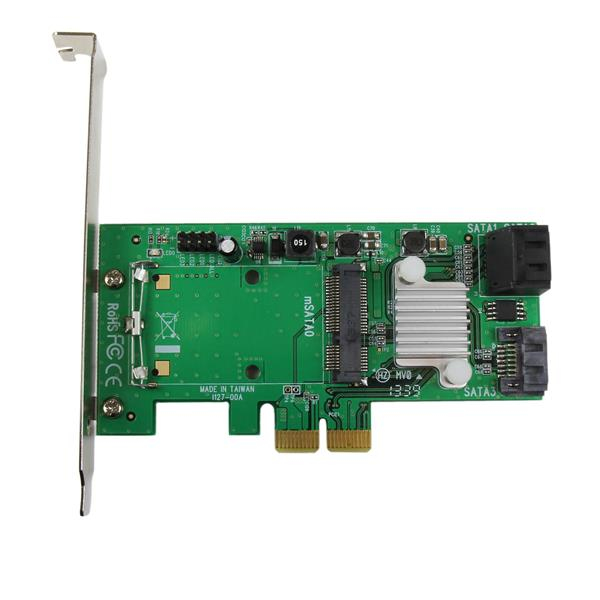

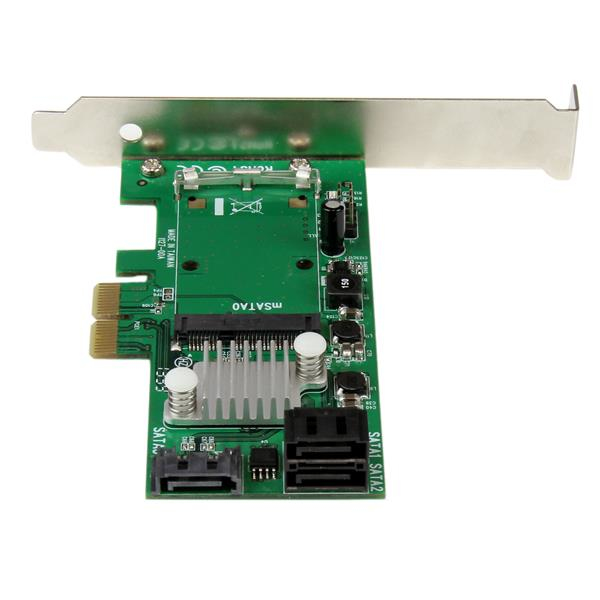

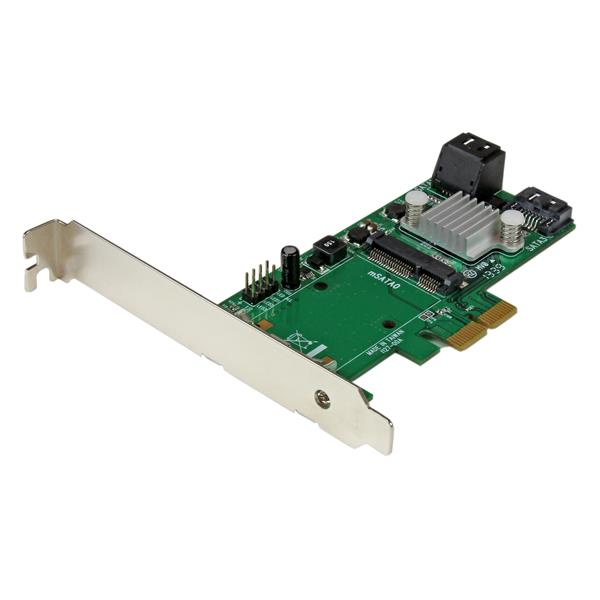

3 Port PCI Express 2.0 SATA III 6 Gbps RAID Controller Card w/ mSATA Slot and HyperDuo SSD Tiering
Model PEXMSATA343EAN 5054629476284
24 specifications
- Weight57 g
- Supported storage drive interfacesSerial ATA III
- RAID levels0, 1, JBOD
- Linux operating systems supportedYes
- Operating temperature (T-T)5 - 50 °C
- Width18 mm
Overview
- Weight
- 57 g
- Supported storage drive interfaces
- Serial ATA III
- RAID levels
- 0, 1, JBOD
- Linux operating systems supported
- Yes
- Operating temperature (T-T)
- 5 - 50 °C
- Width
- 18 mm
- Brand
- StarTech.com
- Category
- RAID Controller
- Model
- PEXMSATA343
- Part number
- PEXMSATA343
- EAN / UPC
- 5054629476284, 065030856058, 650308560586, 723856186741 +4 more
- Also known as
- StarTech.com 3 Port PCI Express 2.0 SATA III 6 Gbps RAID Controller Card w/ mSATA Slot and HyperDuo SSD Tiering
Specifications
24 specifications in 6 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Supported storage drive interfaces | Serial ATA III |
| Host interface | PCI Express x2 |
| PCI Express slots version | 2.0 |
| Internal SATA ports quantity | 3 |
Performance
| Specification | Value |
|---|---|
| RAID levels | 0, 1, JBOD |
| Data transfer rate | 6 Gbit/s |
| SSD support | Yes |
| Chipset | Marvell 88SE9230 |
| Logical block addressing (LBA) support | 48 bit |
| Certification | RoHS, CE, FCC |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Linux operating systems supported | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 20 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 18 mm |
| Depth | 115 mm |
| Height | 120 mm |
| Weight | 57 g |
| Package dimensions (WxDxH) | 140 x 175 x 30 mm |
| Package weight | 151 g |
Other features
| Specification | Value |
|---|---|
| PCI Card form factor | Full-height (low-profile) |
| Maximum supported storage capacity | 4 TB |
