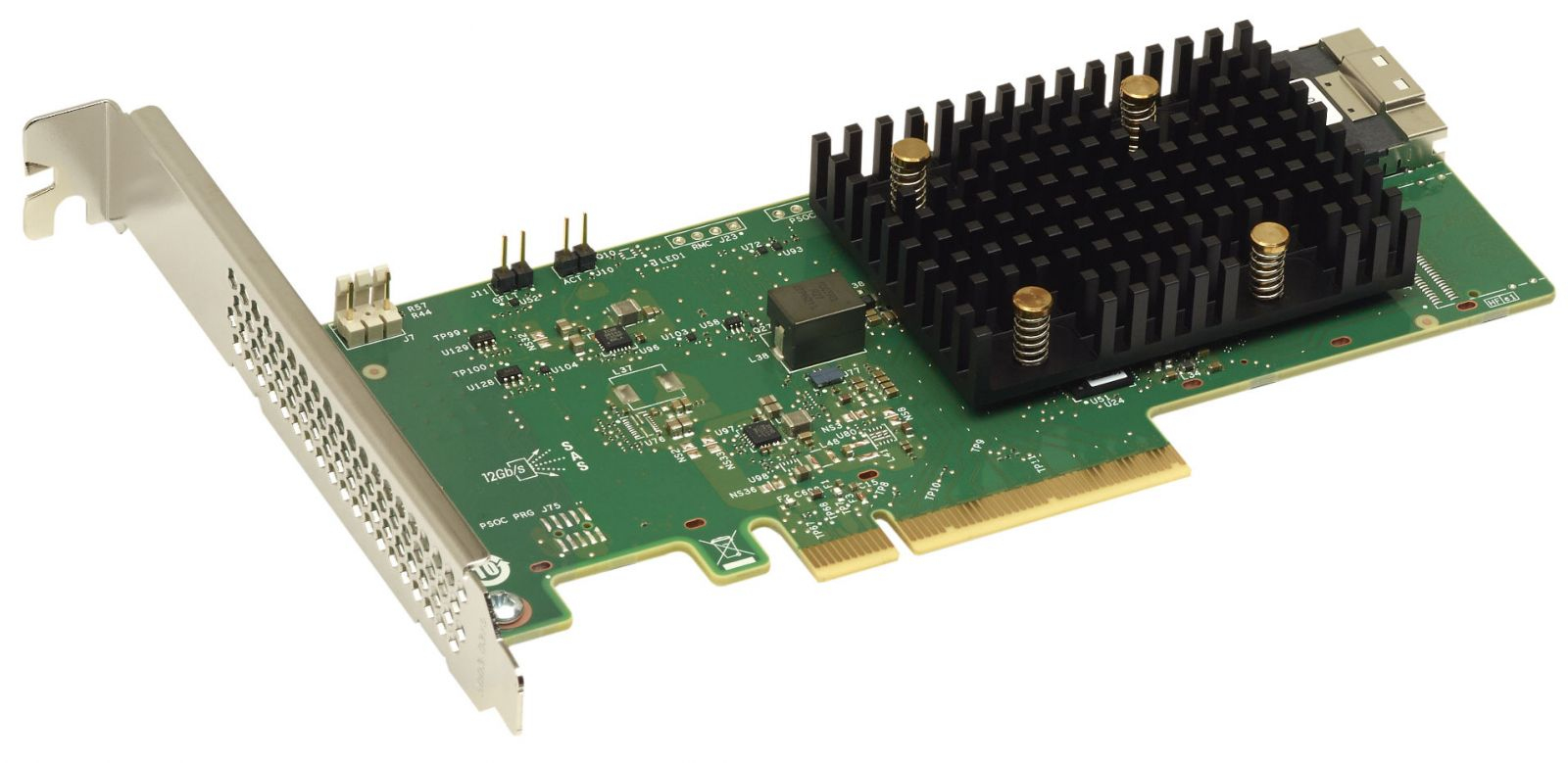

4Y37A93012 RAID controller PCI Express x8 12 Gbit/s
Model 4Y37A93012EAN 889488727469
16 specifications
- TypeLow Profile PCIe
- Supported storage drive interfacesPCI Express 4.0
- RAID levels0, 1, 10
- Operating temperature (T-T)10 - 55 °C
Overview
- Type
- Low Profile PCIe
- Supported storage drive interfaces
- PCI Express 4.0
- RAID levels
- 0, 1, 10
- Operating temperature (T-T)
- 10 - 55 °C
- Brand
- Lenovo
- Category
- RAID Controller
- Model
- 4Y37A93012
- Part number
- 4Y37A93012
- EAN / UPC
- 889488727469
- Also known as
- Lenovo 4Y37A93012 RAID controller PCI Express x8 12 Gbit/s
Specifications
16 specifications in 3 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Supported storage drive interfaces | PCI Express 4.0 |
| Host interface | PCI Express x8 |
Performance
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 10 |
| Data transfer rate | 12 Gbit/s |
| Form factor | Low Profile PCIe |
| SSD support | Yes |
| Chipset | SAS3808 |
| JBOD function | Yes |
| Number of devices supported | 8 |
| S.M.A.R.T. support | Yes |
| Hot-swap | Yes |
| Certification | USA (FCC 47 CFR part 15 Subpart B, class B) Canada (ICES -003, Class B) Taiwan (CNS 13438) Japan (VCCI V-3) Australia/New Zealand (AS/NZS CISPR 22) Korea (RRA no 2013-24 & 25) Europe (EN55022/EN55024) Safety: EN/IEC/ UL 60950; RoHS; WEEE |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 55 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
