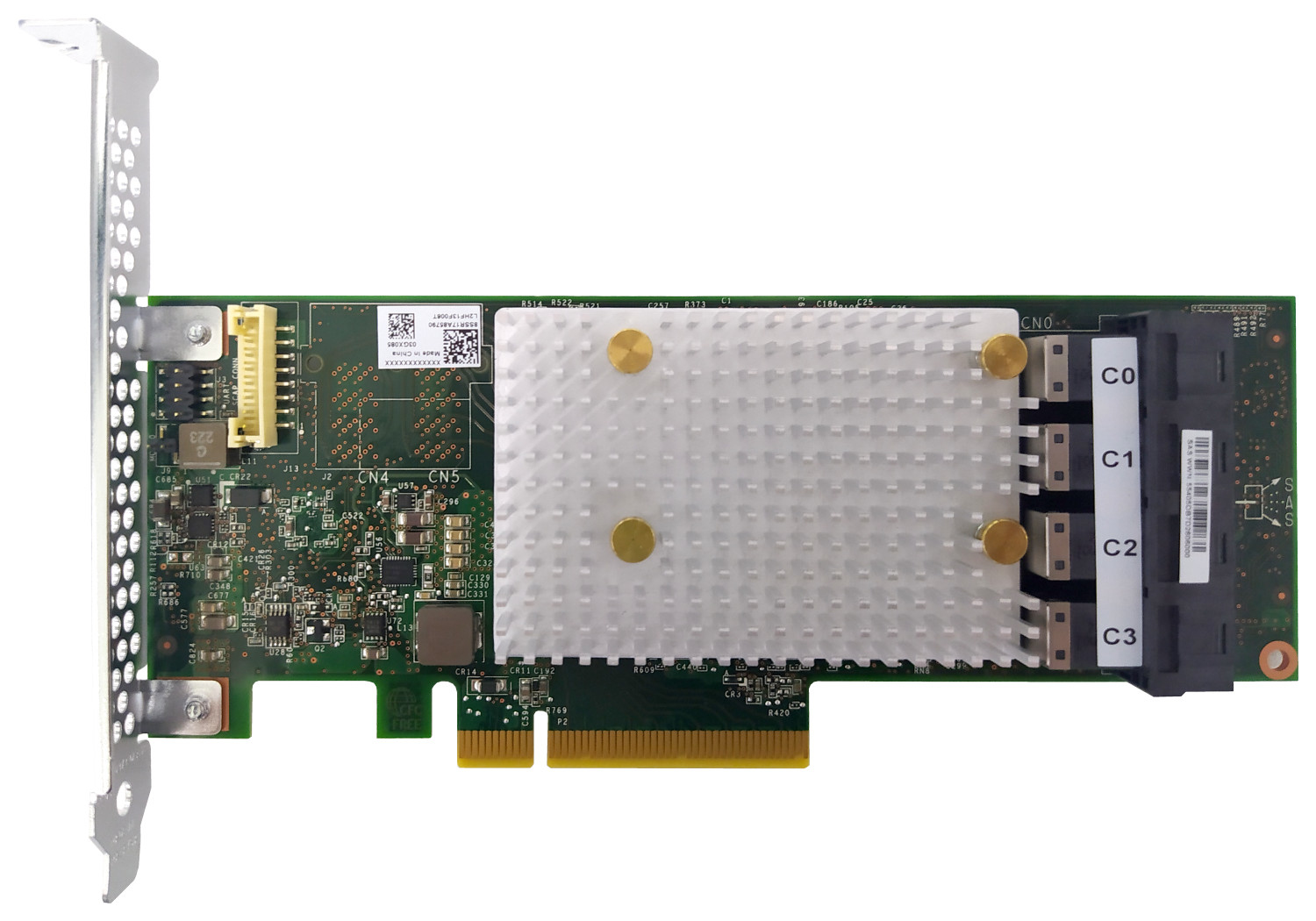

4Y37A72485 RAID controller PCI Express x8 3.0 12 Gbit/s
Model 4Y37A72485EAN 889488588039
18 specifications
- Memory4000 MB
- Supported storage drive interfacesSAS, Serial ATA
- RAID levels0, 1, 10, 5, 50, 6, 60
- Windows operating systems supportedYes
- Operating temperature (T-T)0 - 55 °C
- Width167 mm
Overview
- Memory
- 4000 MB
- Supported storage drive interfaces
- SAS, Serial ATA
- RAID levels
- 0, 1, 10, 5, 50, 6, 60
- Windows operating systems supported
- Yes
- Operating temperature (T-T)
- 0 - 55 °C
- Width
- 167 mm
- Brand
- Lenovo
- Category
- RAID Controller
- Model
- 4Y37A72485
- Part number
- 4Y37A72485
- EAN / UPC
- 889488588039
- Also known as
- Lenovo 4Y37A72485 RAID controller PCI Express x8 3.0 12 Gbit/s
Specifications
18 specifications in 5 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SAS, Serial ATA |
| Host interface | PCI Express x8 |
| PCI Express slots version | 3.0 |
Performance
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 10, 5, 50, 6, 60 |
| Data transfer rate | 12 Gbit/s |
| SSD support | Yes |
| Internal memory | 4000 MB |
| Chipset | Microchip Luxor ROC PM8236 |
| JBOD function | Yes |
| Number of devices supported | 16 |
| Hot-swap | Yes |
| Certification | FCC Part 15 Class A Australia/New Zealand (AS/NZS 3548) Canada (ICES-003 Class B) Europe (EN55032/EN55024) Japan VCCI Korea KCC RoHS compliant EN/IEC/UL 60950 USA (FCC 47 CFR part 15 Subpart B class B) |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 55 °C |
| Operating relative humidity (H-H) | 20 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 167 mm |
| Height | 64 mm |
