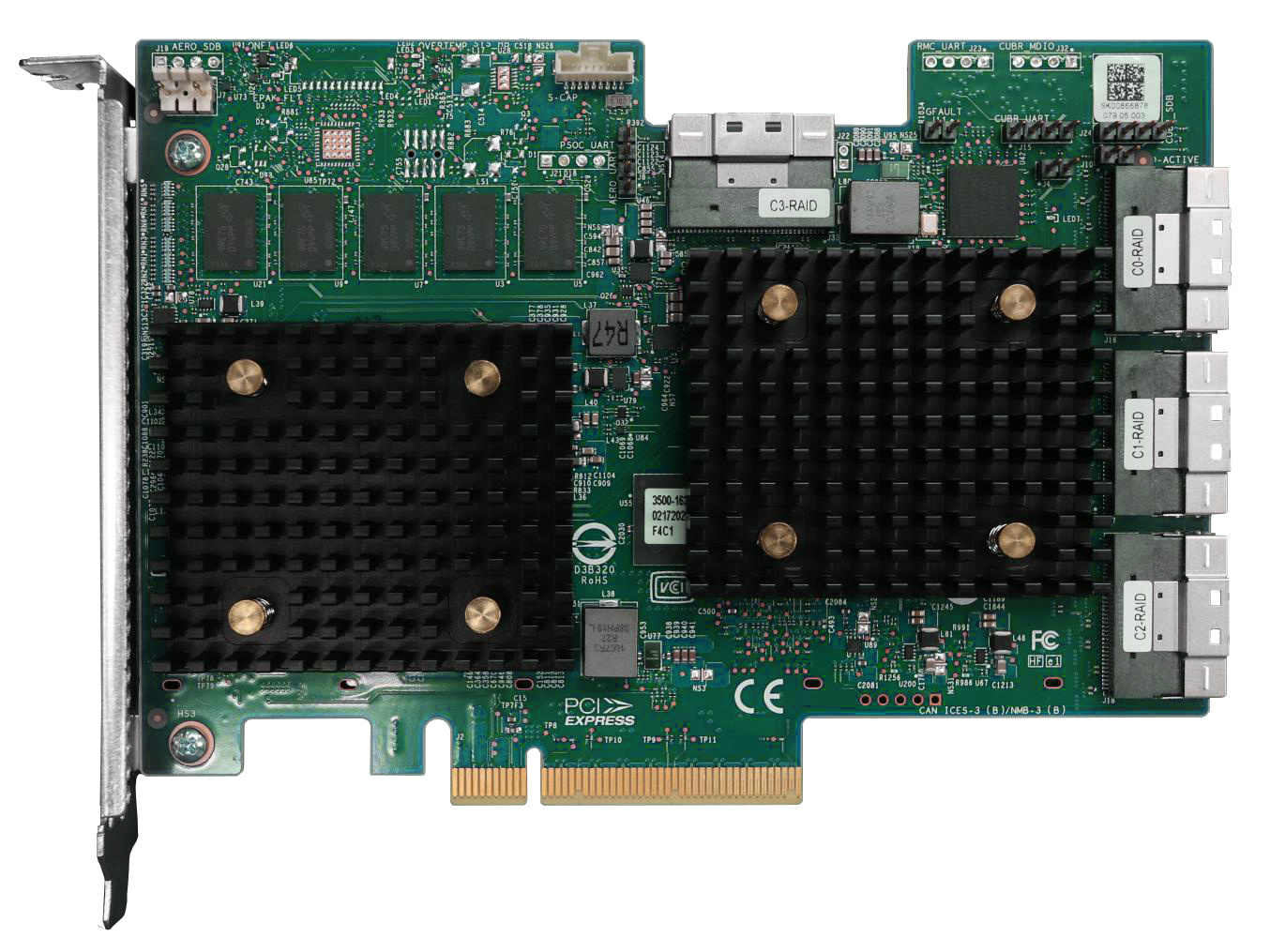

4Y37A09733 RAID controller PCI Express x8 4.0 12 Gbit/s
Model 4Y37A09733EAN 889488526529
18 specifications
- Supported storage drive interfacesSAS, Serial ATA
- RAID levels0, 1, 5, 6, 10, 50, 60
- Windows operating systems supportedYes
- Operating temperature (T-T)10 - 55 °C
Overview
- Supported storage drive interfaces
- SAS, Serial ATA
- RAID levels
- 0, 1, 5, 6, 10, 50, 60
- Windows operating systems supported
- Yes
- Operating temperature (T-T)
- 10 - 55 °C
- Brand
- Lenovo
- Category
- RAID Controller
- Model
- 4Y37A09733
- Part number
- 4Y37A09733
- EAN / UPC
- 889488526529, 8894885265294
- Also known as
- Lenovo 4Y37A09733 RAID controller PCI Express x8 4.0 12 Gbit/s
Specifications
18 specifications in 4 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SAS, Serial ATA |
| Host interface | PCI Express x8 |
| PCI Express slots version | 4.0 |
Performance
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 5, 6, 10, 50, 60 |
| Data transfer rate | 12 Gbit/s |
| SSD support | Yes |
| Chipset | MegaRAID 9367-32i 8G |
| JBOD function | Yes |
| Number of devices supported | 32 |
| S.M.A.R.T. support | Yes |
| Hot-swap | Yes |
| Certification | USA (FCC 47 CFR part 15 Subpart B, class B) Canada (ICES -003, Class B) Taiwan (CNS 13438) Japan (VCCI V-3) Australia/New Zealand (AS/NZS CISPR 22) Korea (RRA no 2013-24 & 25) Europe (EN55022/EN55024) Safety: EN/ IEC/ UL 60950 RoHS WEEE |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 55 °C |
| Storage temperature (T-T) | -40 - 105 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
