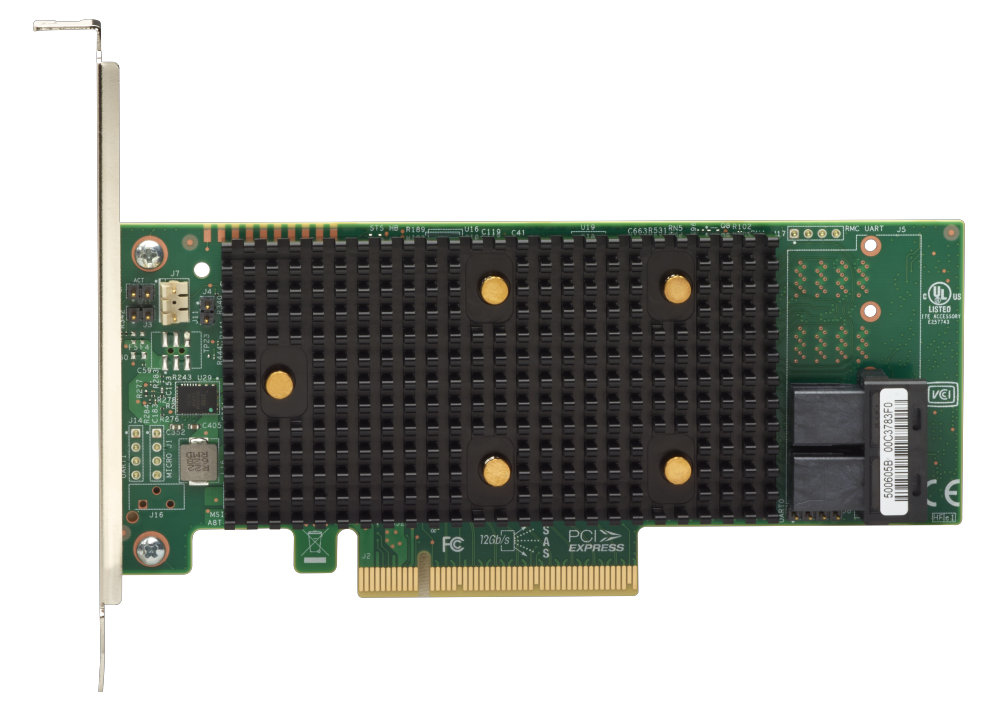

4Y37A09727 RAID controller PCI Express x8 3.0 12 Gbit/s
Model 4Y37A09727EAN 889488496693
19 specifications
- TypeLow Profile PCIe
- Supported storage drive interfacesPCI Express
- RAID levels0, 1, 10
- Linux operating systems supportedYes
- Operating temperature (T-T)10 - 55 °C
Overview
- Type
- Low Profile PCIe
- Supported storage drive interfaces
- PCI Express
- RAID levels
- 0, 1, 10
- Linux operating systems supported
- Yes
- Operating temperature (T-T)
- 10 - 55 °C
- Brand
- Lenovo
- Category
- RAID Controller
- Model
- 4Y37A09727
- Part number
- 4Y37A09727
- EAN / UPC
- 889488496693
- Also known as
- Lenovo 4Y37A09727 RAID controller PCI Express x8 3.0 12 Gbit/s
Specifications
19 specifications in 4 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Supported storage drive interfaces | PCI Express |
| Host interface | PCI Express x8 |
| PCI Express slots version | 3.0 |
| Internal SAS ports | 16 |
Performance
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 10 |
| Data transfer rate | 12 Gbit/s |
| Form factor | Low Profile PCIe |
| SSD support | Yes |
| Chipset | LSI SAS3416 |
| JBOD function | Yes |
| Number of devices supported | 16 |
| S.M.A.R.T. support | Yes |
| Hot-swap | Yes |
| Certification | FCC Part 15 Class A Australia/New Zealand (AS/NZS CISPR 22) Canada (ICES-003 Class B) Europe (EN55022/EN55024) Japan (VCCI V-3) Korea (RRA no 2013-24 & 25) RoHS compliant EN/IEC/UL 60950 Taiwan (CNS 13438) USA (FCC 47 CFR part 15 Subpart B class B) WEEE |
System requirements
| Specification | Value |
|---|---|
| Linux operating systems supported | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 55 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
