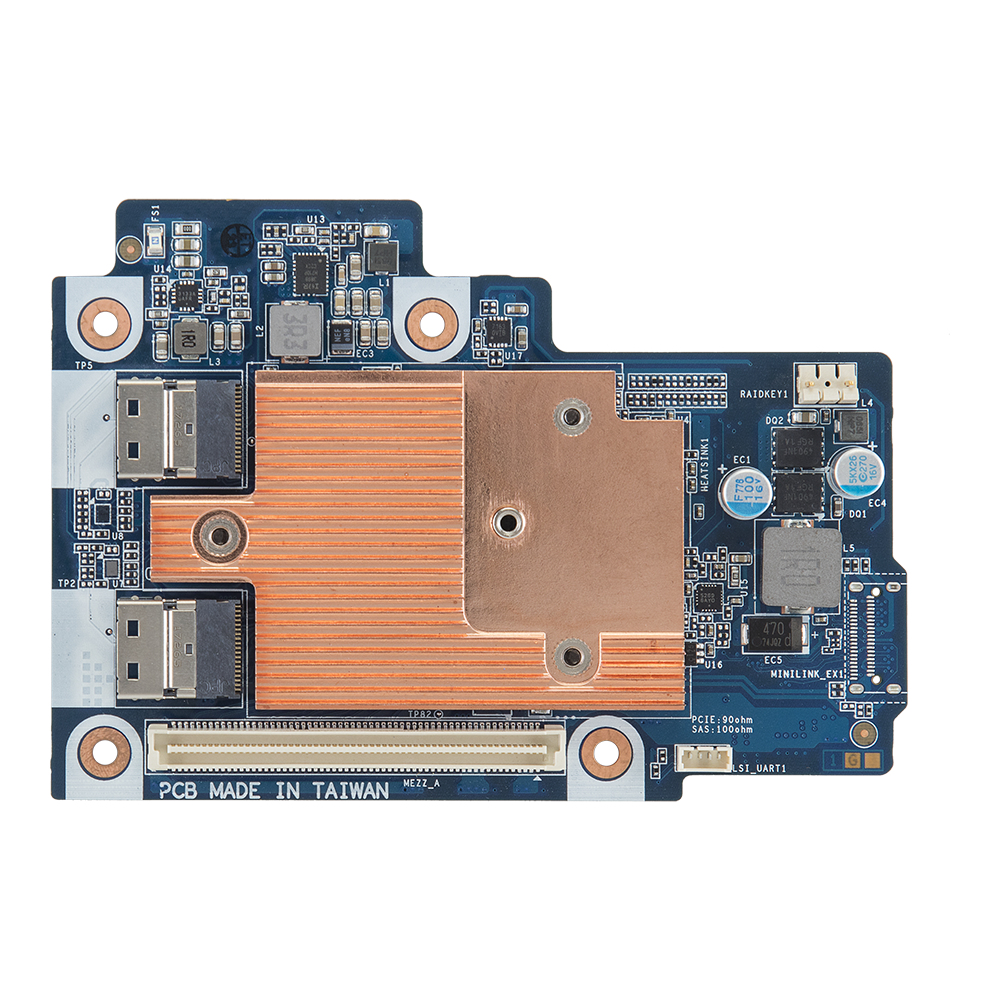

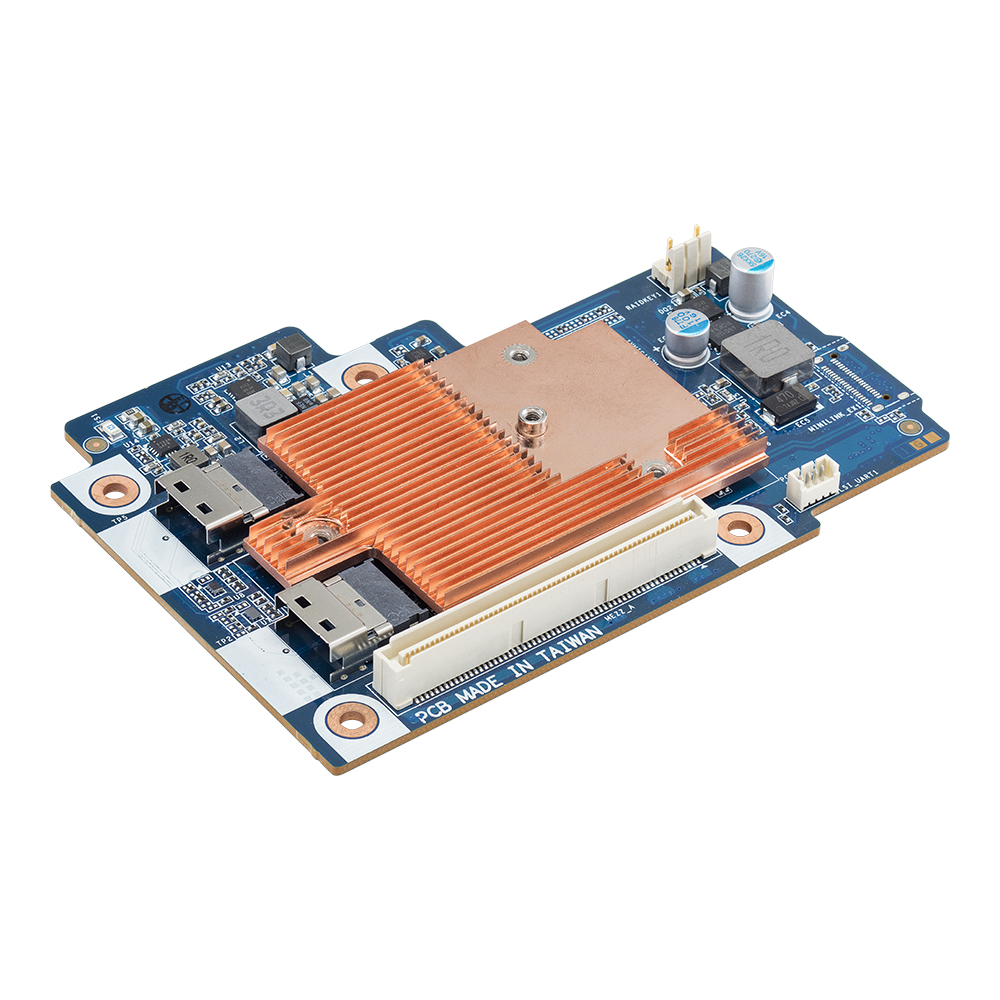

CRAO338 RAID controller PCI Express x8 3.0 12 Gbit/s
Model CRAO338Part no. 9CRAO338NR-00EAN 4719331307868
13 specifications
- TypeMezzanine Module
- Supported storage drive interfacesSAS
- RAID levels0, 1, 1E, 10
- Depth110.8 mm
Overview
- Type
- Mezzanine Module
- Supported storage drive interfaces
- SAS
- RAID levels
- 0, 1, 1E, 10
- Depth
- 110.8 mm
- Brand
- GIGABYTE
- Category
- RAID Controller
- Model
- CRAO338
- Part numbers
- 9CRAO338NR-00, 9CRAO338NR-00ACC
- EAN / UPC
- 4719331307868, 5054444310336
- Also known as
- GIGABYTE CRAO338 RAID controller PCI Express x8 3.0 12 Gbit/s
Specifications
13 specifications in 4 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SAS |
| Host interface | PCI Express x8 |
| PCI Express slots version | 3.0 |
| External mini-SAS ports | 2 |
| Internal SAS ports | 8 |
| Internal SATA ports quantity | 1 |
Performance
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 1E, 10 |
| Data transfer rate | 12 Gbit/s |
| Form factor | Mezzanine Module |
| Chipset | Broadcom SAS3008 |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 110.8 mm |
| Height | 78 mm |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733080 |
