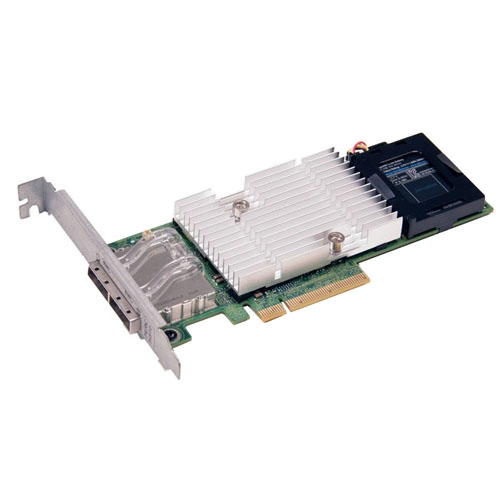

Dell PERC H810
Model PERC H810Part no. 342-3537
16 specifications
- Memory1024 MB
- Supported storage drive interfacesSAS-2
- RAID Level MigrationYes
- Built-in processorLSI LSISAS2208
- Depth167.6 mm
Overview
- Memory
- 1024 MB
- Supported storage drive interfaces
- SAS-2
- RAID Level Migration
- Yes
- Built-in processor
- LSI LSISAS2208
- Depth
- 167.6 mm
- Brand
- Dell
- Category
- RAID Controller
- Model
- PERC H810
- Part numbers
- 342-3537, 405-12103
- Also known as
- DELL PERC H810 RAID controller PCI Express x8 2.0 0.6 Gbit/s
Specifications
16 specifications in 5 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SAS-2 |
| Host interface | PCI Express x8 |
| PCI Express slots version | 2.0 |
Performance
| Specification | Value |
|---|---|
| RAID Level Migration | Yes |
| RAID levels | 0, 1, 5, 6, 10, 50, 60 |
| Data transfer rate | 0.6 Gbit/s |
| Internal memory | 1024 MB |
| Internal memory type | DDR3 |
| Memory clock speed | 1333 MHz |
| Channels quantity | 8 channels |
Processor
| Specification | Value |
|---|---|
| Built-in processor | LSI LSISAS2208 |
| Processor frequency | 800 MHz |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 167.6 mm |
| Height | 63.5 mm |
Other features
| Specification | Value |
|---|---|
| PCI Card form factor | Full-height |
| PCI Express connector | Yes |
