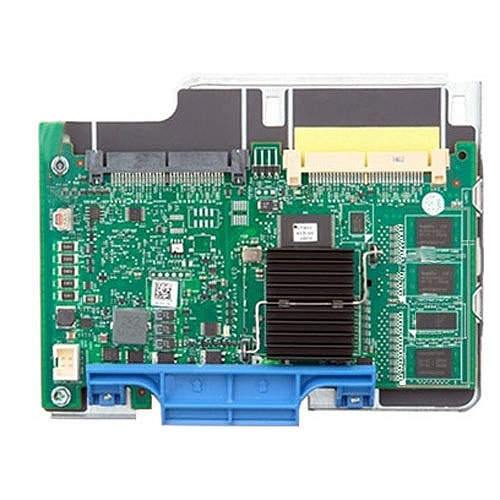

Dell PERC 6i RAID Controller

Dell PERC 6i RAID Controller

Model PERC 6i RAID ControllerPart no. 341-9953

11 specifications

Memory256 MB
Supported storage drive interfacesSAS
RAID levels0, 1, 5, 6, 10, 50, 60

See all specifications

Overview

Memory: 256 MB
Supported storage drive interfaces: SAS
RAID levels: 0, 1, 5, 6, 10, 50, 60

Brand: Dell
Category: RAID Controller
Model: PERC 6i RAID Controller
Part number: 341-9953
Also known as: DELL PERC 6i RAID controller PCI Express x8

Specifications

11 specifications in 4 groups

Ports & interfaces

Specification	Value
Supported storage drive interfaces	SAS
Host interface	PCI Express x8

Performance

Specification	Value
RAID levels	0, 1, 5, 6, 10, 50, 60
Internal memory	256 MB
Internal memory type	DDR2
Channels quantity	2 channels
Number of devices supported	32
Compatible products	DELL PowerEdge R410

System requirements

Specification	Value
Windows operating systems supported	Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64

Other features

Specification	Value
Connector(s)	2x SAS
Quantity	1
