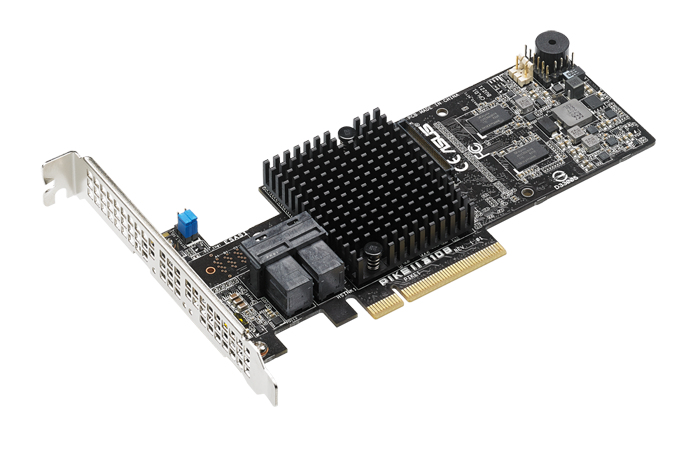

PIKE II 3108-8i/240PD
Model PIKE II 3108-8i/240PDPart no. 90SC06H0-M0UAY0EAN 4716659978299
12 specifications
- Memory1024 MB
- Supported storage drive interfacesSAS, Serial ATA
- RAID levels0, 1, 5, 6, 10, 50, 60
- Width167.6 mm
Overview
- Memory
- 1024 MB
- Supported storage drive interfaces
- SAS, Serial ATA
- RAID levels
- 0, 1, 5, 6, 10, 50, 60
- Width
- 167.6 mm
- Brand
- ASUS
- Category
- RAID Controller
- Model
- PIKE II 3108-8i/240PD
- Part number
- 90SC06H0-M0UAY0
- EAN / UPC
- 4716659978299
- Also known as
- ASUS PIKE II 3108-8i/240PD RAID controller PCI Express x8 3.0 12 Gbit/s
Specifications
12 specifications in 4 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SAS, Serial ATA |
| Host interface | PCI Express x8 |
| PCI Express slots version | 3.0 |
| Internal mini-SAS ports | 2 |
Performance
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 5, 6, 10, 50, 60 |
| Data transfer rate | 12 Gbit/s |
| Internal memory | 1024 MB |
| Internal memory type | DDR3 |
| Chipset | LSI SAS 3108 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 167.6 mm |
| Height | 50.8 mm |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733080 |
