APC NetShelter Metered Rack PDU, 0U, 3PH, 22kW

APC NetShelter Metered Rack PDU, 0U, 3PH, 22kW

230V 32A or 17.3kW 230V 24A, x30 C13 and x12 C19 outlets, IEC 309 3P+N+PE cord

Model AP8886EAN 731304289937

36 specifications

Power22000 W
Weight8.72 kg
ColourBlack
PDU typesMetered
AC outlets quantity42 AC outlet(s)
LED indicatorsYes

See all specifications

Overview

Power: 22000 W
Weight: 8.72 kg
Colour: Black
PDU types: Metered
AC outlets quantity: 42 AC outlet(s)
LED indicators: Yes

Brand: APC
Category: Power Distribution Units (PDUs)
Model: AP8886
Part number: AP8886
EAN / UPC: 731304289937, 733042899379
Also known as: APC NetShelter Metered Rack PDU, 0U, 3PH, 22kW 230V 32A or 17.3kW 230V 24A, x30 C13 and x12 C19 outlets, IEC 309 3P+N+PE cord

Specifications

36 specifications in 10 groups

Design

Specification	Value
PDU types	Metered
Rack capacity	0U
Mounting	Vertical
Product colour	Black

Ports & interfaces

Specification	Value
AC outlets quantity	42 AC outlet(s)

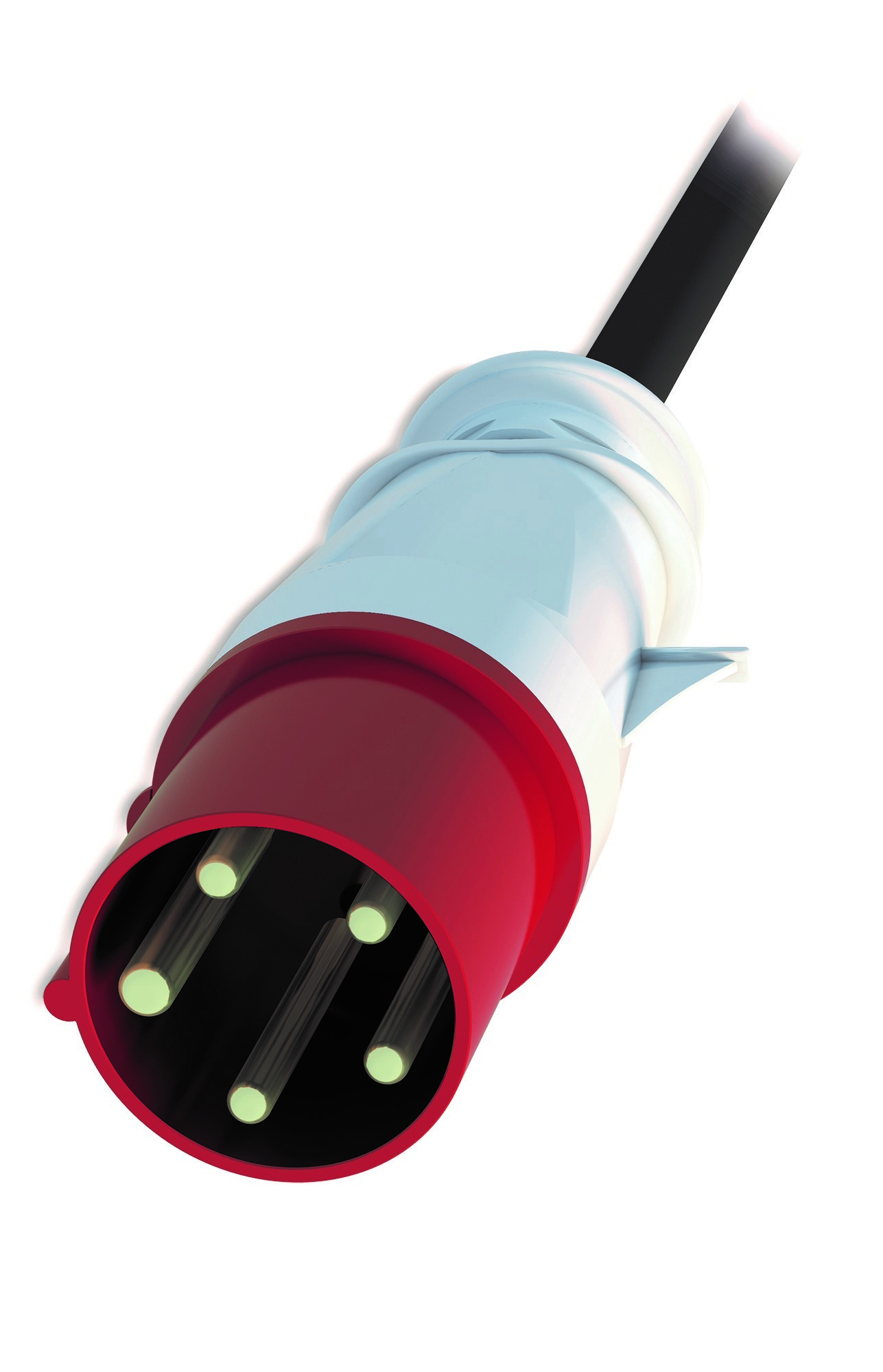

Power plug	IEC309
AC outlet types	C13 coupler, C19 coupler
Output connections	30 x IEC 320 C13 12 x IEC 320 C19

Features

Specification	Value
LED indicators	Yes
Cable length	1.83 m

Management features

Specification	Value
Monitoring	Current, Power, Voltage

Power

Specification	Value
Nominal input voltage	400 V
AC input frequency	50 - 60 Hz
Maximum current	32 A
Nominal output voltage	230 V
Load capacity	22080 VA
Maximum input current per phase	32 A
Maximum power	22000 W
Power protection features	Overload

Certificates

Specification	Value
Compliance certificates	RoHS
Certification	EN 55022 A,EN 55024, EN 61000-3-2, EN 61000-3-3, FCC 15 A, ICES-003, VCCI A, VDE REACH: No SVHCs

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-25 - 65 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m

Weight & dimensions

Specification	Value
Width	56 mm
Depth	51 mm
Height	1829 mm
Weight	8.72 kg

Packaging data

Specification	Value
Package weight	11.6 kg
Package width	170 mm
Package depth	112 mm
Package height	2050 mm

Logistics data

Specification	Value
Total carbon footprint (kg of CO2e)	57837.86
