APC NetShelter Rack PDU Advanced
APC

NetShelter Rack PDU Advanced

Model NetShelter Rack PDU AdvancedPart no. APDU10350MOEAN 731304439738

54 specifications
  • Power11500 W
  • TypeThree-phase
  • Weight7.7 kg
  • ColourBlack
  • AC outlets quantity48 AC outlet(s)
  • Daisy chainYes
See all specifications

Overview

Power
11500 W
Type
Three-phase
Weight
7.7 kg
Colour
Black
AC outlets quantity
48 AC outlet(s)
Daisy chain
Yes
Brand
APC
Model
NetShelter Rack PDU Advanced
Part numbers
APDU10350MO, APDU10250SM, APDU10350ME, APDU10151ME, APDU10250SW, APDU10250ME +2 more
EAN / UPC
731304439738, 731304439707, 731304439714, 731304439769 +4 more
Also known as
APC NetShelter Rack PDU Advanced, Switched Metered Outlet, 3Phase, 11kW 400V 16A or 11.5kW 415V 20A, 48 Outlets, IEC309

Specifications

54 specifications in 10 groups

Design

PDU typesMetered, Metered-by-outlet, Switched
TypeThree-phase
Form factorRackmount
Rack capacity0U
MountingVertical
Product colourBlack

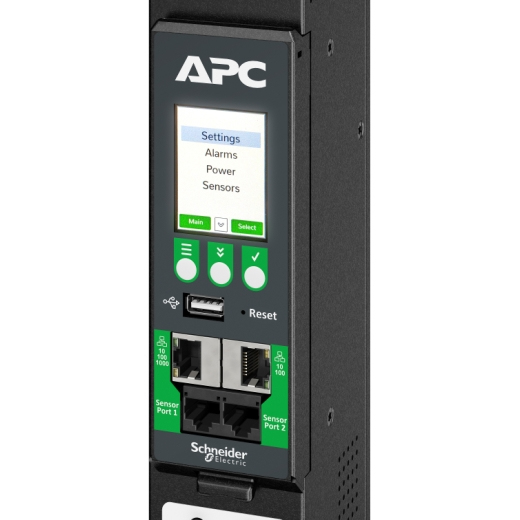

DisplayLCD
On/off switchYes
Regulatory ApprovalsCE, CSA C22.2 No 62368-1, EN 62368-1, FCC part 15 subpart B, UKCA, UL 62368-1

Ports & interfaces

AC outlets quantity48 AC outlet(s)
Power plugIEC 60309

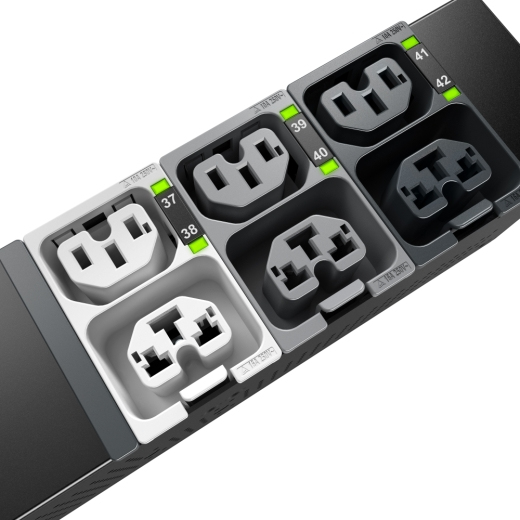

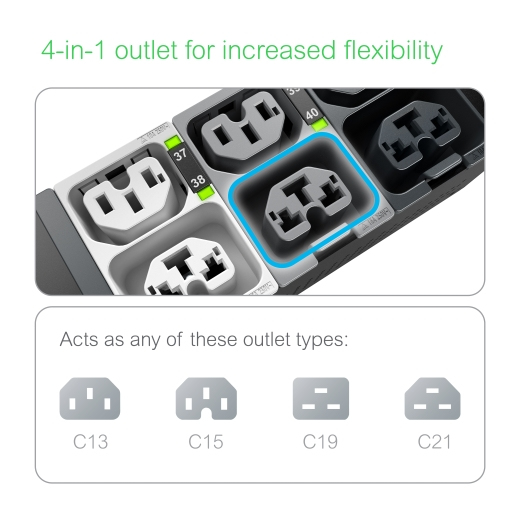

AC outlet typesC13 coupler, C15 coupler, C19 coupler, C21 coupler
Ethernet LAN (RJ-45) ports2
USB ports quantity1

Features

Daisy chainYes
Reset buttonYes
LED indicatorsActivity, Network, Power
Colour-coded outletsYes
Cable length1.8 m
Security algorithms128-bit AES, 192-bit AES, 256-bit AES, DES, MD5, SNMP, SNMPv2, SNMPv3
Password protectionYes
Compatible productsCompatible with most NetShelter SX enclosures and third-party racks

Management features

MonitoringCurrent, Humidity, Power, Temperature, Voltage
Outlet controlLock-out, Recycle, Turn off, Turn on
Firmware upgradeableYes
Firmware upgradeable viaNetwork, USB

Power

Nominal input voltage400 V
AC input frequency50 - 60 Hz
Maximum current16 A
Nominal output voltage230 V
Output voltage230 V
Load capacity11500 VA
Number of phases3
Maximum total current draw per phase16 A
Maximum power11500 W
Power protection featuresOverload
Surge protectionYes

Certificates

Compliance certificatesRoHS

Operational conditions

Operating temperature (T-T)-5 - 60 °C
Storage temperature (T-T)-25 - 65 °C
Operating relative humidity (H-H)5 - 95%
Storage relative humidity (H-H)5 - 95%
Operating altitude0 - 3048 m
Non-operating altitude0 - 15240 m
Operating temperature (T-T)23 - 140 °F

Weight & dimensions

Width56 mm
Depth75 mm
Height1490 mm
Weight7.7 kg

Packaging data

Package weight9.7 kg
Package width208 mm
Package depth116 mm
Package height1720 mm

Logistics data

Total carbon footprint (kg of CO2e)12176.66
