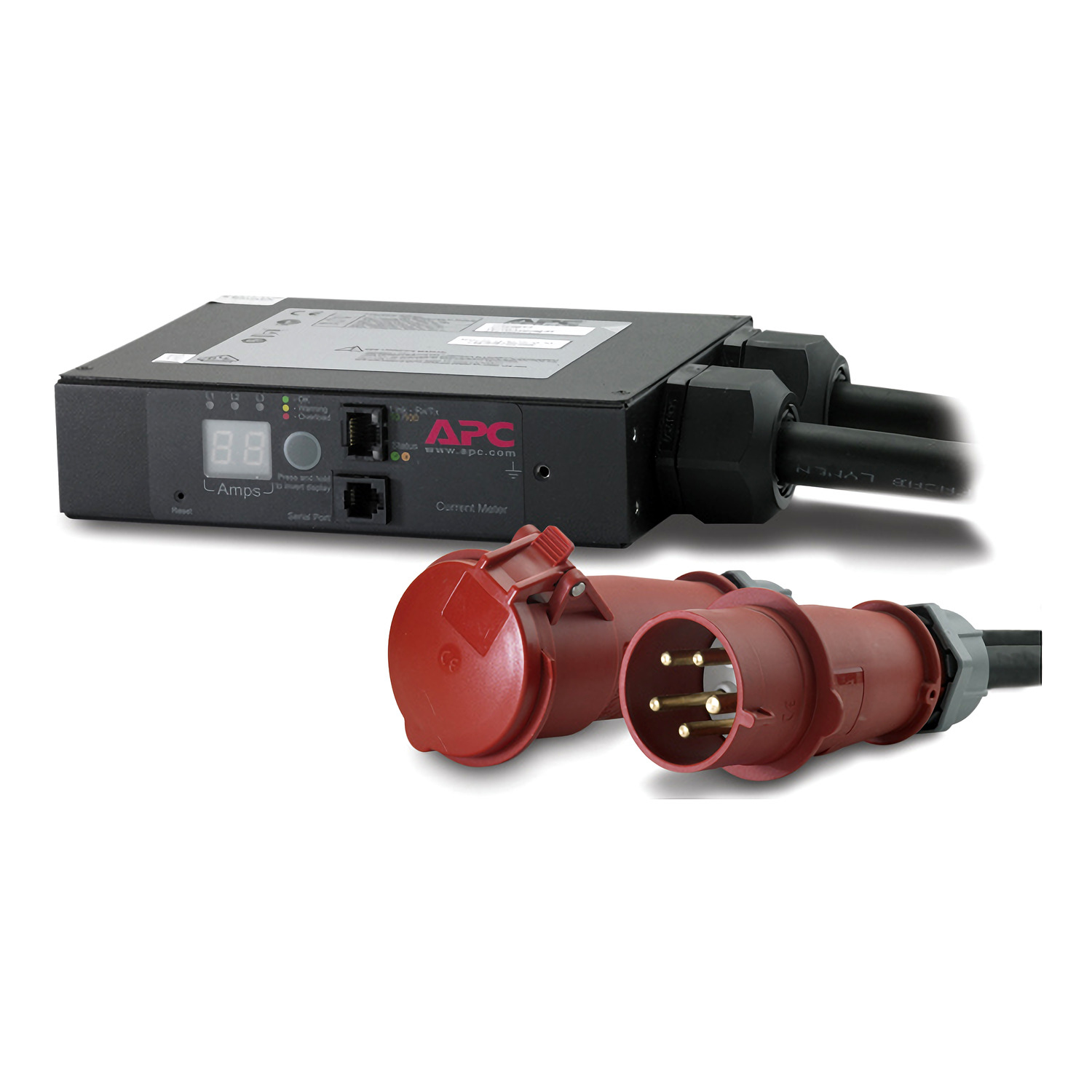

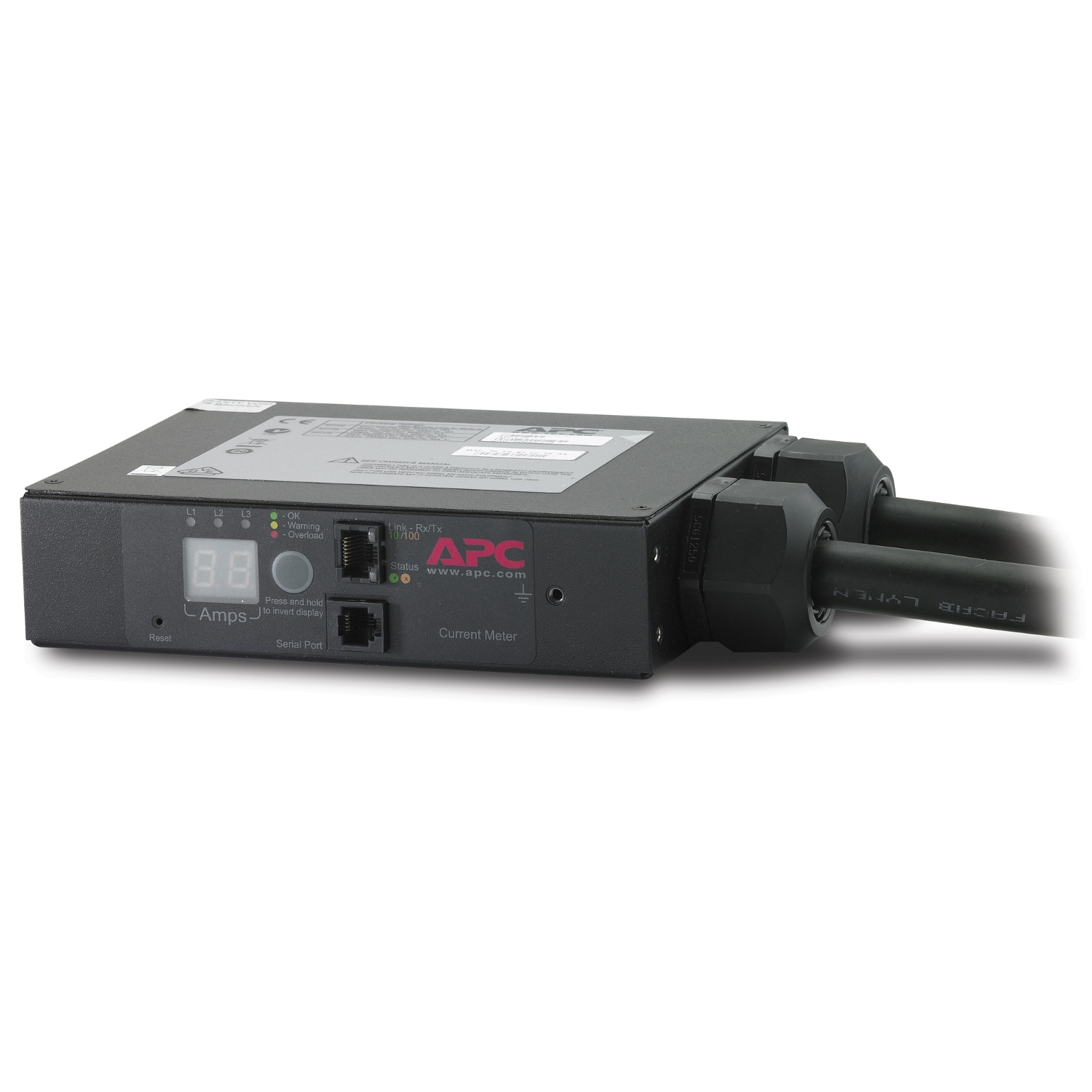

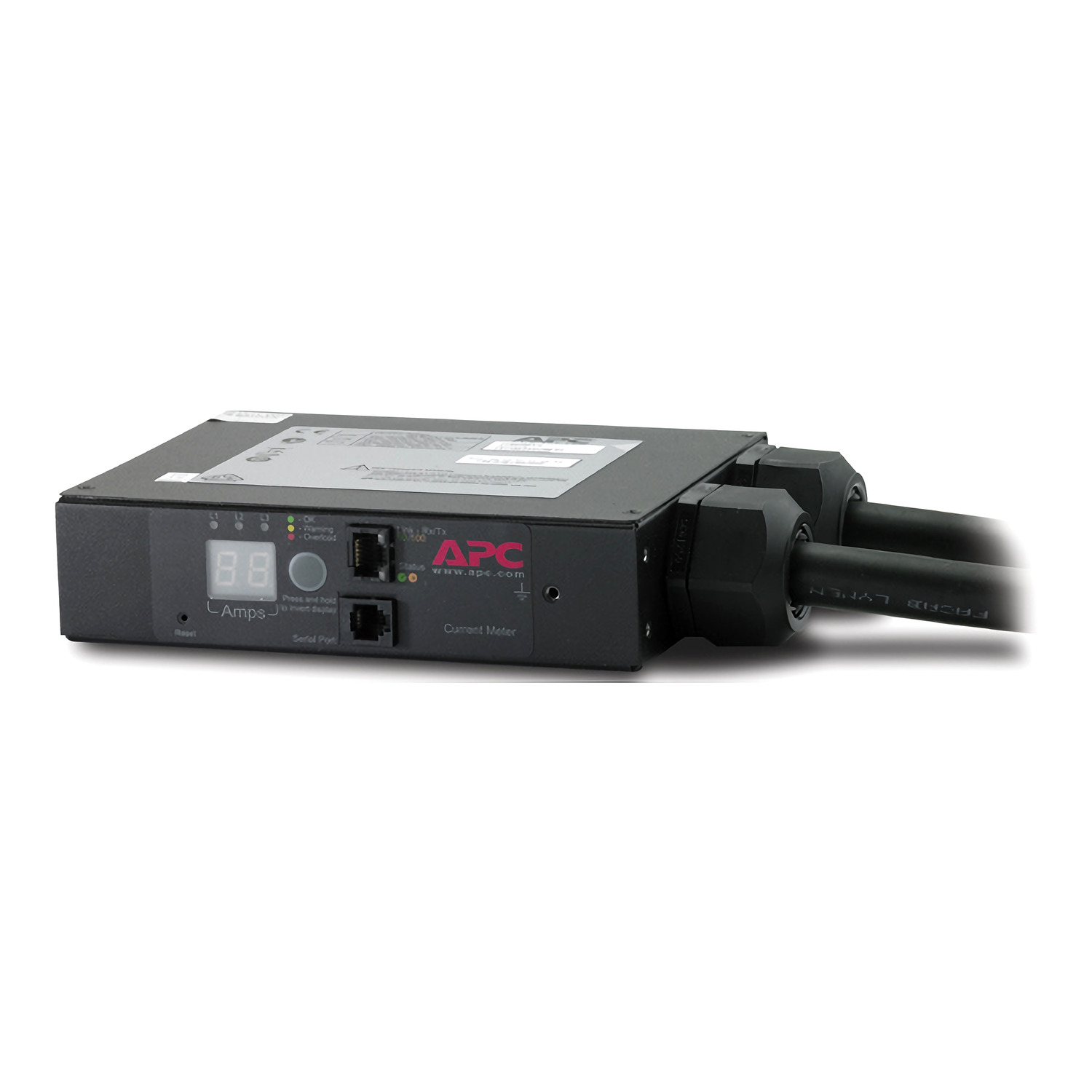

APC In-Line Current Meter, 32A

In-Line Current Meter, 32A

230V, IEC309-32A 3-PH, 3P+N+G

Model AP7175BEAN 731304331445

46 specifications

TypeThree-phase
Weight2.89 kg
ColourBlack
PDU typesMetered
AC outlets quantity1 AC outlet(s)
Cable length0.9 m

See all specifications

Overview

Type: Three-phase
Weight: 2.89 kg
Colour: Black
PDU types: Metered
AC outlets quantity: 1 AC outlet(s)
Cable length: 0.9 m

Brand: APC
Category: Power Distribution Units (PDUs)
Model: AP7175B
Part number: AP7175B
EAN / UPC: 731304331445
Also known as: APC In-Line Current Meter, 32A, 230V, IEC309-32A 3-PH, 3P+N+G

Specifications

46 specifications in 12 groups

Design

Specification	Value
PDU types	Metered
Type	Three-phase
Rack capacity	0U
Product colour	Black
Display	LED

Ports & interfaces

Specification	Value
AC outlets quantity	1 AC outlet(s)
Input connection type	IEC 60309 32 A 3P + N + E
Output connections	IEC 309 32A 3P+N+E

Features

Specification	Value
Cable length	0.9 m

Management features

Specification	Value
Monitoring	Current

Power

Specification	Value
Nominal input voltage	400 3 phases
AC input frequency	50 - 60 Hz
Maximum current	32 A
Nominal output voltage	230 V
Output voltage	230 V
Load capacity	22080 VA
Number of phases	3

Certificates

Specification	Value
Compliance certificates	RoHS, REACH, WEEE
Waste Electrical and Electronic Equipment (WEEE) compliance	Yes
Certification	AS/NZS 3548 (C-Tick) class A; C-Tick; CE; GOST; VDE

Operational conditions

Specification	Value
Operating temperature (T-T)	-5 - 45 °C
Storage temperature (T-T)	-25 - 65 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m

Weight & dimensions

Specification	Value
Width	178 mm
Depth	140 mm
Height	44 mm
Weight	2.89 kg

Packaging content

Specification	Value
Cables included	RS-232
Manual	Yes

Packaging data

Specification	Value
Package weight	3.52 kg
Package width	330 mm
Package depth	185 mm
Package height	246 mm

Technical details

Specification	Value
Packaging recycled materials	Recycled cardboard
Preferred mounting position	no preference
Removable battery	Yes
Packaging without single use plastic	No
SCIP number	1cdb2fed-a06f-4574-913d-8df8e70936b2
Sustainable packaging	No
Take-back system	No

Logistics data

Specification	Value
Country of origin	India
Customs product code (TARIC)	9030337000
Total carbon footprint (kg of CO2e)	2909.2623272707
