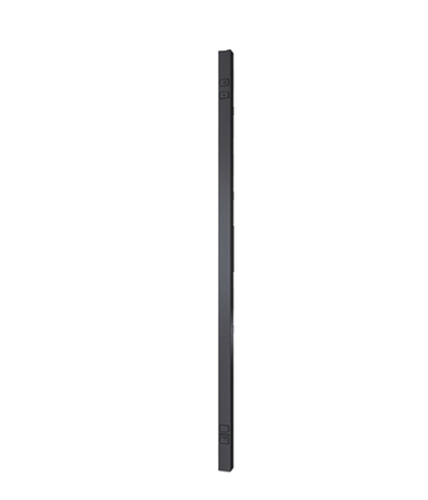

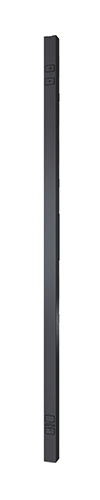

APC AP8868 power distribution unit (PDU) 42 AC outlet(s) 0U Black

APC AP8868 power distribution unit (PDU) 42 AC outlet(s) 0U Black

Model AP8868EAN 731304289920

32 specifications

Weight8.52 kg
ColourBlack
PDU typesMetered
AC outlets quantity42 AC outlet(s)
Cable length1.83 m
Nominal input voltage208 V

See all specifications

Overview

Weight: 8.52 kg
Colour: Black
PDU types: Metered
AC outlets quantity: 42 AC outlet(s)
Cable length: 1.83 m
Nominal input voltage: 208 V

Brand: APC
Category: Power Distribution Units (PDUs)
Model: AP8868
Part number: AP8868
EAN / UPC: 731304289920, 4056572606955, 7313042770712, 7313042899208
Also known as: APC AP8868 power distribution unit (PDU) 42 AC outlet(s) 0U Black

Specifications

32 specifications in 9 groups

Design

Specification	Value
PDU types	Metered
Rack capacity	0U
Mounting	Vertical
Product colour	Black

Ports & interfaces

Specification	Value
AC outlets quantity	42 AC outlet(s)

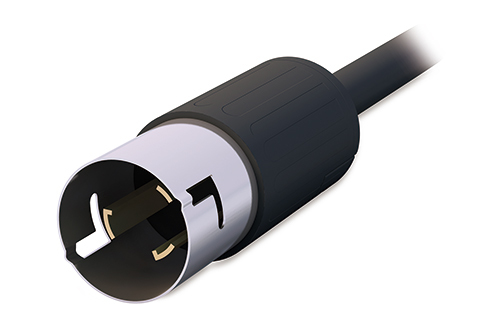

Input connection type	CS8365
Output connections	36 x IEC 320 C13 6 x IEC 320 C19

Features

Specification	Value
Cable length	1.83 m

Power

Specification	Value
Nominal input voltage	208 V
AC input frequency	50 - 60 Hz
Nominal output voltage	208 V
Load capacity	10000 VA
Maximum input current per phase	35 A
Maximum total current draw per phase	35 A
Power protection features	Overload

Certificates

Specification	Value
Compliance certificates	RoHS
Certification	cUL, EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC, ICES-003, UL, VCCI

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-25 - 65 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m

Weight & dimensions

Specification	Value
Width	56 mm
Depth	51 mm
Height	1829 mm
Weight	8.52 kg

Packaging data

Specification	Value
Package weight	11.4 kg
Package width	170 mm
Package depth	112 mm
Package height	2050 mm

Logistics data

Specification	Value
Total carbon footprint (kg of CO2e)	51678.25
