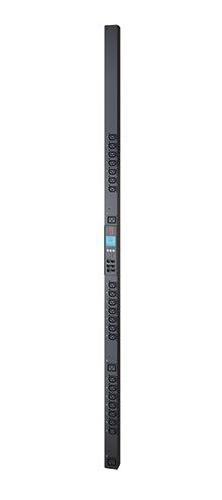

APC Rack PDU 2G, Metered by Outlet with Switching, ZeroU, 20A/208V, 16A/230V, (21) C13 & (3) C19

APC Rack PDU 2G, Metered by Outlet with Switching, ZeroU, 20A/208V, 16A/230V, (21) C13 & (3) C19

Model AP8659EAN 731304299509

33 specifications

Power3680 W
Weight6.09 kg
ColourBlack
Rack capacity0U
AC outlets quantity24 AC outlet(s)
MonitoringCurrent, Power, Voltage

See all specifications

Overview

Power: 3680 W
Weight: 6.09 kg
Colour: Black
Rack capacity: 0U
AC outlets quantity: 24 AC outlet(s)
Monitoring: Current, Power, Voltage

Brand: APC
Category: Power Distribution Units (PDUs)
Model: AP8659
Part number: AP8659
EAN / UPC: 731304299509
Also known as: APC Rack PDU 2G, Metered by Outlet with Switching, ZeroU, 20A/208V, 16A/230V, (21) C13 & (3) C19

Specifications

33 specifications in 9 groups

Design

Specification	Value
PDU types	Metered, Metered-by-outlet, Switched
Rack capacity	0U
Mounting	Vertical
Product colour	Black

Ports & interfaces

Specification	Value
AC outlets quantity	24 AC outlet(s)
AC outlet types	C13 coupler, C19 coupler

Management features

Specification	Value
Monitoring	Current, Power, Voltage
Outlet control	Lock-out, Recycle, Turn off, Turn on

Power

Specification	Value
Nominal input voltage	200-230 V
AC input frequency	50 - 60 Hz
Maximum current	16 A
Nominal output voltage	200-230 V
Load capacity	3680 VA
Maximum input current per phase	16 A
Maximum total current draw per phase	16 A
Maximum power	3680 W

Certificates

Specification	Value
Compliance certificates	RoHS
Certification	EN 55022 A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC 15 A, ICES-003, PSE, UL, VCCI A, VDE

Operational conditions

Specification	Value
Operating temperature (T-T)	-5 - 45 °C
Storage temperature (T-T)	-25 - 65 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m

Weight & dimensions

Specification	Value
Width	56 mm
Depth	51 mm
Height	1829 mm
Weight	6.09 kg

Packaging data

Specification	Value
Package weight	8.36 kg
Package width	162 mm
Package depth	117 mm
Package height	2038 mm

Logistics data

Specification	Value
Total carbon footprint (kg of CO2e)	537.26
