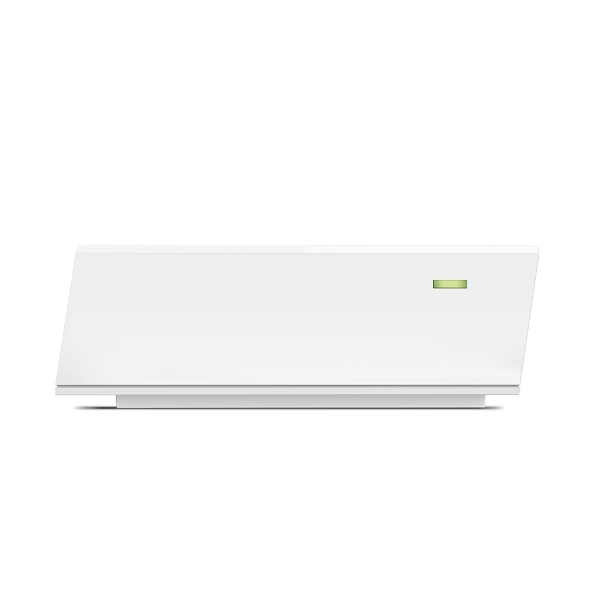

48V Passive PoE Adapter
Model TL-POE4824GPart no. POE4824G(UN)EAN 6935364082611
33 specifications
- ColourWhite
- Ethernet interface typeGigabit Ethernet
- Ethernet LAN (RJ-45) ports2
- Power over Ethernet (PoE) voltage48 V
- Operating temperature (T-T)0 - 40 °C
- Width110 mm
Overview
- Colour
- White
- Ethernet interface type
- Gigabit Ethernet
- Ethernet LAN (RJ-45) ports
- 2
- Power over Ethernet (PoE) voltage
- 48 V
- Operating temperature (T-T)
- 0 - 40 °C
- Width
- 110 mm
- Brand
- TP-Link
- Category
- PoE Adapter
- Model
- TL-POE4824G
- Part numbers
- POE4824G(UN), POE4824G
- EAN / UPC
- 6935364082611, 840460604598, 845973082604, 1210002611138 +3 more
- Also known as
- TP-Link 48V Passive PoE Adapter
Specifications
33 specifications in 10 groups
Network
| Specification | Value |
|---|---|
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000 |
| Power over Ethernet (PoE) | Yes |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e, Cat6 |
Features
| Specification | Value |
|---|---|
| Product colour | White |
| Wall mountable | Yes |
| Plug and Play | Yes |
| Maximum operating distance | 100 m |
| LED indicators | Power |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) voltage | 48 V |
| Output power | 24 W |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | FCC, CE, RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating temperature (T-T) | 32 - 104 °F |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 110 mm |
| Depth | 57 mm |
| Height | 38.8 mm |
Packaging content
| Specification | Value |
|---|---|
| Number of products included | 1 pc(s) |
| Wall mounting kit | Yes |
| Power cord included | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 65 mm |
| Package depth | 198 mm |
| Package height | 65 mm |
| Package weight | 370 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85044095 |
