1-Port 10Gbps PoE++ Injector
60W, 2.5/5/10G Ethernet/10/100/1000M, PoE++ (802.3af/at/bt), Wall Mountable, Unmanaged Inline Power Over Ethernet, TA
Model AF31XC-POE-INJECTOREAN 065030905794
44 specifications
- Weight198 g
- ColourBlack
- Cabling technology1000/10000
- Ethernet LAN (RJ-45) ports2
- AC adapter input voltage100 - 240 V
- Operating temperature (T-T)0 - 40 °C
Overview
- Weight
- 198 g
- Colour
- Black
- Cabling technology
- 1000/10000
- Ethernet LAN (RJ-45) ports
- 2
- AC adapter input voltage
- 100 - 240 V
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- StarTech.com
- Category
- PoE Adapter
- Model
- AF31XC-POE-INJECTOR
- Part number
- AF31XC-POE-INJECTOR
- EAN / UPC
- 065030905794
- Also known as
- StarTech.com 1-Port 10Gbps PoE++ Injector, 60W, 2.5/5/10G Ethernet/10/100/1000M, PoE++ (802.3af/at/bt), Wall Mountable, Unmanaged Inline Power Over Ethernet, TA
Specifications
44 specifications in 10 groups
Network
| Specification | Value |
|---|---|
| Ethernet interface type | 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000,2500,5000,10000 Mbit/s |
| Cabling technology | 1000/10000 |
| Power over Ethernet (PoE) | Yes |
| Auto MDI/MDI-X | Yes |
| Chipset | SkyWorks - Si3471A-A01 |
| Networking standards | IEEE 802.3ab, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u |
| Web-based management | No |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Plastic |
| Wall mountable | Yes |
| Maximum operating distance | 100 m |
| LED indicators | Yes |
| Jumbo frames | 9000 |
| Jumbo frames support | Yes |
| Auto-negotiation | Yes |
| Power protection features | Over current, Over voltage, Short circuit |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
Power
| Specification | Value |
|---|---|
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 54 V |
| Input current | 1.5 A |
| Output current | 1.11 A |
| Total Power over Ethernet (PoE) budget | 60 W |
| Suitable for use in country/location | United States |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | Trade Agreements Act (TAA), UL |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -30 - 80 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 58 mm |
| Depth | 122 mm |
| Height | 34 mm |
| Weight | 198 g |
Packaging content
| Specification | Value |
|---|---|

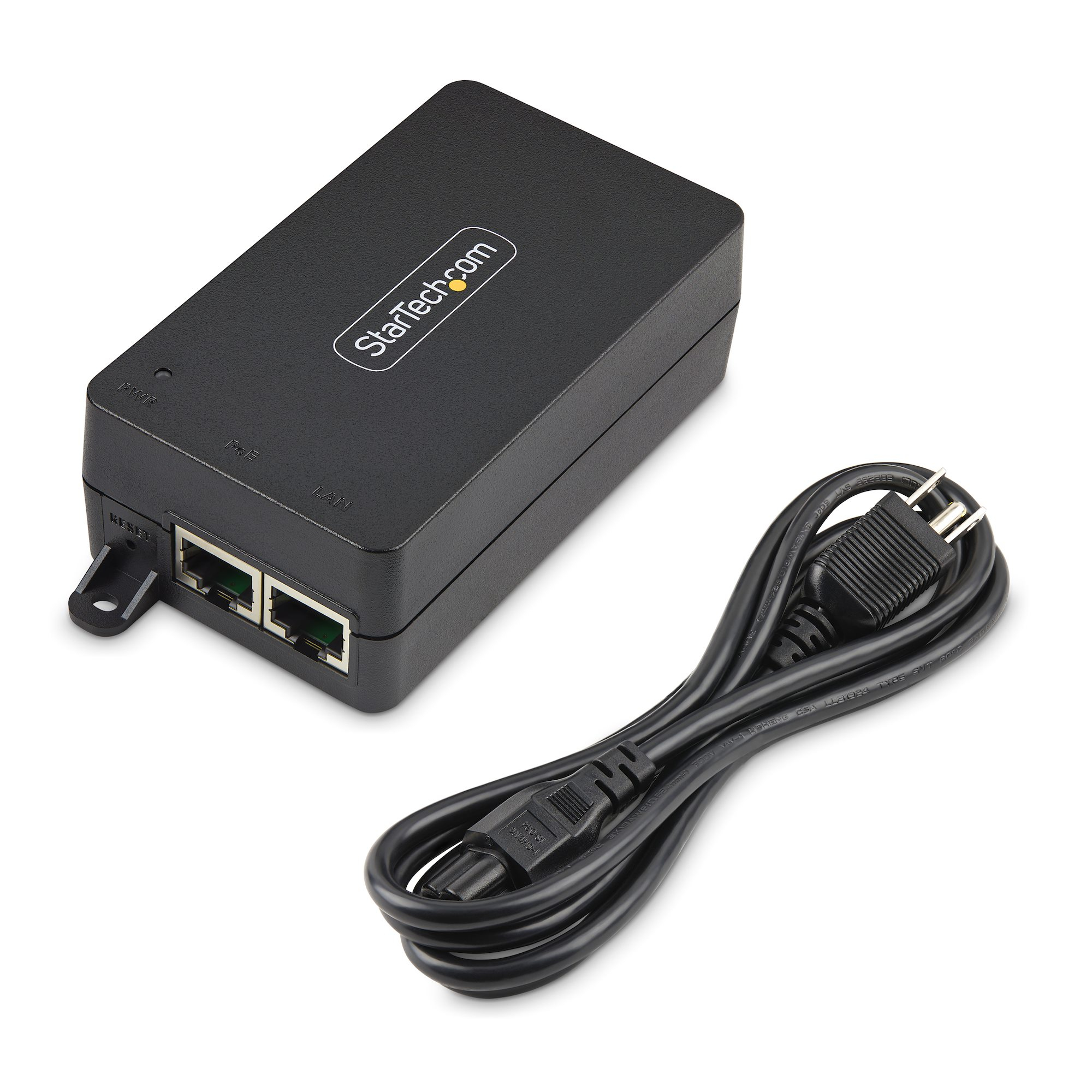

| Power cord included | Yes |
| Quick installation guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 210 mm |
| Package depth | 124 mm |
| Package height | 51 mm |
| Package weight | 500 g |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 522 mm |
| Master (outer) case length | 286 mm |
| Master (outer) case height | 455 mm |
| Products per master (outer) case | 40 pc(s) |
