4-Port Gigabit Midspan, PoE+ Injector, 802.3at and 802.3af, Wall-Mountable Power over Ethernet Midspan, Up to 30.8 Watts per port, Plug-and-Play, T
Model POEINJ4G-USEAN 065030922562
44 specifications
- Weight202 g
- ColourBlack
- Ethernet interface type2 Gigabit Ethernet
- Ethernet LAN (RJ-45) ports8
- Power over Ethernet (PoE) voltage54 V
- Operating temperature (T-T)0 - 50 °C
Overview
- Weight
- 202 g
- Colour
- Black
- Ethernet interface type
- 2 Gigabit Ethernet
- Ethernet LAN (RJ-45) ports
- 8
- Power over Ethernet (PoE) voltage
- 54 V
- Operating temperature (T-T)
- 0 - 50 °C
- Brand
- StarTech.com
- Category
- PoE Adapter
- Model
- POEINJ4G-US
- Part number
- POEINJ4G-US
- EAN / UPC
- 065030922562
- Also known as
- StarTech.com 4-Port Gigabit Midspan, PoE+ Injector, 802.3at and 802.3af, Wall-Mountable Power over Ethernet Midspan, Up to 30.8 Watts per port, Plug-and-Play, T
Specifications
44 specifications in 10 groups
Network
| Specification | Value |
|---|---|
| Ethernet interface type | 2 Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000,2000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE+ |
| Cable types supported | Cat5e, Cat6, Cat6a |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Wall mountable | Yes |
| Plug and Play | Yes |
| Maximum operating distance | 100 m |
| LED indicators | PoE, Power |
| Mean time between failures (MTBF) | 50000 h |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 8 |
| RJ-45 input ports | 4 |
| RJ-45 output ports | 4 |

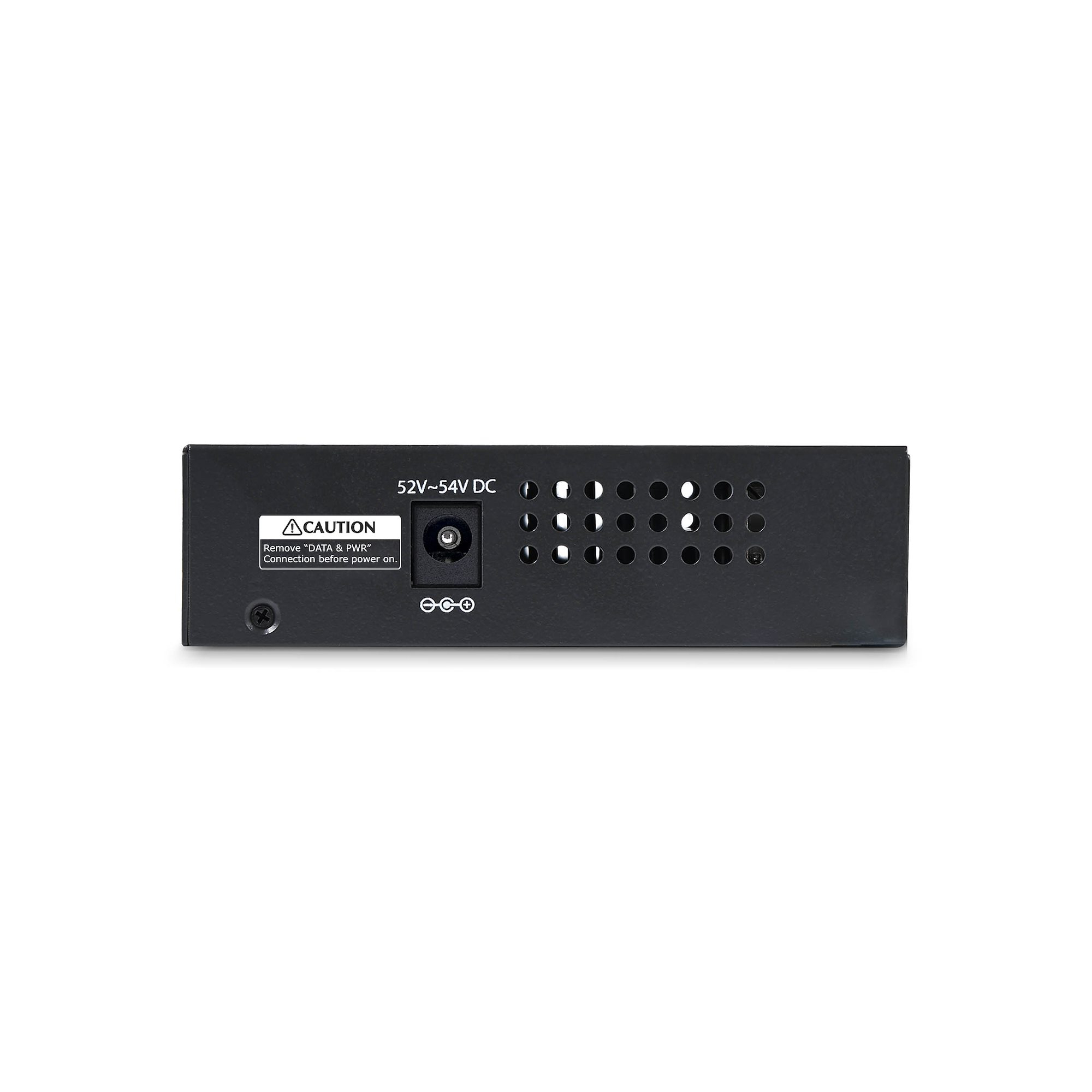

| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) voltage | 54 V |
| Input voltage | 100 - 240 V |
| Input current | 2 A |
| Output current | 2.4 A |
| Power consumption (typical) | 129.6 W |
| Power over Ethernet (PoE) power per port | 30.8 W |
| Power plug type | Type M |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS, Trade Agreements Act (TAA) |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -10 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 70.3 mm |
| Depth | 94 mm |
| Height | 26.2 mm |
| Weight | 202 g |
Packaging content
| Specification | Value |
|---|---|
| Number of products included | 1 pc(s) |

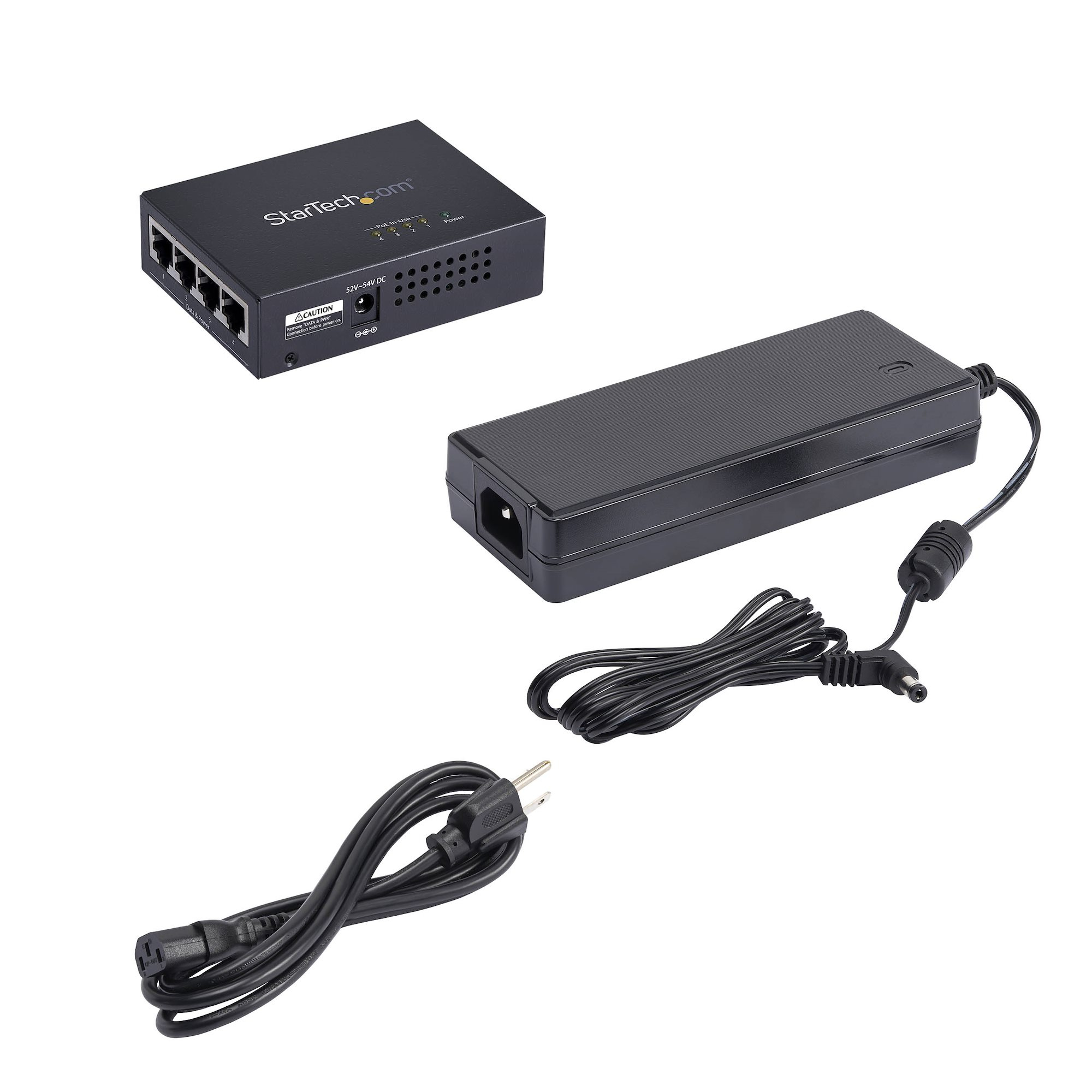

| AC adapter included | Yes |
| Power cord included | Yes |
| Quick installation guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 300 mm |
| Package depth | 170 mm |
| Package height | 90 mm |
| Package weight | 1.4 kg |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 370 mm |
| Master (outer) case length | 325 mm |
| Master (outer) case height | 470 mm |
| Products per master (outer) case | 10 pc(s) |
