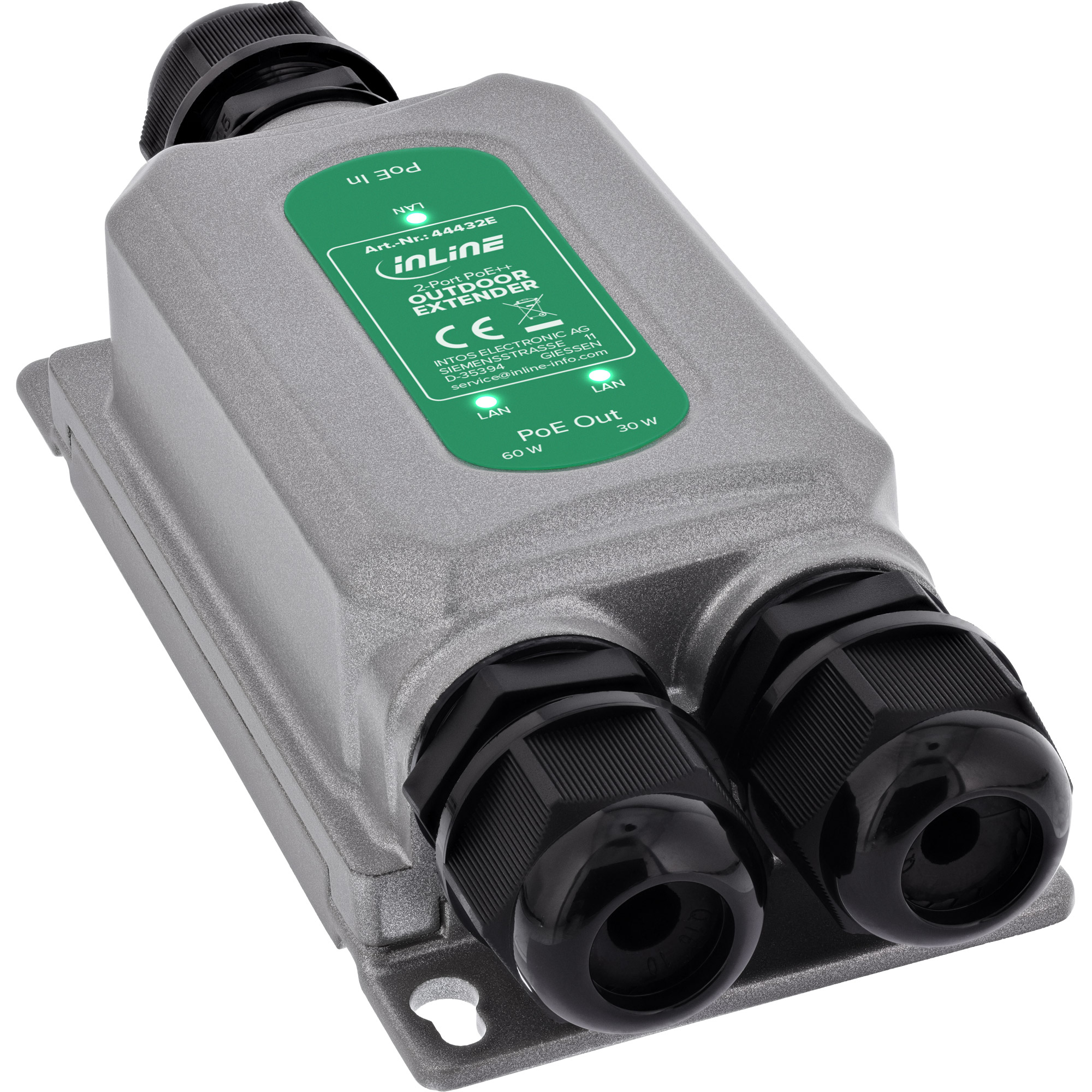

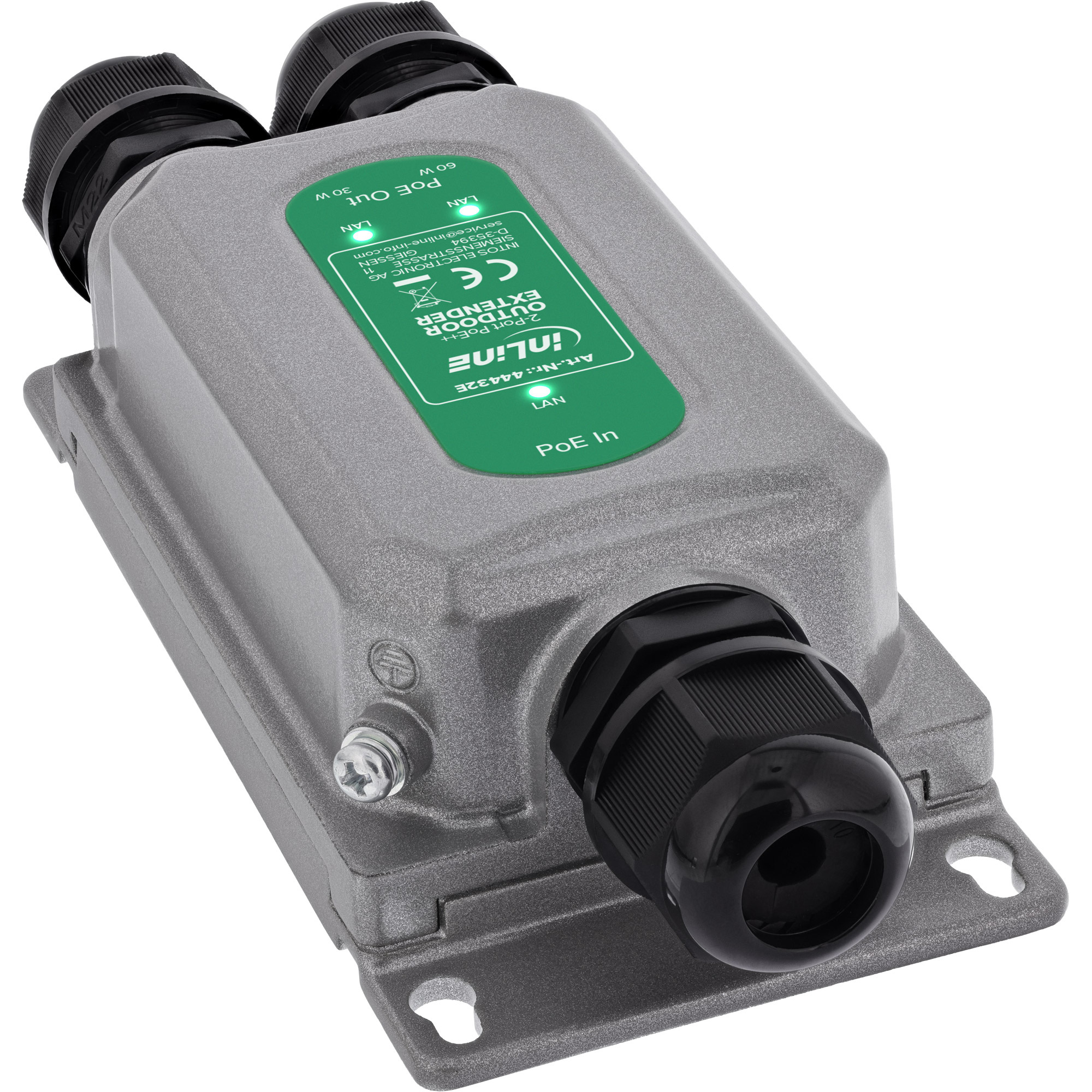

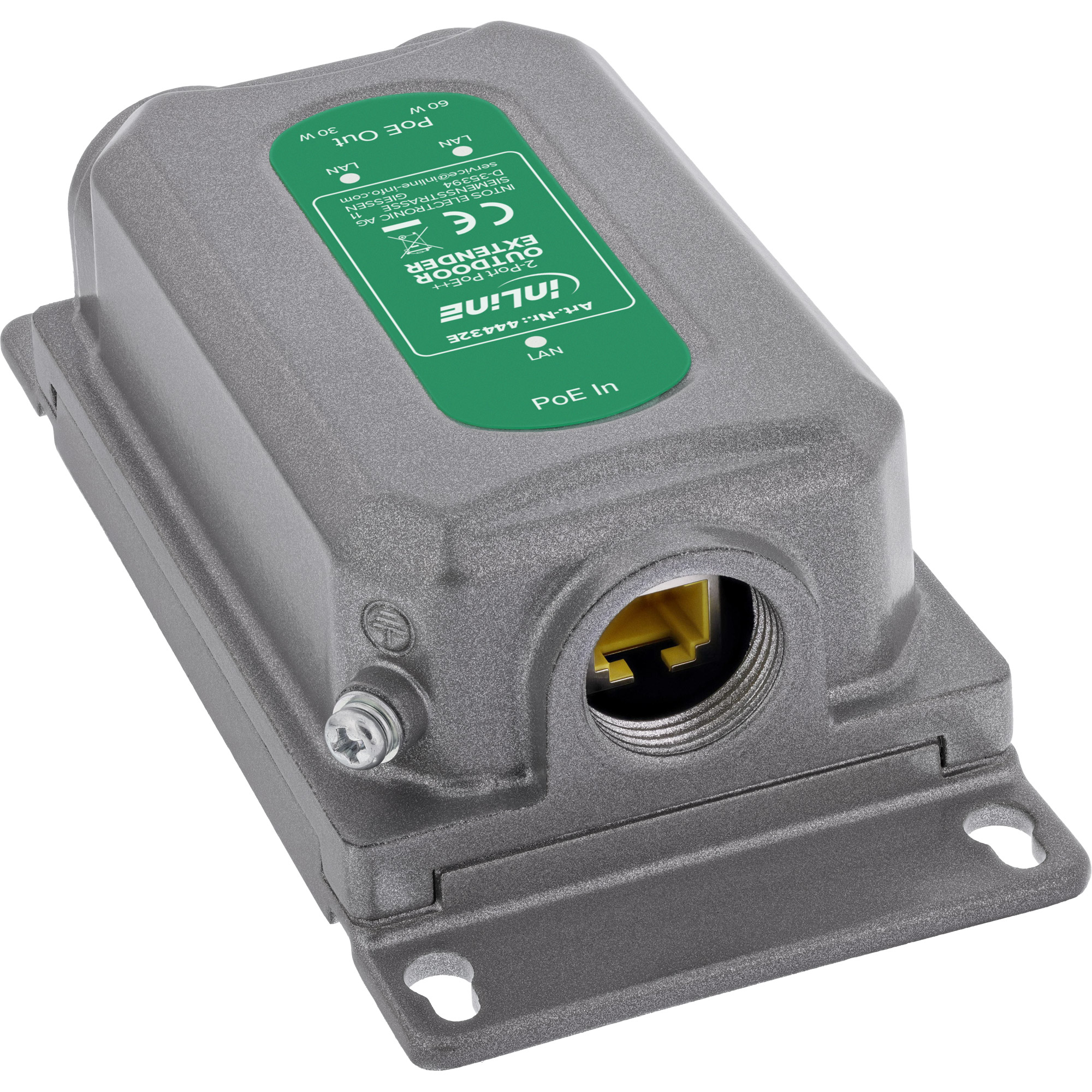

44432E PoE adapter Gigabit Ethernet
55 V
Model 44432EEAN 4043718352364
49 specifications
- Weight417 g
- ColourGrey
- Ethernet interface typeGigabit Ethernet
- Ethernet LAN (RJ-45) ports3
- Power over Ethernet (PoE) voltage55 V
- Operating relative humidity (H-H)10 - 90%
Overview
- Weight
- 417 g
- Colour
- Grey
- Ethernet interface type
- Gigabit Ethernet
- Ethernet LAN (RJ-45) ports
- 3
- Power over Ethernet (PoE) voltage
- 55 V
- Operating relative humidity (H-H)
- 10 - 90%
- Brand
- InLine
- Category
- PoE Adapter
- Model
- 44432E
- Part number
- 44432E
- EAN / UPC
- 4043718352364
- Also known as
- InLine 44432E PoE adapter Gigabit Ethernet 55 V
Specifications
49 specifications in 10 groups
Network
| Specification | Value |
|---|---|
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000 |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE++ (4PPoE) |
| Cable types supported | Cat5, Cat5e, Cat6+, Cat6, Cat6a, Cat6e, Cat7, Cat7e, Cat8, Cat8.1 |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
Features
| Specification | Value |
|---|---|
| Product colour | Grey |
| Wall mountable | Yes |
| Easy to install | Yes |
| Rack mounting | No |
| Plug and Play | Yes |
| Surge protection | Yes |
| USB Power Delivery (USB PD) | No |
| Maximum operating distance | 100 m |
| LED indicators | LAN |
| Power protection features | Over voltage, Static electricity |

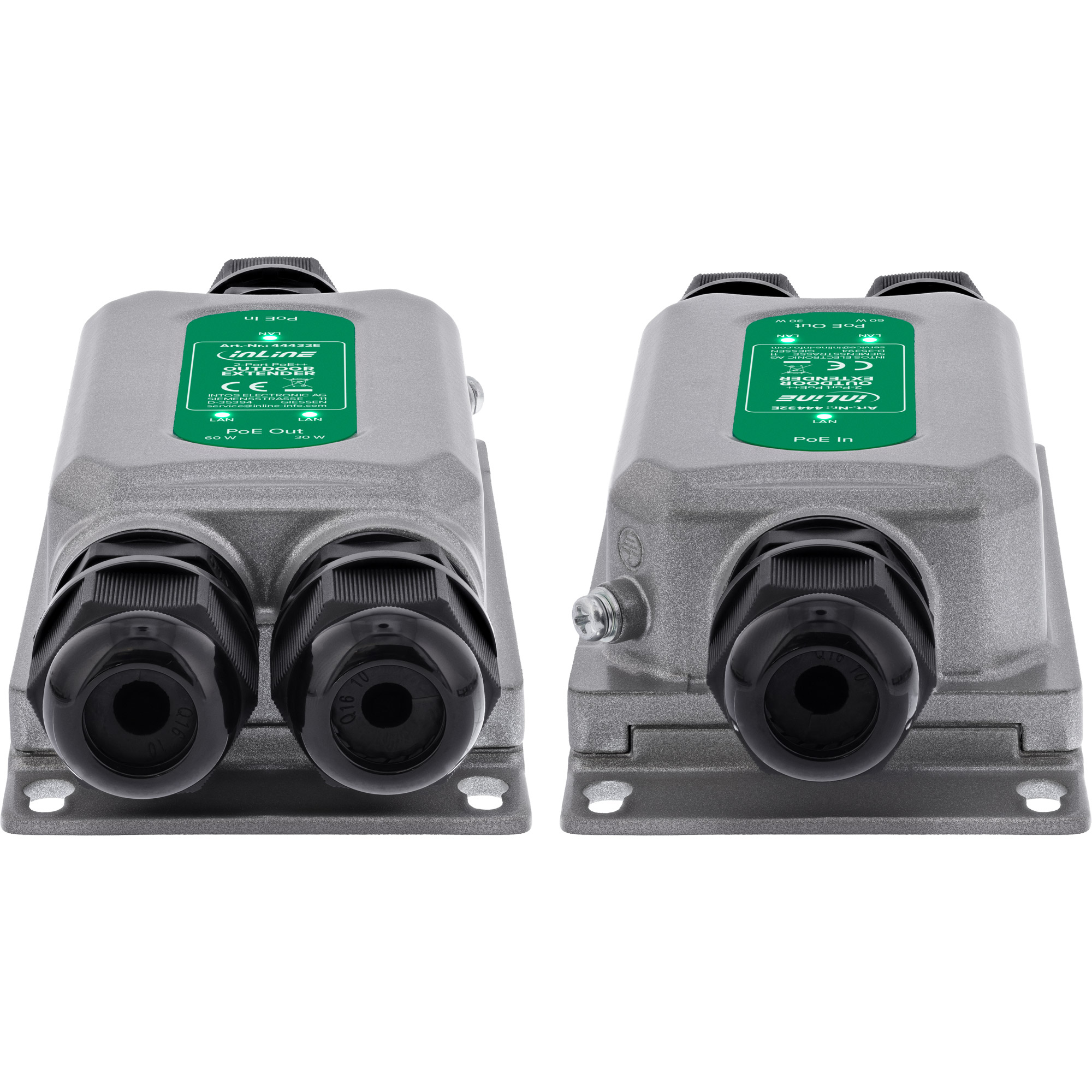

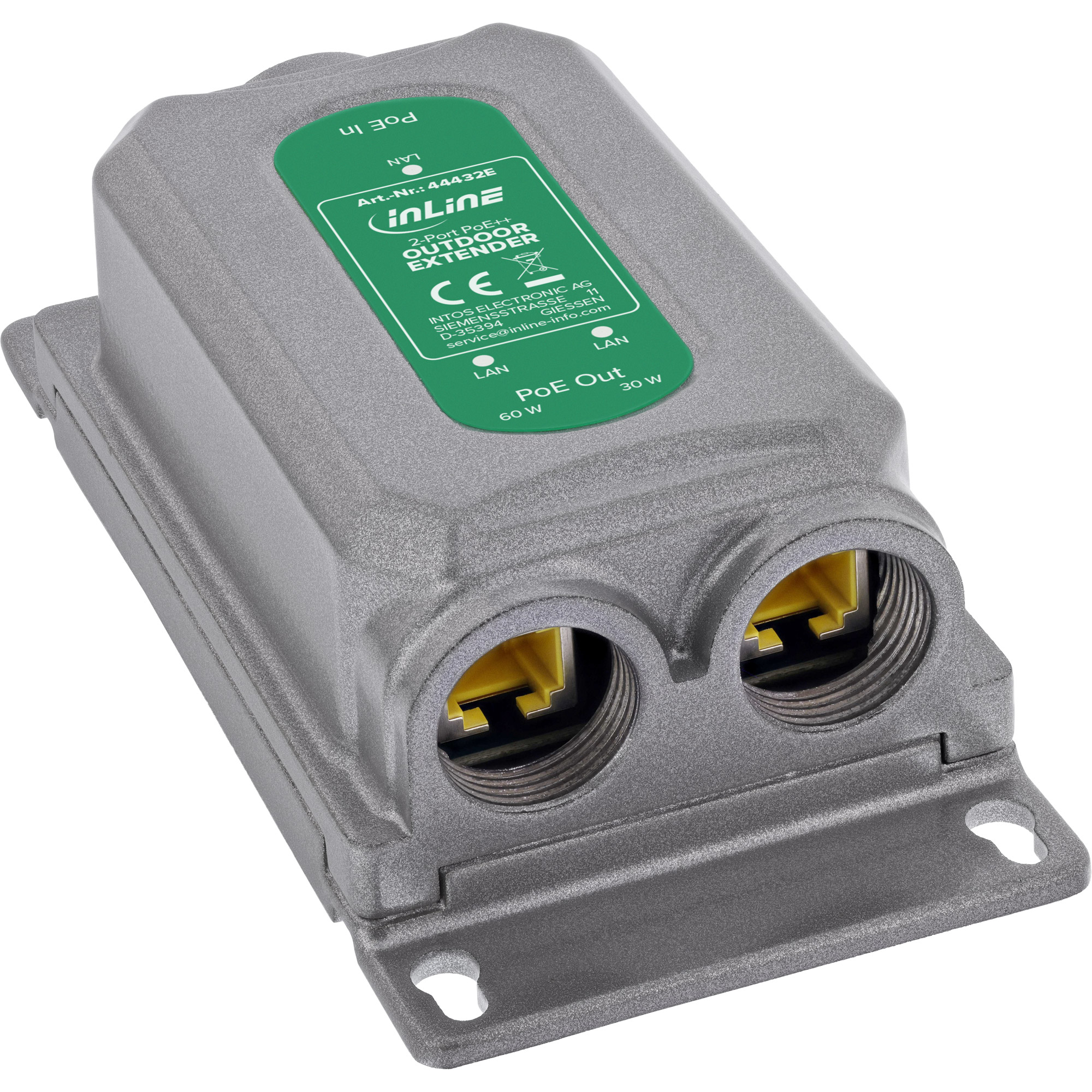

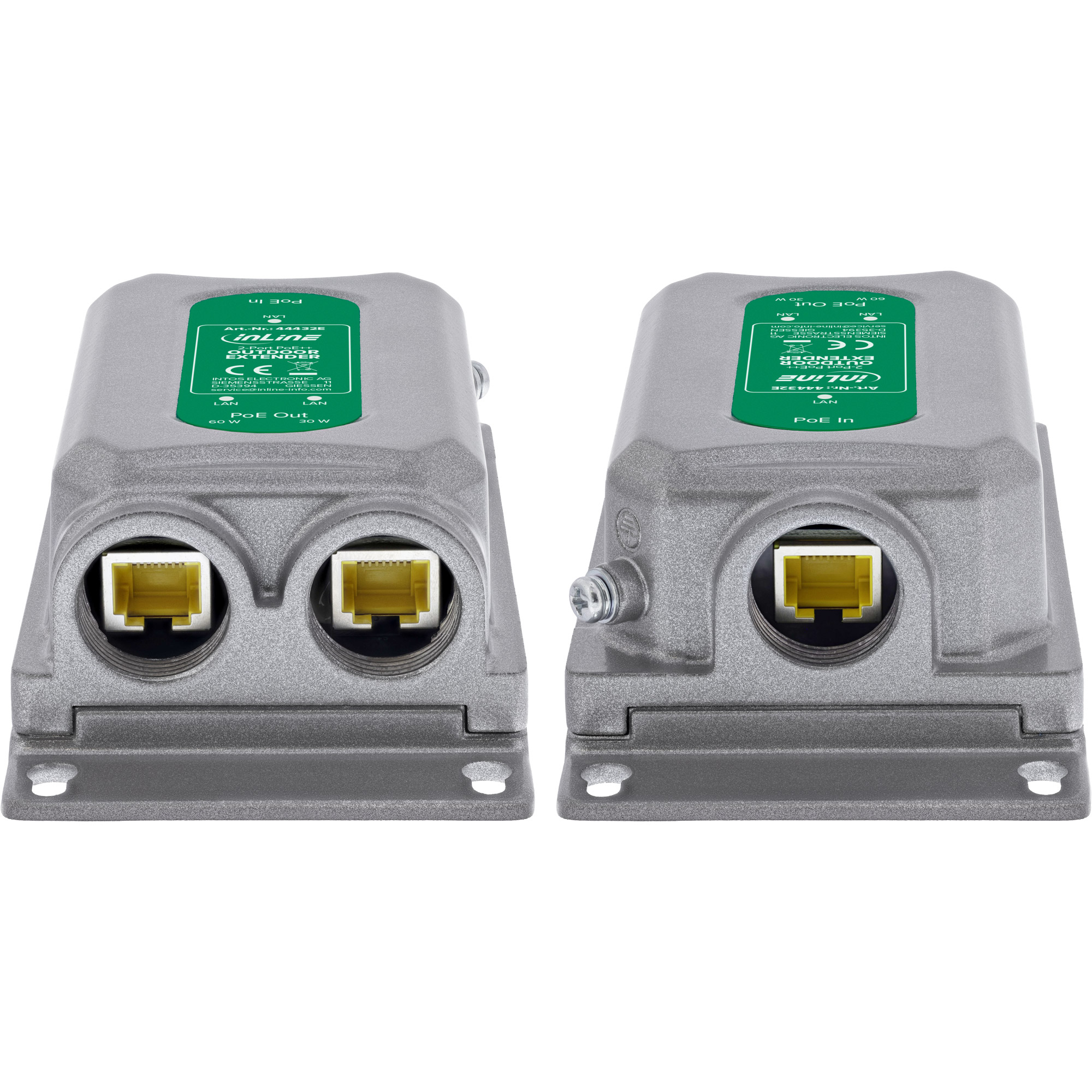

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 3 |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 2 |
| DC-in jack | No |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) voltage | 55 V |
| Output power | 85 W |
| Input current | 48 - 55 A |
| Power consumption (max) | 90 W |
| Power over Ethernet (PoE) power per port | 60 W |
| Total Power over Ethernet (PoE) budget | 85 W |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS, CE |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Certification | IP67, IK10 |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 80 °C |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 71 mm |
| Depth | 180 mm |
| Height | 44 mm |
| Weight | 417 g |
| Dimensions (WxDxH) | 71 x 180 x 44 mm |

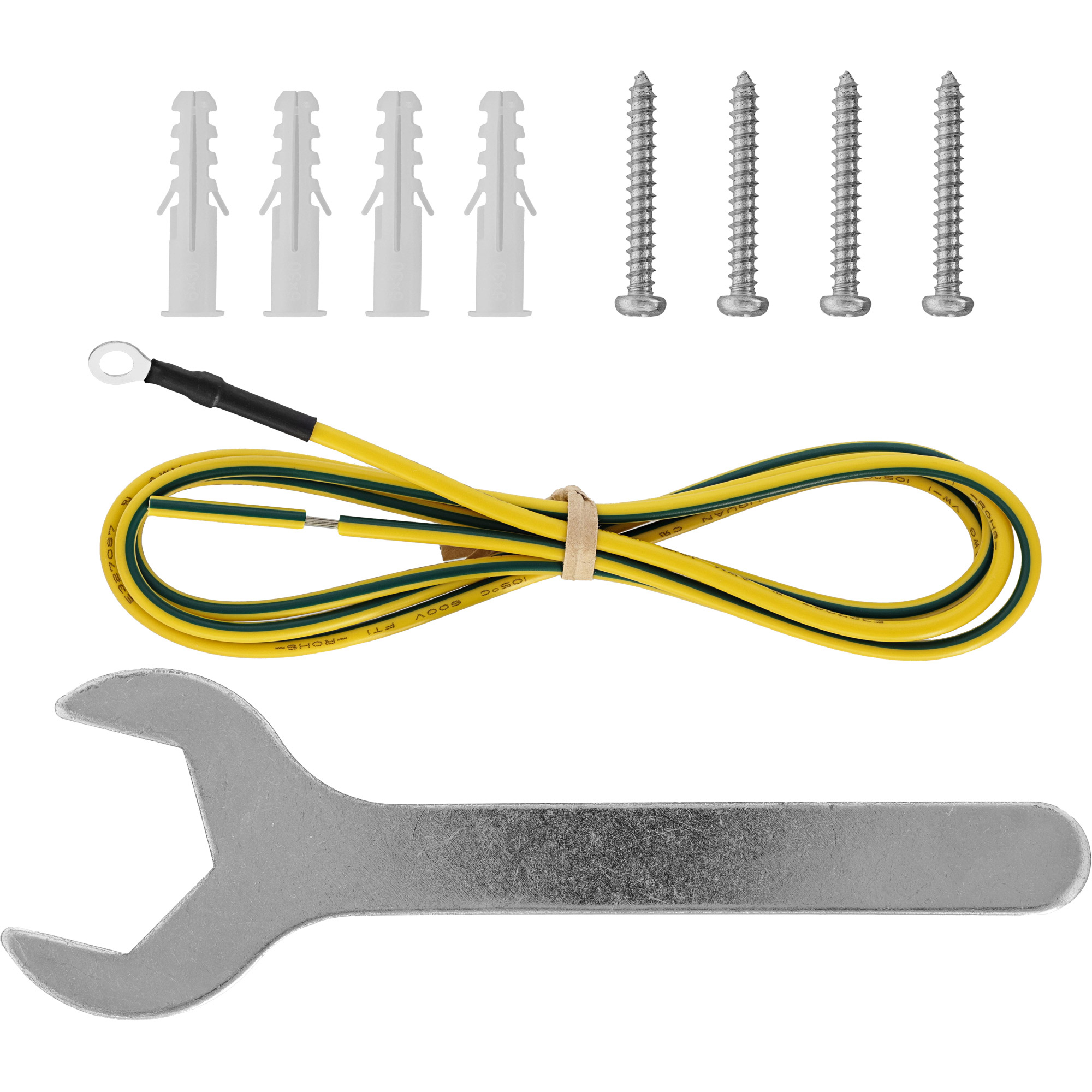

Packaging content
| Specification | Value |
|---|---|
| Number of products included | 1 pc(s) |
| Power cord included | No |
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 188 mm |
| Package depth | 240 mm |
| Package height | 86 mm |
| Package weight | 640 g |
| Package volume | 3900 cm³ |
Logistics data
| Specification | Value |
|---|---|
| Customs product code (TARIC) | 8517620000 |
| Harmonized System (HS) code | 851762 |
| Country of origin | China |
Similar products
All poe adapters
Zyxel
POE12-3PD-ZZ0101F PoE adapter Gigabit Ethernet
Model POE12-3PD-ZZ0101F
- Weight
- 257 g
- Ethernet interface type
- Gigabit Ethernet
- Operating temperature (T-T)
- -4 - 122 °F
StarTech.com
2-Port Gigabit Midspan PoE+ Injector, 10/100/1000Mbps, PoE+ (802.3af/at)
Model AF221C-POE-INJECTOR
- Weight
- 60 g
- Colour
- Black
- Ethernet interface type
- Fast Ethernet, Gigabit Ethernet
InLine
44432F PoE adapter Gigabit Ethernet
Model 44432F
- Weight
- 515 g
- Colour
- Grey
- Ethernet interface type
- Gigabit Ethernet
StarTech.com
2-Port Gigabit Midspan PoE+ Injector, 10/100/1000Mbps, PoE+ (802.3af/at)
Model AF221CE-POE-INJECTOR
- Weight
- 60 g
- Colour
- Black
- Ethernet interface type
- Gigabit Ethernet, Fast Ethernet
Intellinet
10G PoE++ Injector One
Model 561945-UK
- Weight
- 500 g
- Colour
- Black
- Ethernet interface type
- 10 Gigabit Ethernet
StarTech.com
1-Port Gigabit PoE+ Injector, 10M/100M/1G Ethernet, PoE/PoE+ (802.3af/802.3at)
Model AF211C-POE-INJECTOR
- Weight
- 100 g
- Colour
- Black
- Ethernet interface type
- Gigabit Ethernet
StarTech.com
4-Port Multi-Gigabit PoE++ Injector, 5/2.5/1G Ethernet (NBASE-T), PoE/PoE+/PoE++ (802.3af/802.3at/802.3bt), 160Watts Power Budget, Wall/DIN Rail Mo
Model AS445C-POE-INJECTOR
- Weight
- 278 g
- Colour
- Grey
- Ethernet LAN data rates
- 10,100,1000,2500,5000 Mbit/s
StarTech.com
1-Port 10Gbps PoE++ Injector
Model AF31XC-POE-INJECTOR
- Weight
- 198 g
- Colour
- Black
- Cabling technology
- 1000/10000
StarTech.com
4-Port Gigabit Midspan, PoE+ Injector, 802.3at and 802.3af, Wall-Mountable Power over Ethernet Midspan, Up to 30.8 Watts per port, Plug-and-Play, T
Model POEINJ4G-US
- Weight
- 202 g
- Colour
- Black
- Ethernet interface type
- 2 Gigabit Ethernet
Ernitec

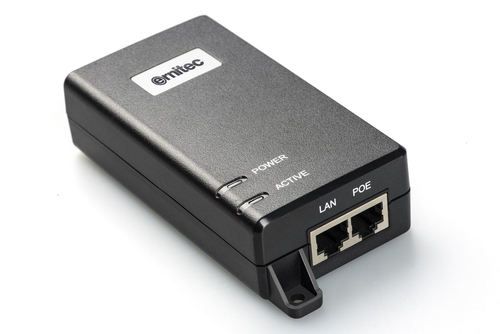

ELECTRA-P2-95W PoE adapter Gigabit Ethernet
