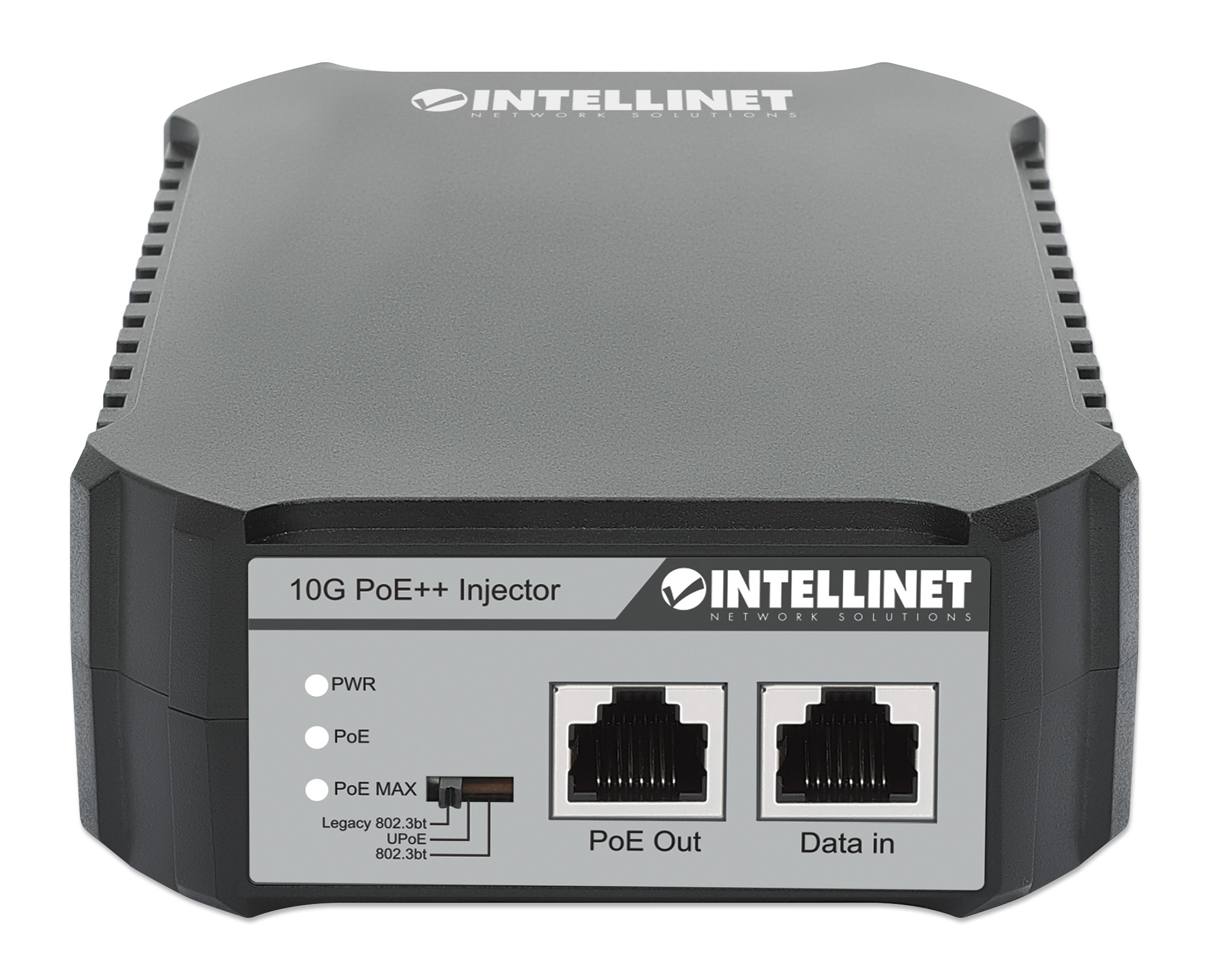

10G PoE++ Injector One
95 W Port, IEEE 802.3bt (4PPoE) Compliant, Metal Housing, Wall-mount Option (with UK power cord)
Model 561945-UKEAN 766623996389
45 specifications
- Weight500 g
- ColourBlack
- Ethernet interface type10 Gigabit Ethernet
- Ethernet LAN (RJ-45) ports2
- Power over Ethernet (PoE) voltage54 V
- Operating temperature (T-T)0 - 40 °C
Overview
- Weight
- 500 g
- Colour
- Black
- Ethernet interface type
- 10 Gigabit Ethernet
- Ethernet LAN (RJ-45) ports
- 2
- Power over Ethernet (PoE) voltage
- 54 V
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- Intellinet
- Category
- PoE Adapter
- Model
- 561945-UK
- Part number
- 561945-UK
- EAN / UPC
- 766623996389
- Also known as
- Intellinet 10G PoE++ Injector One 95 W Port, IEEE 802.3bt (4PPoE) Compliant, Metal Housing, Wall-mount Option (with UK power cord)
Specifications
45 specifications in 10 groups
Network
| Specification | Value |
|---|---|
| Ethernet interface type | 10 Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000,2500,5000,10000 Mbit/s |
| Power over Ethernet (PoE) | Yes |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e, Cat6, Cat6a |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3u |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Plastic |
| Wall mountable | Yes |
| Plug and Play | Yes |
| Surge protection | Yes |
| Maximum operating distance | 100 m |
| LED indicators | PoE, Power |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) voltage | 54 V |
| Input voltage | 100 - 240 V |
| Input frequency | 50 - 60 Hz |
| Power consumption (max) | 100 W |
| Surge protection voltage | 4 kV |
| Total Power over Ethernet (PoE) budget | 95 W |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, RoHS, FCC Class A, UKCA, NDAA |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating temperature (T-T) | 32 - 104 °F |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 100 mm |
| Depth | 172 mm |
| Height | 40 mm |
| Weight | 500 g |
Packaging content
| Specification | Value |
|---|---|
| Number of products included | 1 pc(s) |
| Power cord included | Yes |
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package length | 19 cm |
| Package width | 235 mm |
| Package depth | 86 mm |
| Package height | 820 mm |
| Package type | Box |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 250 mm |
| Master (outer) case length | 455 mm |
| Master (outer) case height | 405 mm |
| Master (outer) case gross weight | 8.89 kg |
| Products per master (outer) case | 10 pc(s) |
| Warranty period | 3 year(s) |
