Omada PoE++ Injector Adapter
Model TL-POE170SPart no. POE170SEAN 840030703898
31 specifications
- ColourBlack
- Ethernet interface typeGigabit Ethernet
- RJ-45 input ports1
- Output power60 W
- Operating temperature (T-T)0 - 45 °C
- Width155 mm
Overview
- Colour
- Black
- Ethernet interface type
- Gigabit Ethernet
- RJ-45 input ports
- 1
- Output power
- 60 W
- Operating temperature (T-T)
- 0 - 45 °C
- Width
- 155 mm
- Brand
- TP-Link
- Category
- PoE Adapter
- Model
- TL-POE170S
- Part numbers
- POE170S, POE170S(UN)
- EAN / UPC
- 840030703898, 4897098681756, 4897098683897
- Also known as
- TP-Link Omada PoE++ Injector Adapter
Specifications
31 specifications in 10 groups
Network
| Specification | Value |
|---|---|
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000 |
| Power over Ethernet (PoE) | Yes |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e, Cat6 |
| Networking standards | IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Metal |

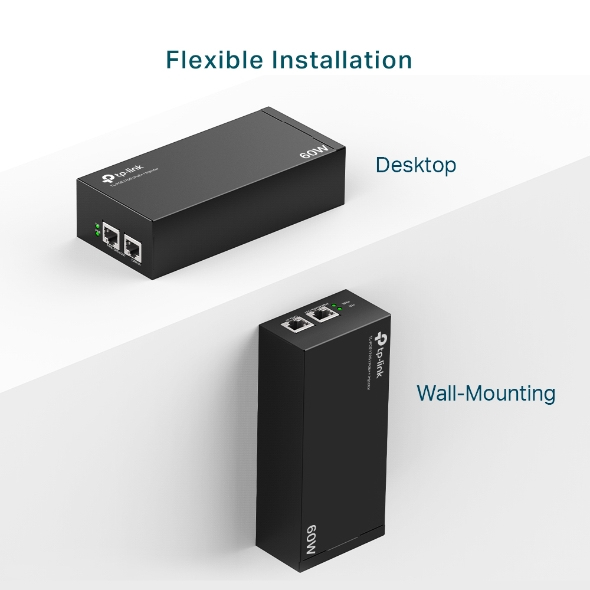

| Wall mountable | Yes |
| Plug and Play | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
Power
| Specification | Value |
|---|---|
| Output power | 60 W |
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50/60 Hz |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE, RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |

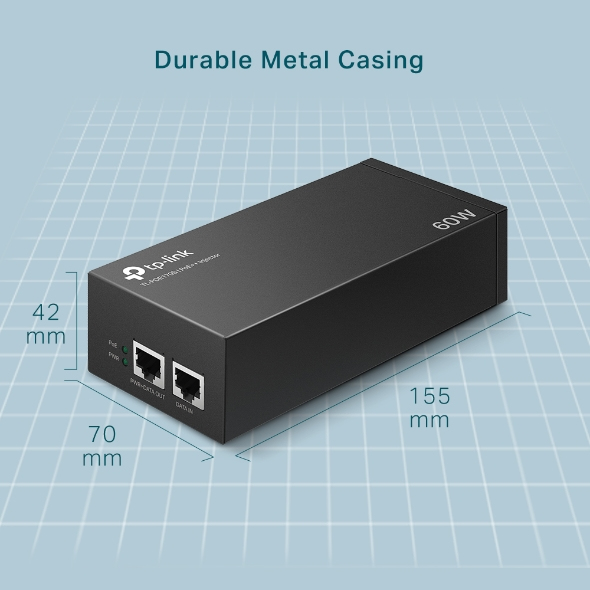

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 155 mm |
| Depth | 70 mm |
| Height | 42 mm |
Packaging content
| Specification | Value |
|---|---|
| Number of products included | 1 pc(s) |
| Quick installation guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 190 mm |
| Package depth | 250 mm |
| Package height | 95 mm |
| Package weight | 920 g |
| Package type | Box |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85044095 |
