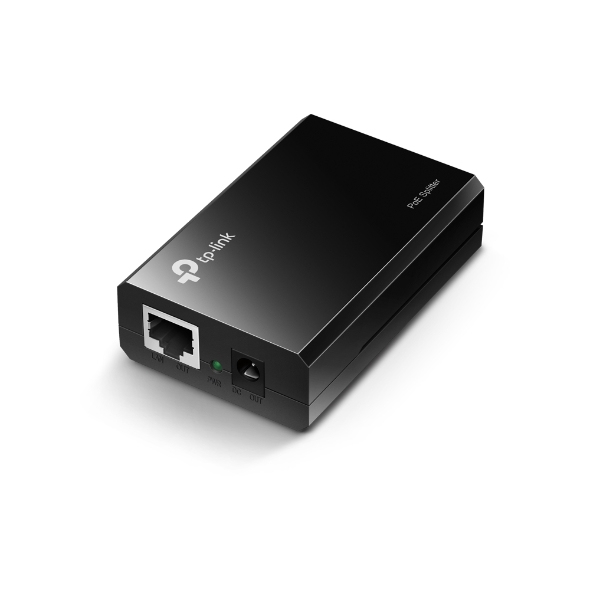

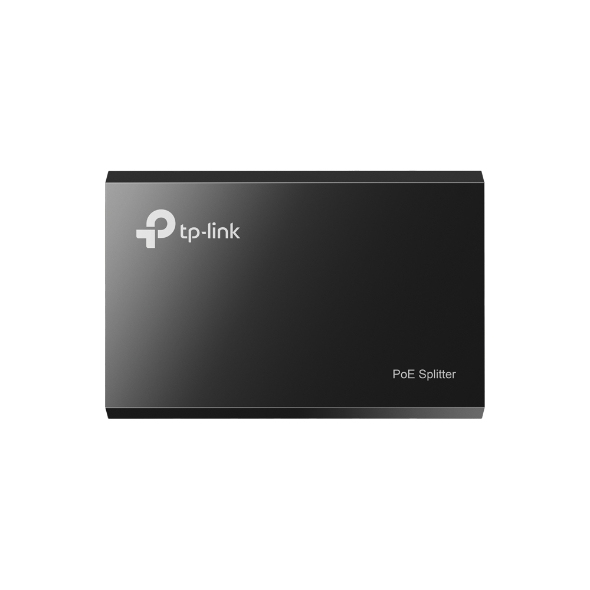

TL-POE10R v4
Model TL-POE10R v4Part no. TL-POE10R V4EAN 6935364030490
29 specifications
- ColourBlack
- Ethernet interface typeGigabit Ethernet
- Ethernet LAN (RJ-45) ports2
- Input voltage5, 9, 12 V
- Operating temperature (T-T)0 - 40 °C
- Width81 mm
Overview
- Colour
- Black
- Ethernet interface type
- Gigabit Ethernet
- Ethernet LAN (RJ-45) ports
- 2
- Input voltage
- 5, 9, 12 V
- Operating temperature (T-T)
- 0 - 40 °C
- Width
- 81 mm
- Brand
- TP-Link
- Category
- PoE Adapter
- Model
- TL-POE10R v4
- Part number
- TL-POE10R V4
- EAN / UPC
- 6935364030490
- Also known as
- TP-Link TL-POE10R v4 Gigabit Ethernet
Specifications
29 specifications in 9 groups
Network
| Specification | Value |
|---|---|
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000 |
| Power over Ethernet (PoE) | Yes |
| Cable types supported | Cat3, Cat5, Cat5e |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Plug and Play | Yes |
| LED indicators | Power |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |

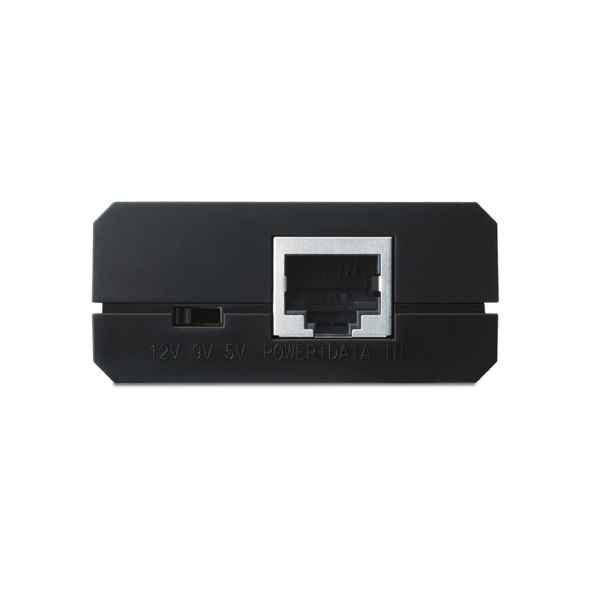

| RJ-45 input ports | 1 |

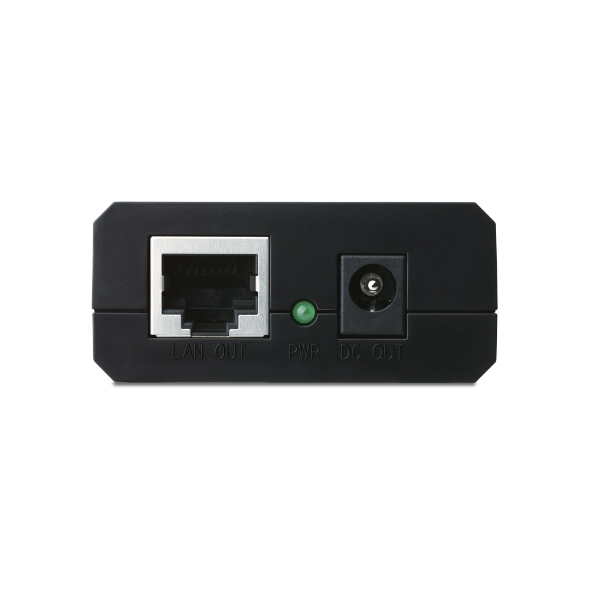

| RJ-45 output ports | 1 |
Power
| Specification | Value |
|---|---|
| Input voltage | 5, 9, 12 V |
| Input current | 1, 2 A |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 81 mm |
| Depth | 52 mm |
| Height | 24 mm |
Packaging content
| Specification | Value |
|---|---|
| Number of products included | 1 pc(s) |
| Quick installation guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 165 mm |
| Package depth | 198 mm |
| Package height | 65 mm |
| Package weight | 230 g |
| Package type | Box |
