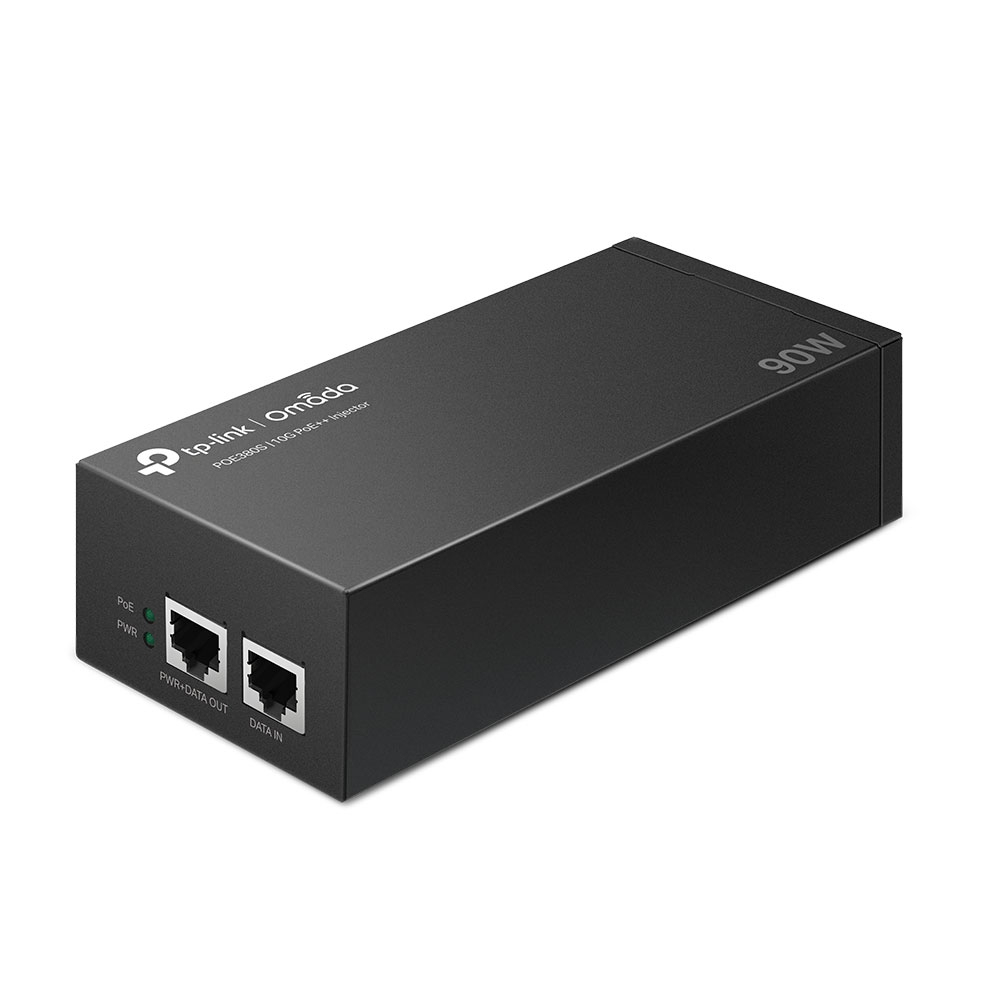

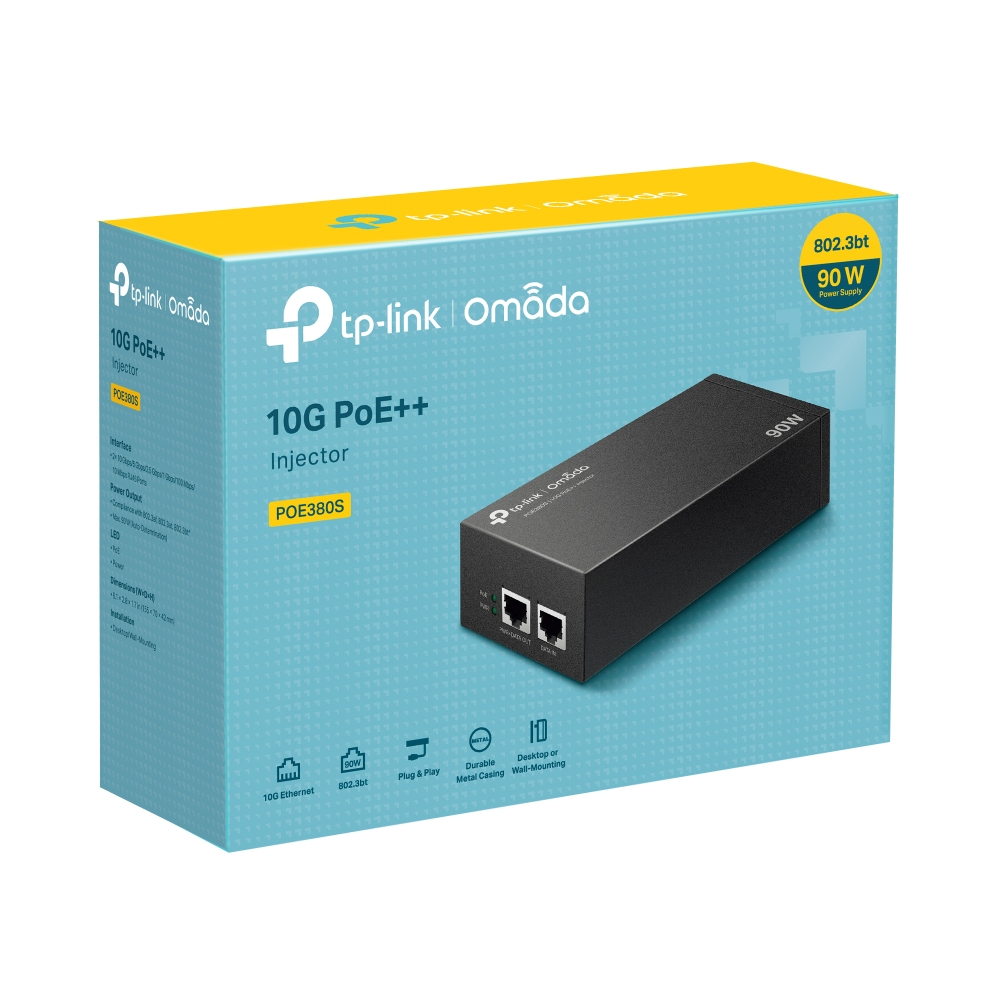

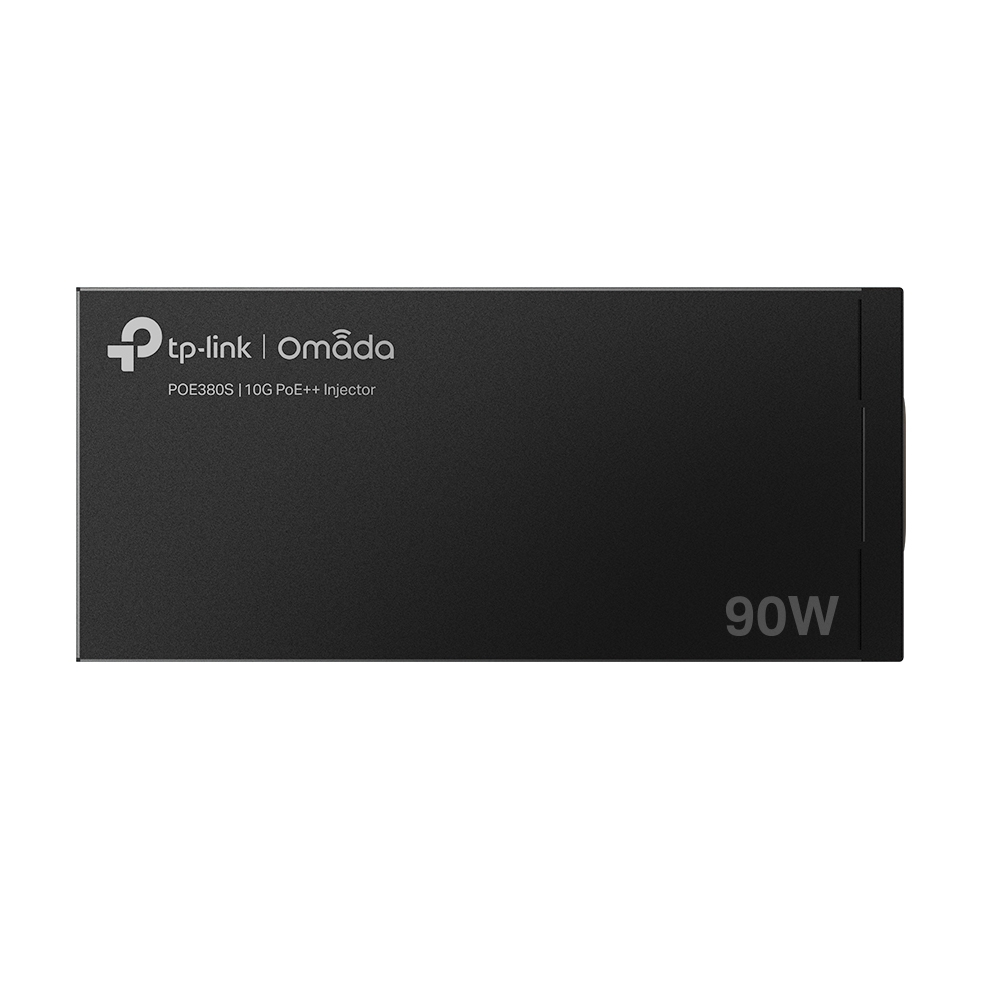

Omada PoE++ Injector
Model POE380SEAN 840030711848
23 specifications
- ColourBlack
- Ethernet interface type10 Gigabit Ethernet
- RJ-45 input ports1
- AC adapter input voltage100 - 240 V
- Operating temperature (T-T)0 - 45 °C
- Width155 mm
Overview
- Colour
- Black
- Ethernet interface type
- 10 Gigabit Ethernet
- RJ-45 input ports
- 1
- AC adapter input voltage
- 100 - 240 V
- Operating temperature (T-T)
- 0 - 45 °C
- Width
- 155 mm
- Brand
- TP-Link
- Category
- PoE Adapter
- Model
- POE380S
- Part numbers
- POE380S, POE380S(UN)
- EAN / UPC
- 840030711848, 4895252506341, 4895252506358
- Also known as
- TP-Link Omada PoE++ Injector
Specifications
23 specifications in 9 groups
Network
| Specification | Value |
|---|---|
| Ethernet interface type | 10 Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,2500,10000 Mbit/s |
| Cabling technology | 1000/10000 |
| Power over Ethernet (PoE) | Yes |
| Networking standards | IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u |
Features
| Specification | Value |
|---|---|
| Product colour | Black |

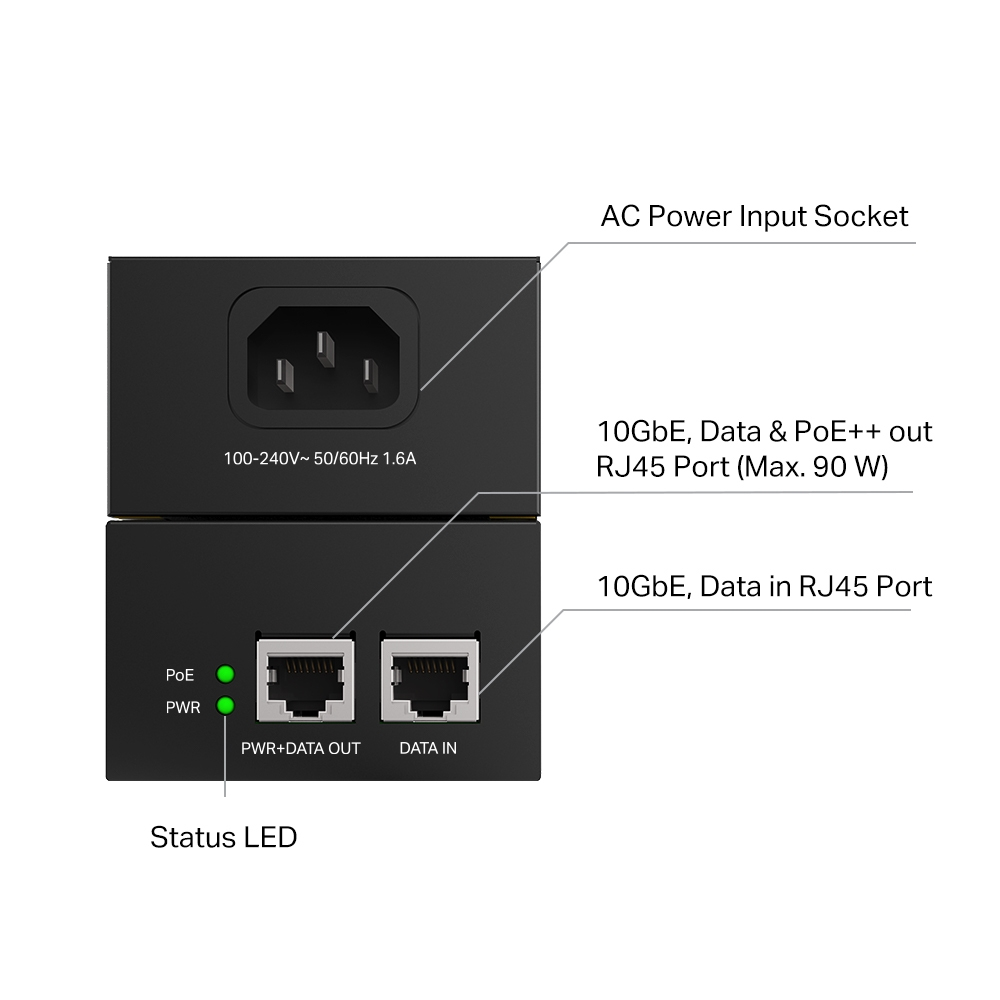

| LED indicators | PoE, Power |
Ports & interfaces
| Specification | Value |
|---|---|
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
Power
| Specification | Value |
|---|---|
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50 - 60 Hz |
| Input current | 1.6 A |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 155 mm |
| Depth | 70 mm |
| Height | 42 mm |
Packaging content
| Specification | Value |
|---|---|
| Number of products included | 1 pc(s) |
| Quick installation guide | Yes |
