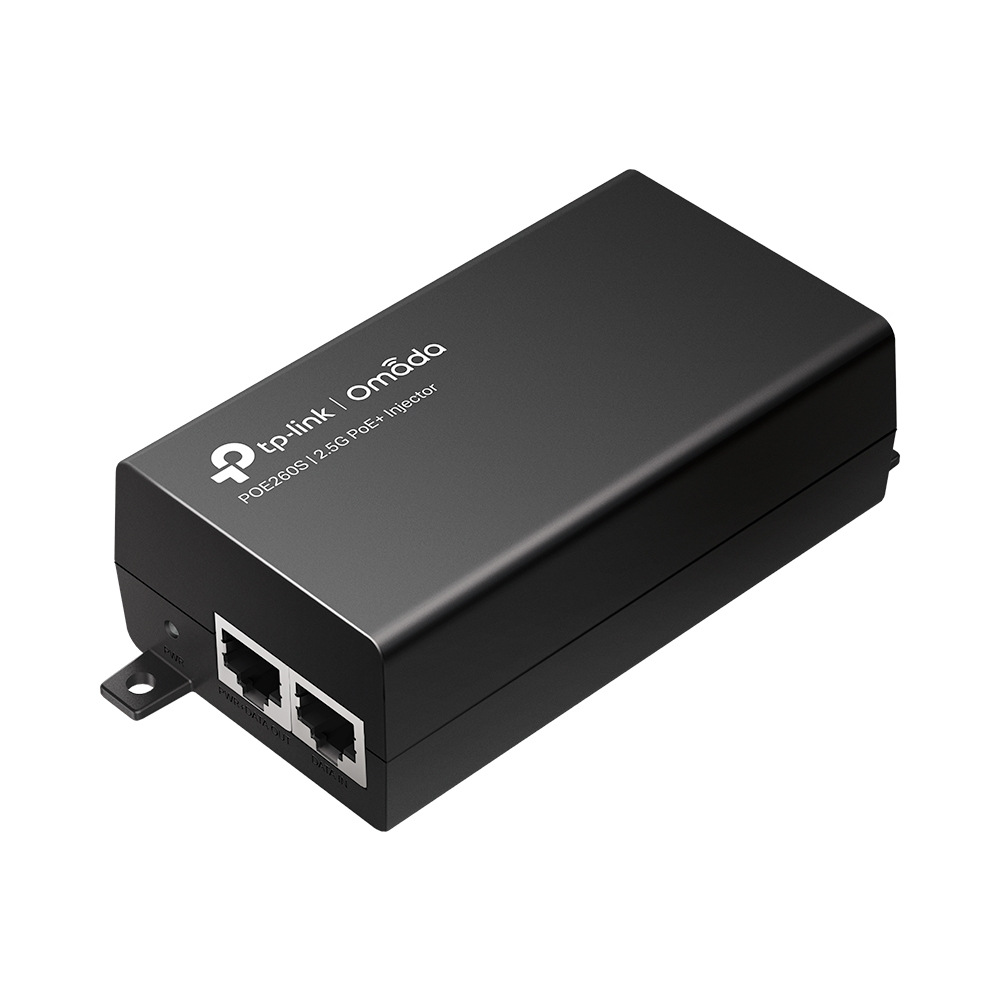

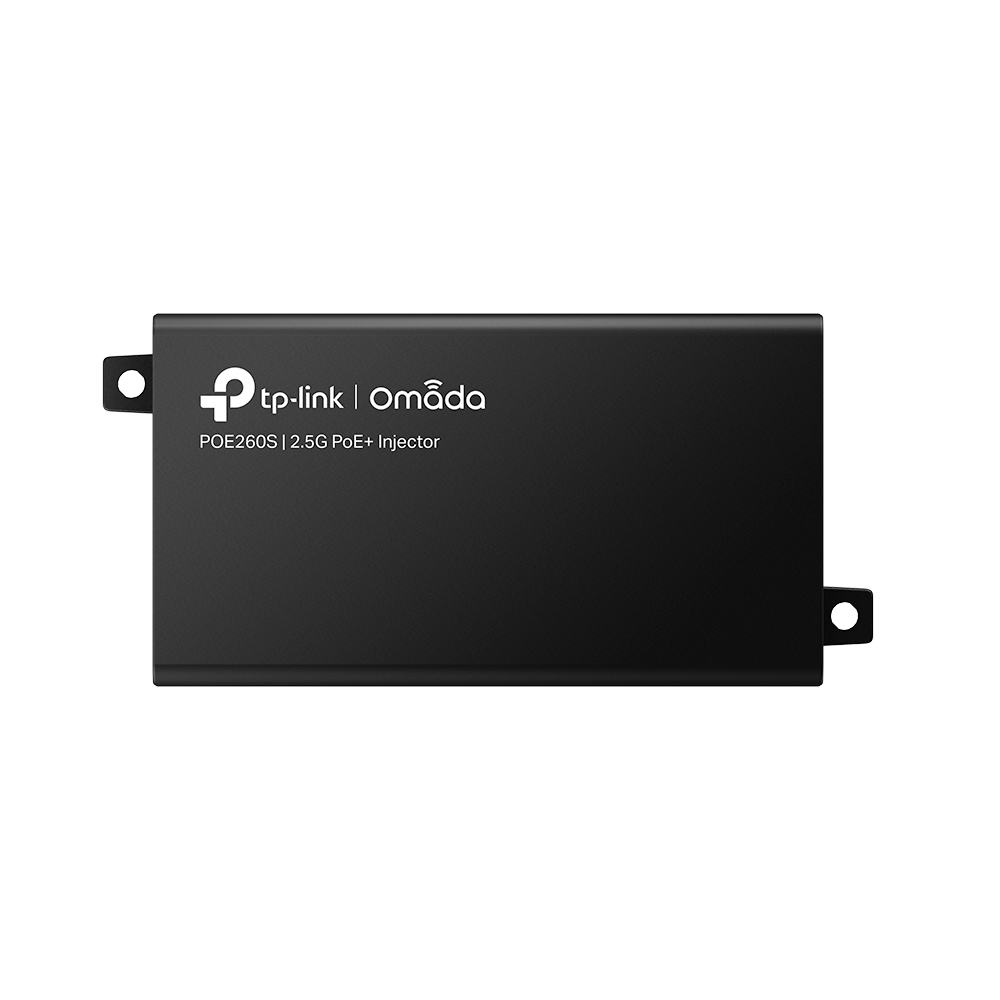

Omada 2.5G PoE+ Injector Adapter
Model POE260SEAN 4895252502220
29 specifications
- ColourBlack
- Ethernet LAN data rates10,100,1000,2500 Mbit/s
- RJ-45 input ports1
- Output power30 W
- Operating temperature (T-T)0 - 40 °C
- Width125 mm
Overview
- Colour
- Black
- Ethernet LAN data rates
- 10,100,1000,2500 Mbit/s
- RJ-45 input ports
- 1
- Output power
- 30 W
- Operating temperature (T-T)
- 0 - 40 °C
- Width
- 125 mm
- Brand
- TP-Link
- Category
- PoE Adapter
- Model
- POE260S
- Part numbers
- POE260S, POE260S(UN)
- EAN / UPC
- 4895252502220, 4895252502237
- Also known as
- TP-Link Omada 2.5G PoE+ Injector Adapter
Specifications
29 specifications in 9 groups
Network
| Specification | Value |
|---|---|
| Ethernet interface type | 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Networking standards | IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Wall mountable | Yes |
| Easy to install | Yes |
| Maximum operating distance | 100 m |

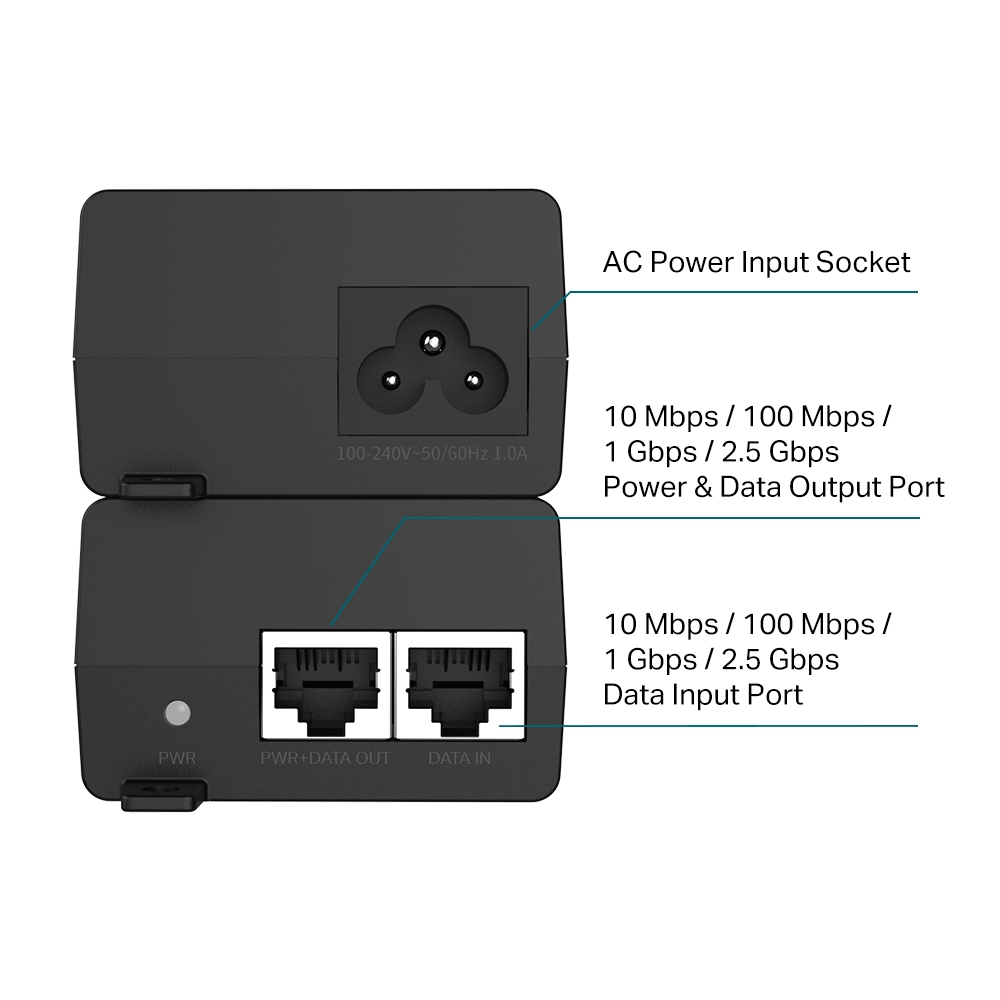

Ports & interfaces
| Specification | Value |
|---|---|
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
Power
| Specification | Value |
|---|---|

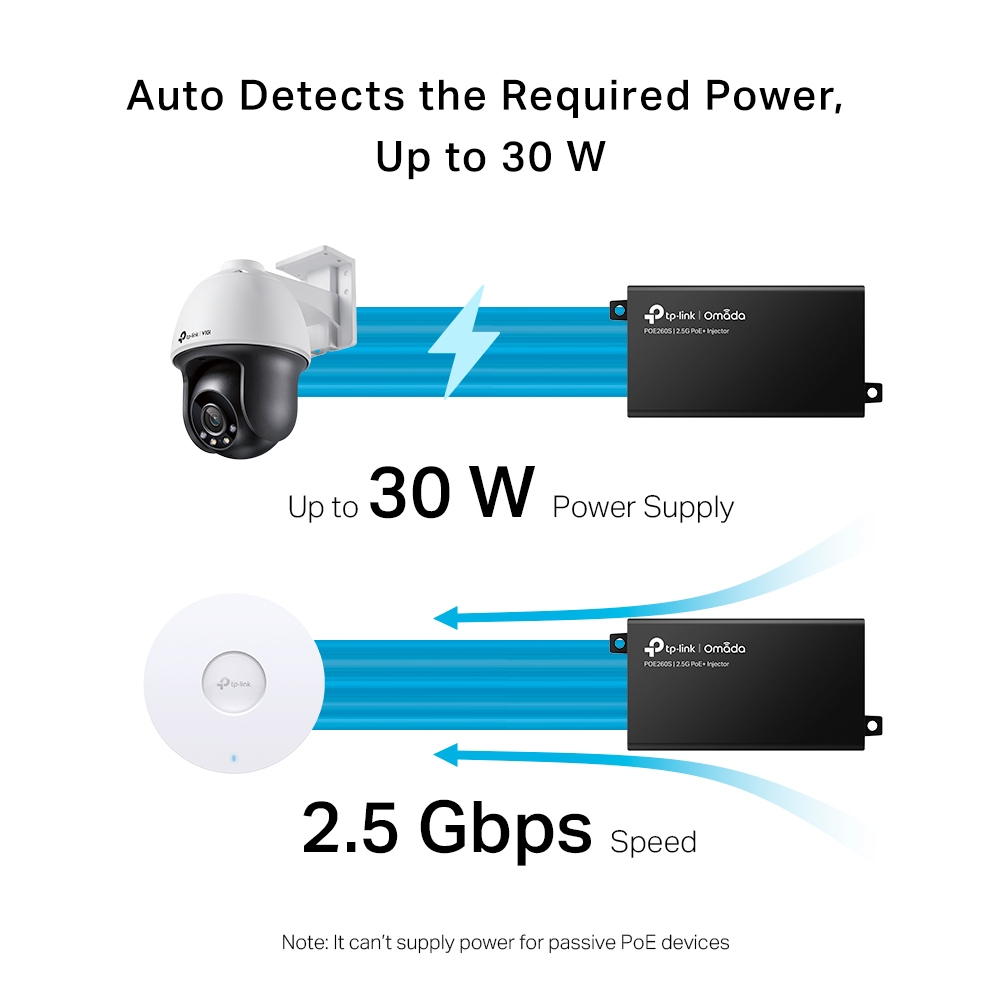

| Output power | 30 W |
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50/60 Hz |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE, RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 125 mm |
| Depth | 59.4 mm |
| Height | 36.8 mm |
Packaging content
| Specification | Value |
|---|---|
| Number of products included | 1 pc(s) |
| Wall mounting kit | Yes |
| Quick installation guide | Yes |
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 170 mm |
| Package depth | 230 mm |
| Package height | 80 mm |
| Package weight | 500 g |
| Package type | Box |
