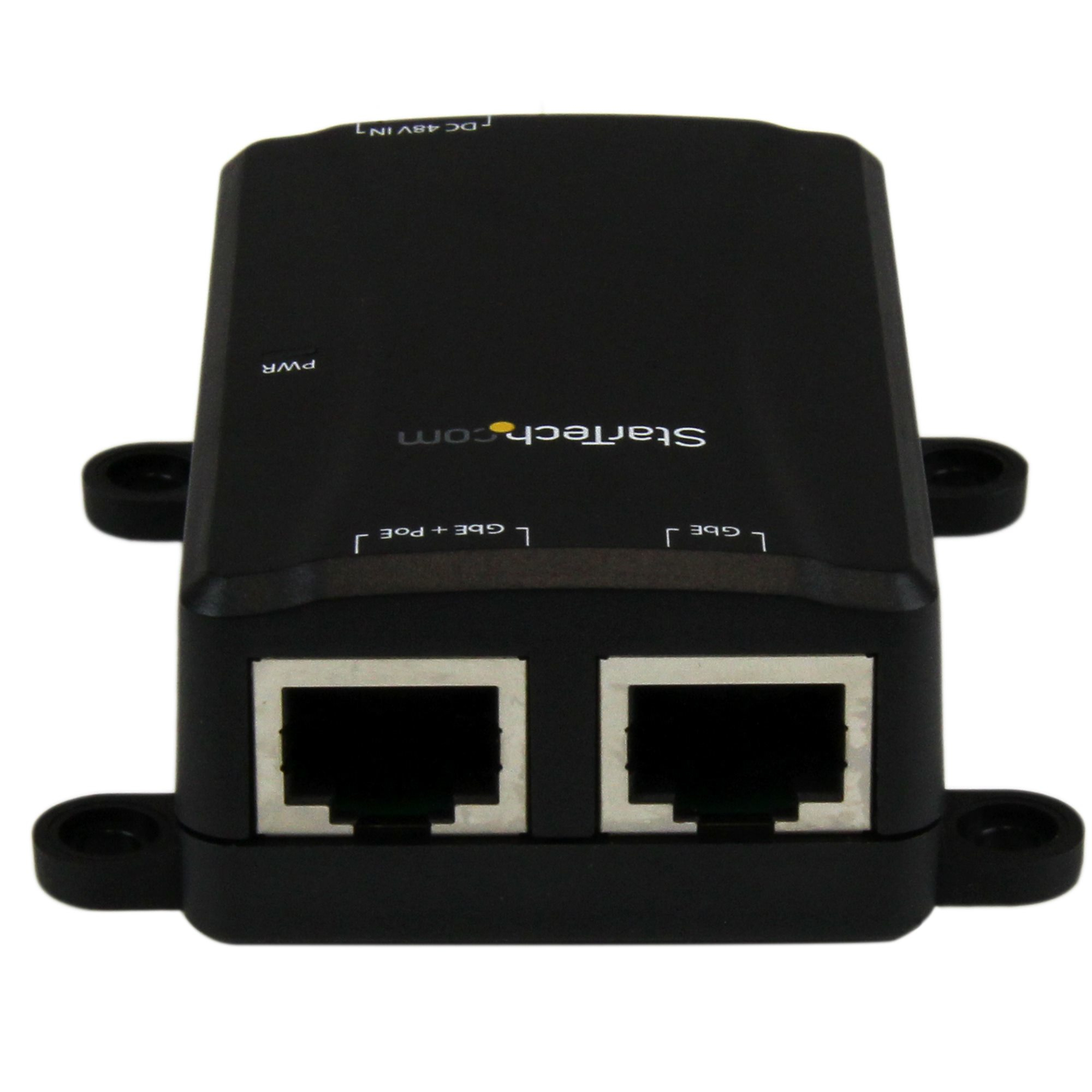

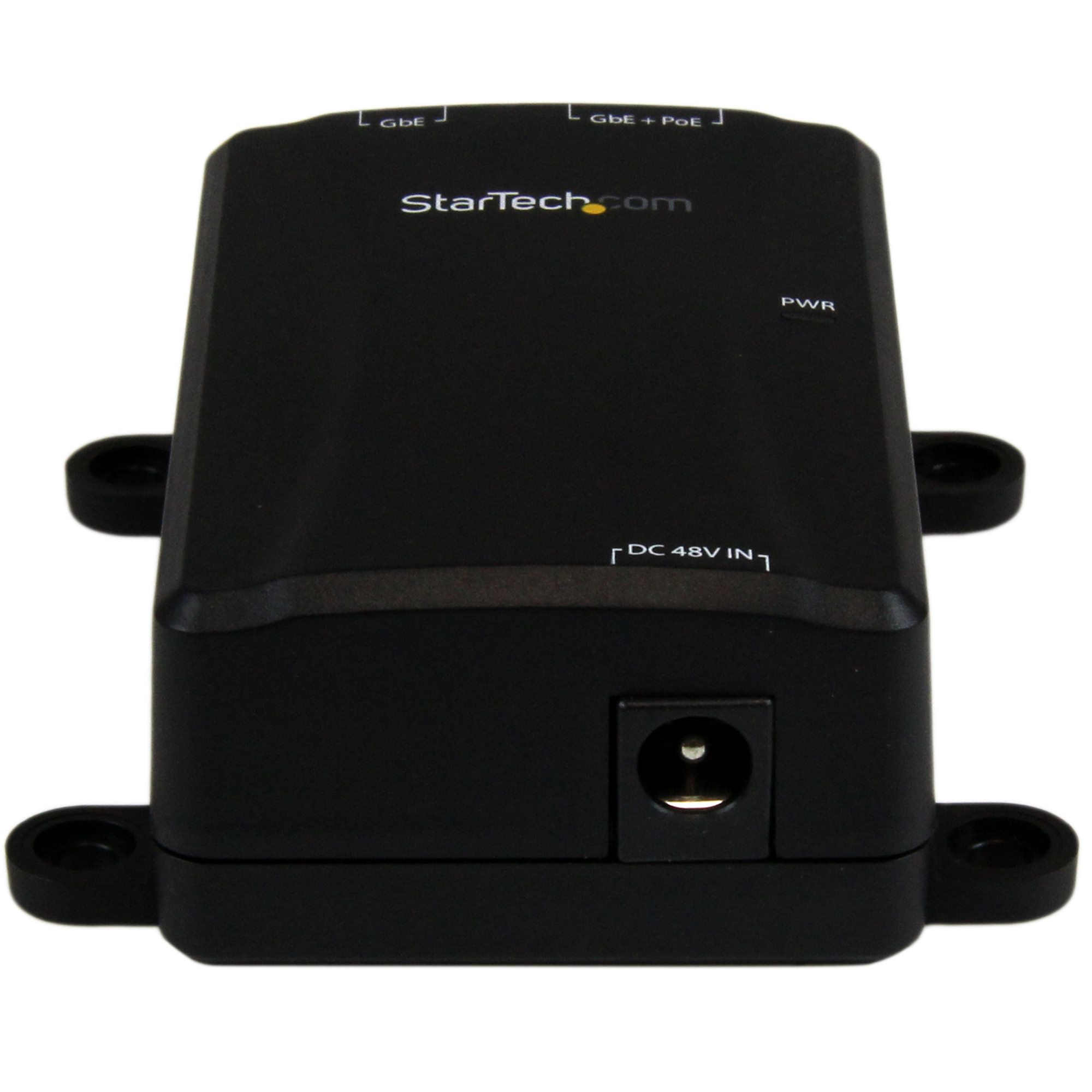

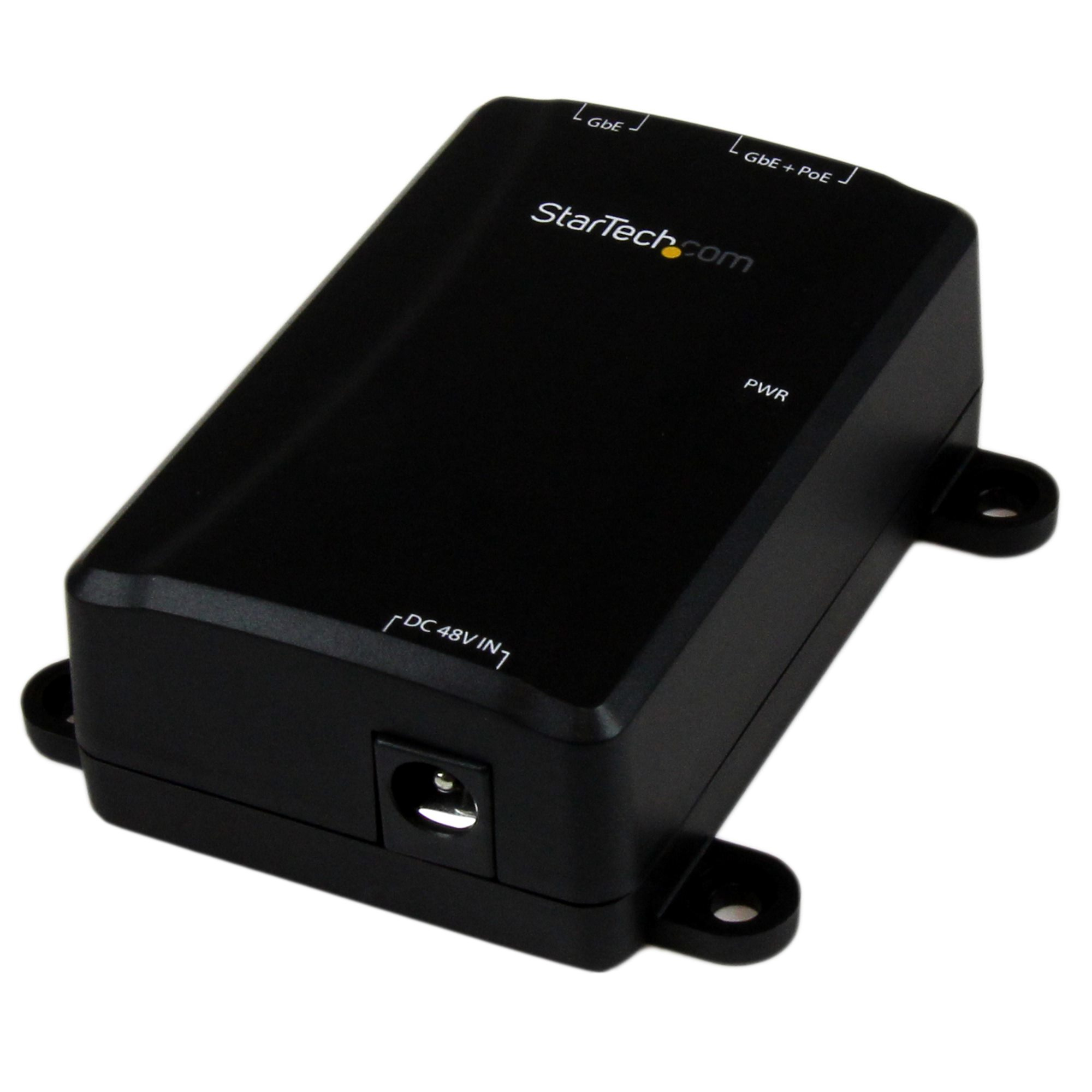

1-Port Gigabit Midspan - PoE+ Injector - 802.3at and 802.3af
Model POEINJ1GWEAN 065030865500
38 specifications
- Weight50 g
- ColourBlack
- Ethernet interface typeGigabit Ethernet
- Ethernet LAN (RJ-45) ports2
- Power over Ethernet (PoE) voltage48 V
- Operating temperature (T-T)0 - 45 °C
Overview
- Weight
- 50 g
- Colour
- Black
- Ethernet interface type
- Gigabit Ethernet
- Ethernet LAN (RJ-45) ports
- 2
- Power over Ethernet (PoE) voltage
- 48 V
- Operating temperature (T-T)
- 0 - 45 °C
- Brand
- StarTech.com
- Category
- PoE Adapter
- Model
- POEINJ1GW
- Part number
- POEINJ1GW
- EAN / UPC
- 065030865500, 5057103135448
- Also known as
- StarTech.com 1-Port Gigabit Midspan - PoE+ Injector - 802.3at and 802.3af
Specifications
38 specifications in 10 groups
Network
| Specification | Value |
|---|---|
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Power over Ethernet (PoE) | Yes |
| Cable types supported | Cat5 |
| Duplex system | Full |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Plug and Play | Yes |
| Maximum operating distance | 100 m |
| LED indicators | Power |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) voltage | 48 V |
| Output power | 30 W |
| Input voltage | 100 - 240 V |
| Input current | 0.75 A |
| Output current | 0.64 A |
| Power consumption (max) | 36 W |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -20 - 85 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 63 mm |
| Depth | 70 mm |
| Height | 25 mm |
| Weight | 50 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Power cord included | Yes |
| Quick installation guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 230 mm |
| Package depth | 190 mm |
| Package height | 76 mm |
| Package weight | 1 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85044095 |
| Master (outer) case width | 400 mm |
| Master (outer) case length | 490 mm |
| Master (outer) case height | 260 mm |
| Products per master (outer) case | 12 pc(s) |
