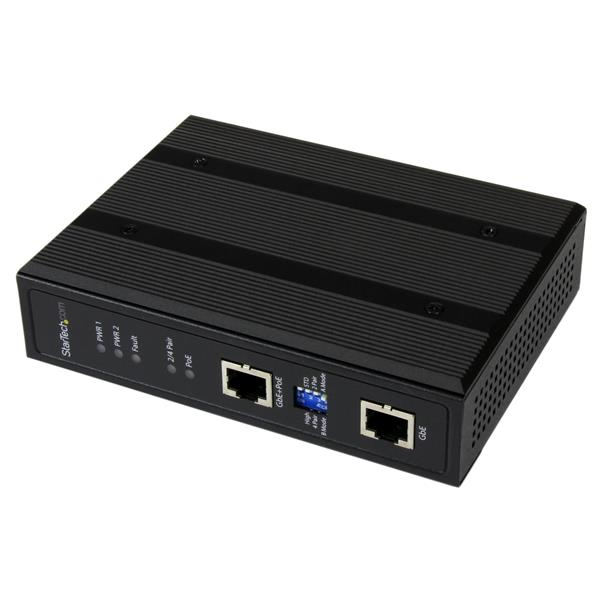

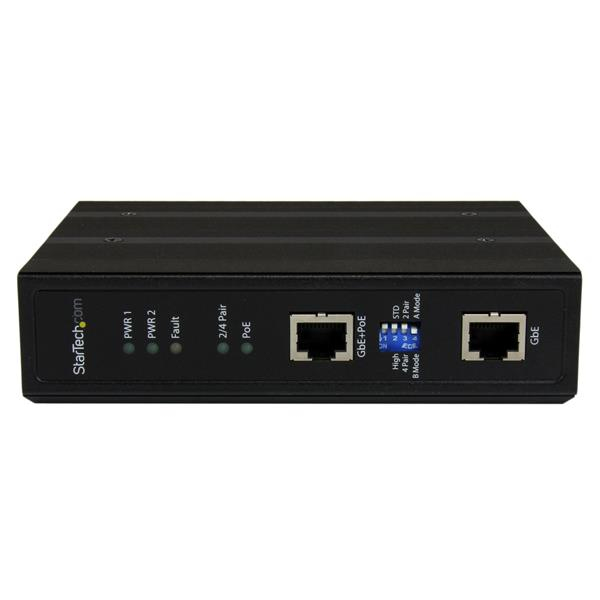

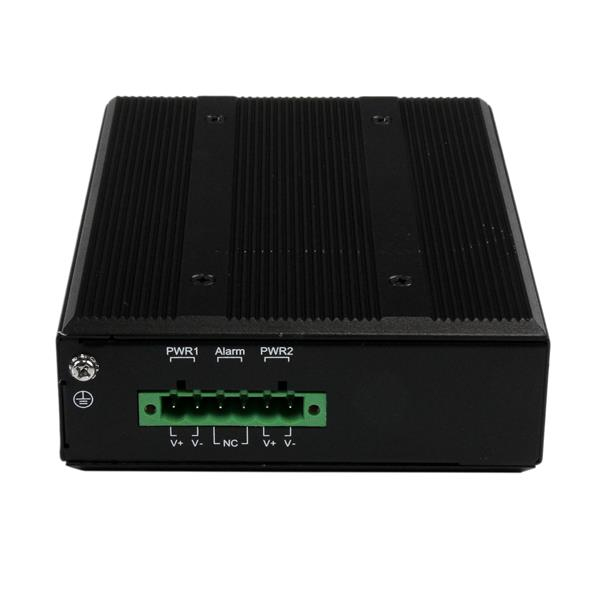

Industrial 1 Port Gigabit PoE+ Power over Ethernet Injector (30W) w/ Non-Standard PoE Boost (60W) and Redundant Power
Model POEINJ1GIEAN 065030855334
21 specifications
- Weight637 g
- Ethernet LAN data rates10,100,1000 Mbit/s
- Wall mountableYes
- Ethernet LAN (RJ-45) ports2
- Power over Ethernet (PoE) voltage48 V
- Operating temperature (T-T)0 - 60 °C
Overview
- Weight
- 637 g
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Wall mountable
- Yes
- Ethernet LAN (RJ-45) ports
- 2
- Power over Ethernet (PoE) voltage
- 48 V
- Operating temperature (T-T)
- 0 - 60 °C
- Brand
- StarTech.com
- Category
- PoE Adapter
- Model
- POEINJ1GI
- Part number
- POEINJ1GI
- EAN / UPC
- 065030855334
- Also known as
- StarTech.com Industrial 1 Port Gigabit PoE+ Power over Ethernet Injector (30W) w/ Non-Standard PoE Boost (60W) and Redundant Power
Specifications
21 specifications in 9 groups
Network
| Specification | Value |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Power over Ethernet (PoE) | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u |
Features
| Specification | Value |
|---|---|
| Wall mountable | Yes |
| Surge protection | Yes |
| Maximum operating distance | 100 m |
| LED indicators | Fault, PoE, Power |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) voltage | 48 V |
| Output power | 60 W |
| Power consumption (typical) | 30 W |
Certificates
| Specification | Value |
|---|---|
| Compliance industry standards | EN61000-6-2, EN61000-4-3 (RS), EN61000-4-6 (CS), EN61000-4-8 (PMF), EN50121-4, EN610000-6-2, EN61000-6-4, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
| Operating temperature (T-T) | -40 - 85 °F |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 637 g |
| Dimensions (WxDxH) | 106 x 142 x 39 mm |

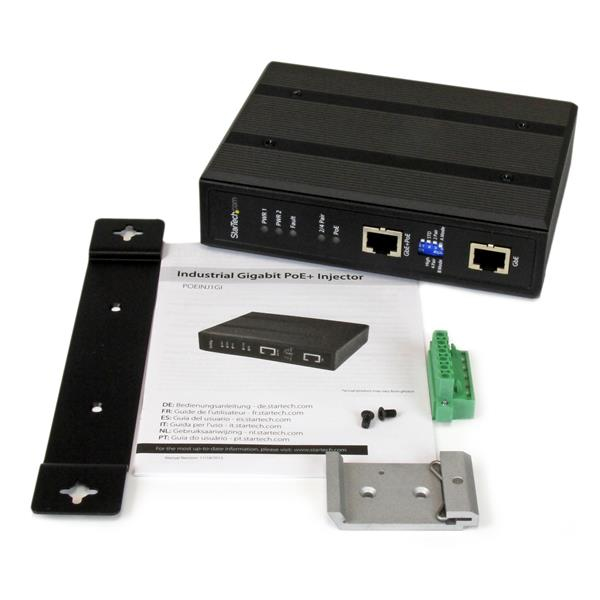

Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 185 mm |
| Package height | 75 mm |
| Package weight | 878 g |
