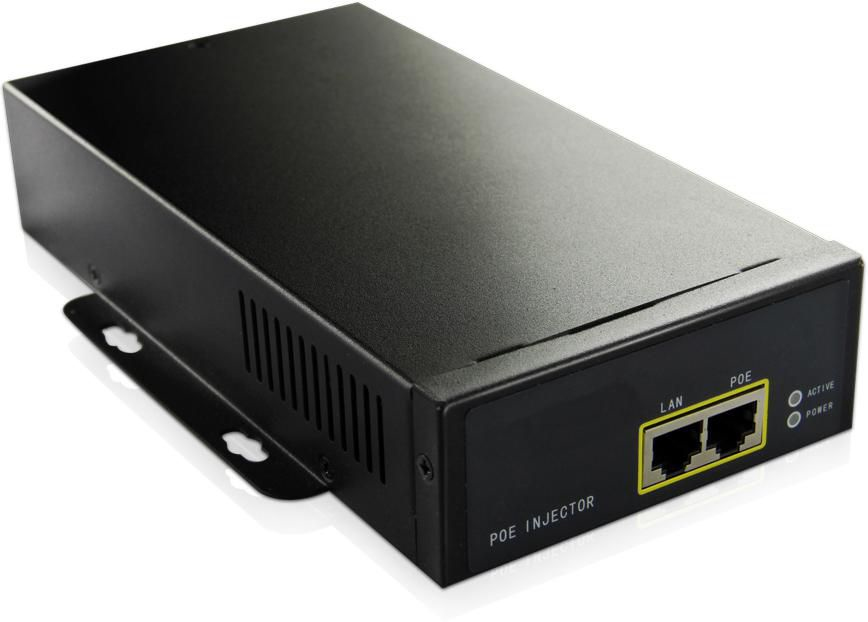

POEINJ-95W-UK PoE adapter Fast Ethernet
55 V
Model POEINJ-95W-UK
32 specifications
- Weight1.24 kg
- ColourBlack
- Ethernet interface typeFast Ethernet
- Ethernet LAN (RJ-45) ports2
- Power over Ethernet (PoE) voltage55 V
- Operating temperature (T-T)-40 - 65 °C
Overview
- Weight
- 1.24 kg
- Colour
- Black
- Ethernet interface type
- Fast Ethernet
- Ethernet LAN (RJ-45) ports
- 2
- Power over Ethernet (PoE) voltage
- 55 V
- Operating temperature (T-T)
- -40 - 65 °C
- Brand
- Microconnect
- Category
- PoE Adapter
- Model
- POEINJ-95W-UK
- Part number
- POEINJ-95W-UK
- Also known as
- Microconnect POEINJ-95W-UK PoE adapter Fast Ethernet 55 V
Specifications
32 specifications in 9 groups
Network
| Specification | Value |
|---|---|
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN data rates | 1000 Mbit/s |
| Power over Ethernet (PoE) | Yes |
| Cable types supported | Cat5 |
| Networking standards | IEEE 802.3af |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Surge protection | Yes |
| Maximum operating distance | 100 m |
| LED indicators | Yes |
| Power protection features | Over current |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) voltage | 55 V |
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50/60 Hz |
| Output current | 1.75 A |
| Power over Ethernet (PoE) power per port | 95 W |
| Suitable for use in country/location | United Kingdom |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | CE, FCC, UL |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -40 - 85 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 62 mm |
| Depth | 32.5 mm |
| Height | 140 mm |
| Weight | 1.24 kg |
Packaging content
| Specification | Value |
|---|---|
| Number of products included | 1 pc(s) |
Packaging data
| Specification | Value |
|---|---|
| Package width | 198 mm |
| Package depth | 75 mm |
| Package height | 236 mm |
| Package weight | 1.44 kg |
