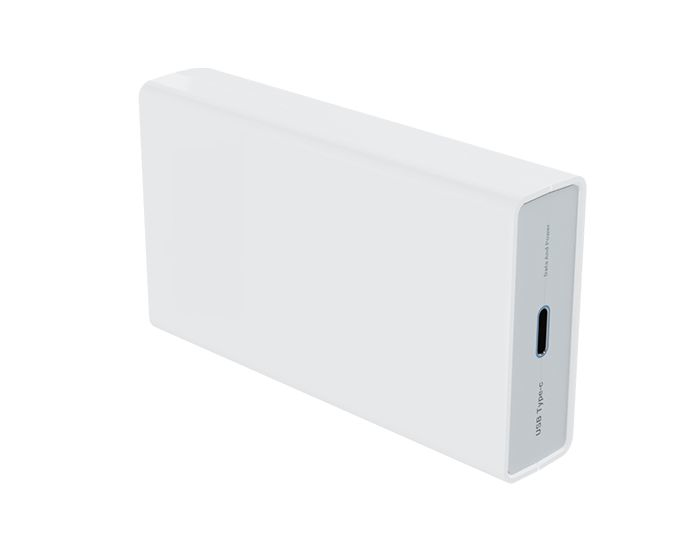

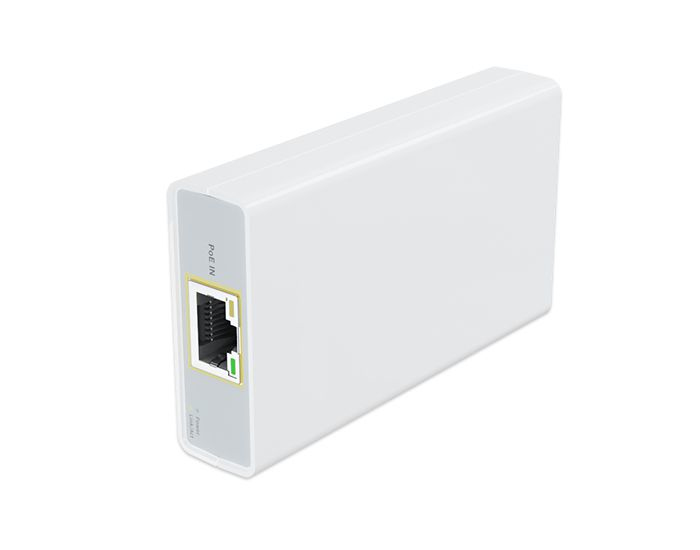

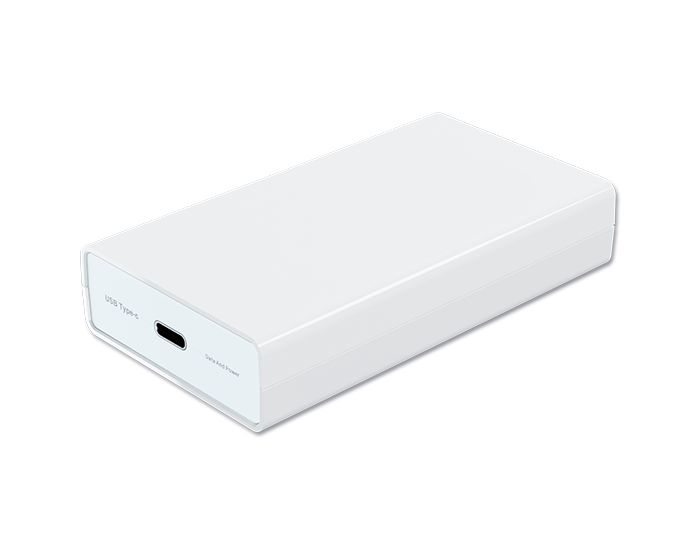

MC-POEADAPTER-22W-USB-C PoE adapter Fast Ethernet
20 V
Model MC-POEADAPTER-22W-USB-CEAN 5704174977414
34 specifications
- Weight63 g
- ColourWhite
- Ethernet interface typeFast Ethernet
- RJ-45 input ports1
- Power over Ethernet (PoE) voltage20 V
- Operating temperature (T-T)-20 - 40 °C
Overview
- Weight
- 63 g
- Colour
- White
- Ethernet interface type
- Fast Ethernet
- RJ-45 input ports
- 1
- Power over Ethernet (PoE) voltage
- 20 V
- Operating temperature (T-T)
- -20 - 40 °C
- Brand
- Microconnect
- Category
- PoE Adapter
- Model
- MC-POEADAPTER-22W-USB-C
- Part number
- MC-POEADAPTER-22W-USB-C
- EAN / UPC
- 5704174977414
- Also known as
- Microconnect MC-POEADAPTER-22W-USB-C PoE adapter Fast Ethernet 20 V
Specifications
34 specifications in 10 groups
Network
| Specification | Value |
|---|---|
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN data rates | 100 Mbit/s |
| Cabling technology | 10/100 |
| Power over Ethernet (PoE) | Yes |
| Cable types supported | Cat5 |
| Networking standards | IEEE 802.3at |
Features
| Specification | Value |
|---|---|
| Product colour | White |
| Housing material | Plastic |
| Easy to install | Yes |
| Fast charging | Yes |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| Maximum operating distance | 100 m |
| LED indicators | Yes |
| International Protection (IP) code | IP40 |
Ports & interfaces
| Specification | Value |
|---|---|
| RJ-45 input ports | 1 |
| USB Type-C ports quantity | 1 |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) voltage | 20 V |
| Output power | 22 W |
| Input voltage | 44-57 V |
| Output current | 3 A |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -20 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating altitude | 0 - 2000 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 51 mm |
| Depth | 18.5 mm |
| Height | 91 mm |
| Weight | 63 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 70 g |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
