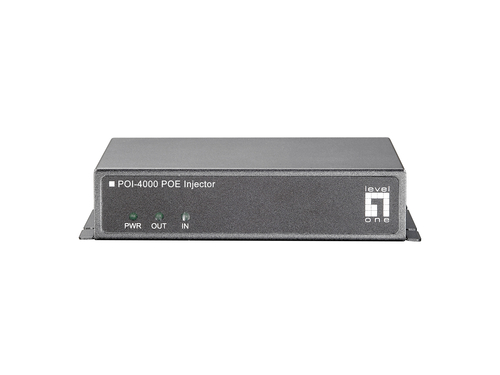

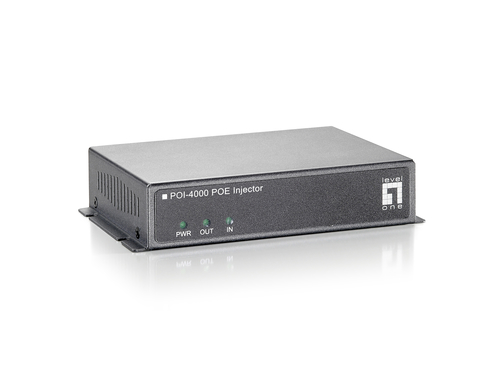

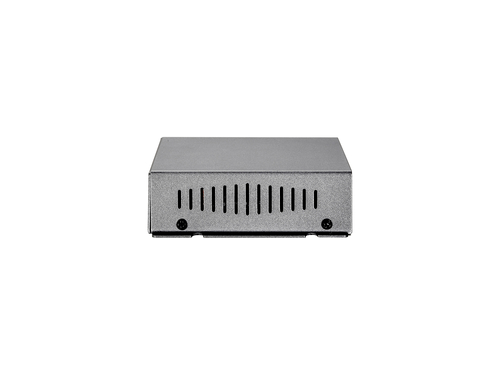

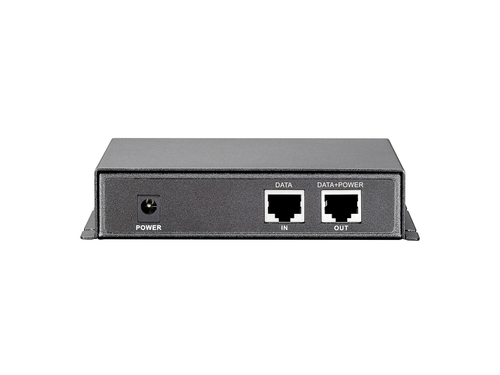

LevelOne PoE Injector

PoE Injector

56W

Model POI-4000EAN 998543264907

27 specifications

ColourGrey
Ethernet interface typeFast Ethernet
Ethernet LAN (RJ-45) ports2
Power over Ethernet (PoE) voltage56 V
Operating temperature (T-T)0 - 50 °C
Width90 mm

See all specifications

Overview

Colour: Grey
Ethernet interface type: Fast Ethernet
Ethernet LAN (RJ-45) ports: 2
Power over Ethernet (PoE) voltage: 56 V
Operating temperature (T-T): 0 - 50 °C
Width: 90 mm

Brand: LevelOne
Category: PoE Adapter
Model: POI-4000
Part number: POI-4000
EAN / UPC: 998543264907, 878742006785, 895234246399, 4015867148785 +1 more
Also known as: LevelOne PoE Injector, 56W

Specifications

27 specifications in 8 groups

Network

Specification	Value
Ethernet interface type	Fast Ethernet
Ethernet LAN data rates	10,100 Mbit/s
Cabling technology	10/100
Power over Ethernet (PoE)	Yes
Auto MDI/MDI-X	Yes
Networking standards	IEEE 802.3x

Features

Specification	Value
Product colour	Grey
Plug and Play	Yes
Maximum operating distance	100 m
LED indicators	LAN, Power
Pin assignment & polarity	4/5 (+), 7/8 (-)
Power protection features	Over voltage, Overcharge

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	2
DC-in jack	Yes

Power

Specification	Value
Power over Ethernet (PoE) voltage	56 V
Input voltage	24 V
Input current	2.7 A
Output current	1 A
Total Power over Ethernet (PoE) budget	56 W

Certificates

Specification	Value
Certification	FCC Rules Part 15 Class A CE

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 90%

Weight & dimensions

Specification	Value
Width	90 mm
Depth	120 mm
Height	28 mm

Packaging content

Specification	Value
Number of products included	1 pc(s)
AC adapter included	Yes
