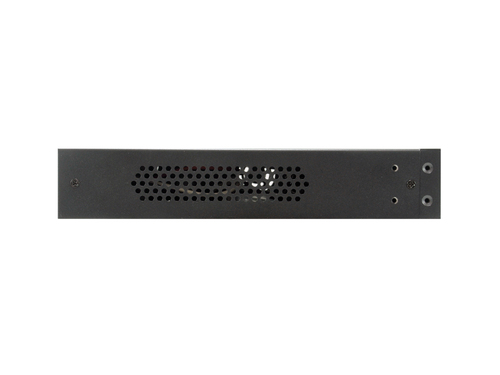

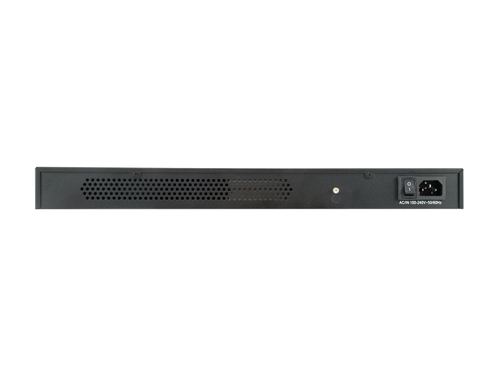

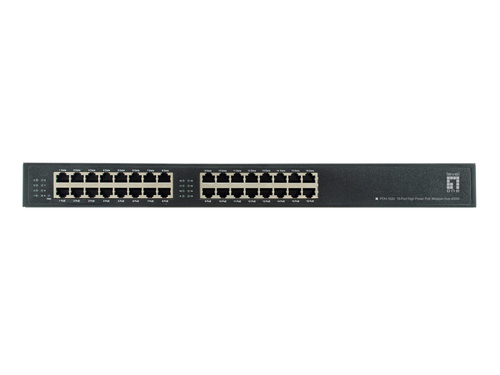

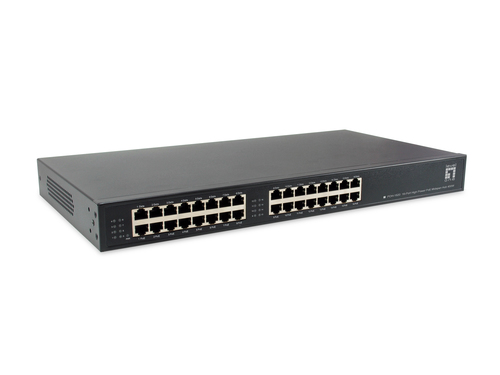

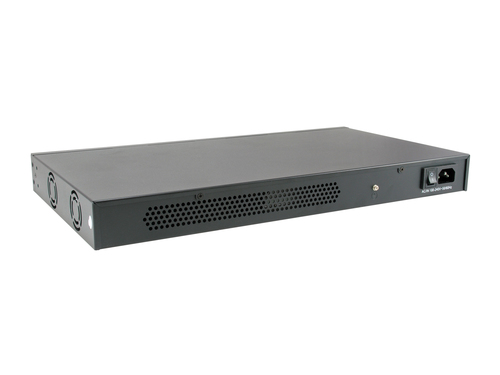

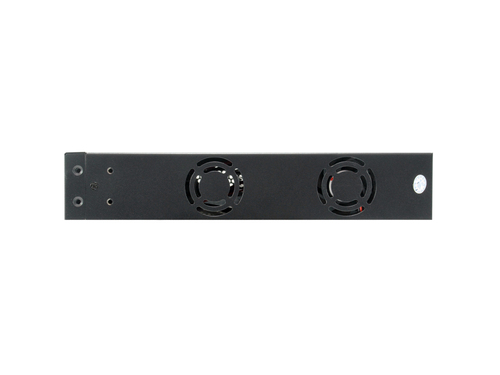

POH-1620 16-Port High Power PoE Midspan Hub ,400W
Model POH-1620EAN 846359057971
36 specifications
- Weight5 kg
- ColourBlack
- Ethernet interface typeFast Ethernet, Gigabit Ethernet
- RJ-45 input ports16
- Power consumption (max)20 W
- Operating temperature (T-T)0 - 40 °C
Overview
- Weight
- 5 kg
- Colour
- Black
- Ethernet interface type
- Fast Ethernet, Gigabit Ethernet
- RJ-45 input ports
- 16
- Power consumption (max)
- 20 W
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- LevelOne
- Category
- PoE Adapter
- Model
- POH-1620
- Part number
- POH-1620
- EAN / UPC
- 846359057971, 4015867228821
- Also known as
- LevelOne POH-1620 16-Port High Power PoE Midspan Hub ,400W
Specifications
36 specifications in 9 groups
Network
| Specification | Value |
|---|---|
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Power over Ethernet (PoE) | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Rack mounting | Yes |
| Rack capacity | 1U |
| LED indicators | Link, PoE, Power |
Ports & interfaces
| Specification | Value |
|---|---|
| RJ-45 input ports | 16 |
| RJ-45 output ports | 16 |
Power
| Specification | Value |
|---|---|
| Power consumption (max) | 20 W |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 400 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 235 mm |
| Height | 43 mm |
| Weight | 5 kg |
Packaging content
| Specification | Value |
|---|---|
| Power cord included | Yes |
| Quick installation guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 245 mm |
| Package depth | 50 mm |
| Package height | 450 mm |
| Package weight | 6 kg |
| Package type | Box |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) cases per pallet (sea) | 10 pc(s) |
| Pallet gross length | 80 cm |
| Pallet gross width | 120 cm |
| Pallet height (sea) | 166.6 cm |
| Master (outer) case width | 450 mm |
| Master (outer) case length | 380 mm |
| Master (outer) case height | 510 mm |
| Master (outer) case gross weight | 28 kg |
| Products per master (outer) case | 5 pc(s) |
| Country of origin | China |
