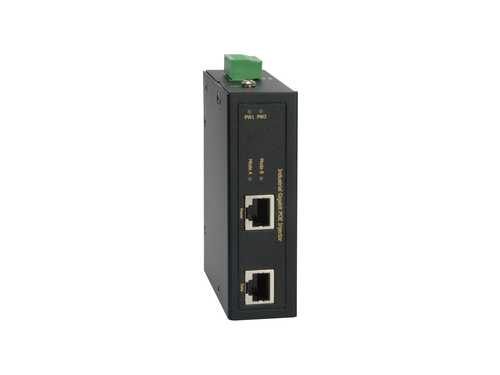

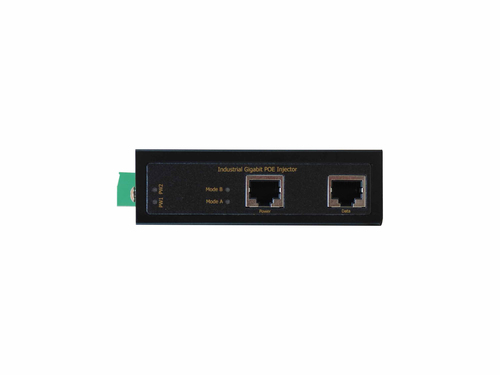

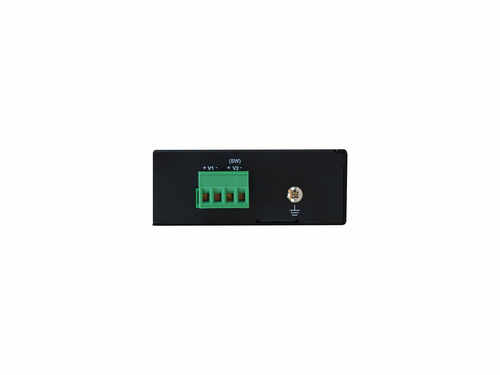

IGP-0102 PoE adapter Gigabit Ethernet
Model IGP-0102EAN 4015867196595
24 specifications
- Weight140 g
- ColourBlack
- Ethernet interface typeGigabit Ethernet
- Ethernet LAN (RJ-45) ports2
- Input voltage15 - 56 V
- Operating temperature (T-T)-40 - 75 °C
Overview
- Weight
- 140 g
- Colour
- Black
- Ethernet interface type
- Gigabit Ethernet
- Ethernet LAN (RJ-45) ports
- 2
- Input voltage
- 15 - 56 V
- Operating temperature (T-T)
- -40 - 75 °C
- Brand
- LevelOne
- Category
- PoE Adapter
- Model
- IGP-0102
- Part number
- IGP-0102
- EAN / UPC
- 4015867196595
- Also known as
- LevelOne IGP-0102 PoE adapter Gigabit Ethernet
Specifications
24 specifications in 9 groups
Network
| Specification | Value |
|---|---|
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 1000 Mbit/s |
| Power over Ethernet (PoE) | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Plug and Play | Yes |
| Maximum operating distance | 100 m |
| LED indicators | Link |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
Power
| Specification | Value |
|---|---|
| Input voltage | 15 - 56 V |
| Power over Ethernet (PoE) power per port | 36 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 81.5 mm |
| Depth | 32 mm |
| Height | 103 mm |
| Weight | 140 g |
Packaging content
| Specification | Value |
|---|---|
| Number of products included | 1 pc(s) |
Packaging data
| Specification | Value |
|---|---|
| Package width | 165 mm |
| Package depth | 65 mm |
| Package height | 215 mm |
| Package weight | 370 g |
| Package type | Box |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85044095 |
