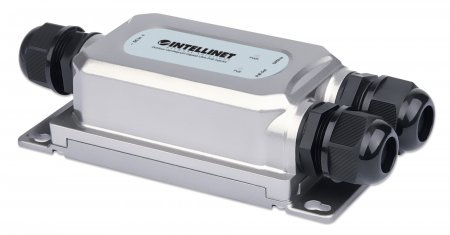

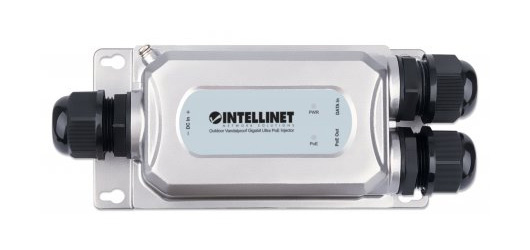

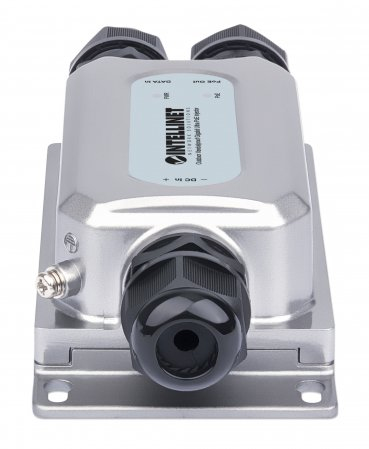

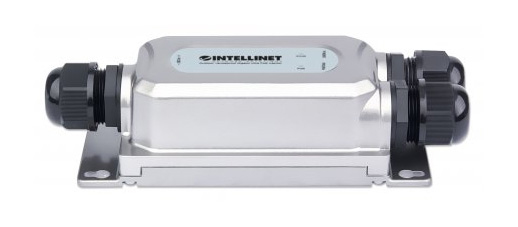

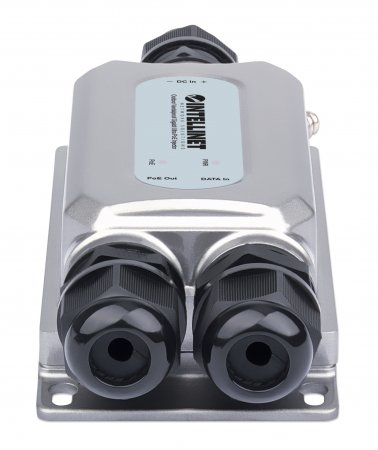

Outdoor Vandalproof Gigabit PoE++ Injector, One
60 W Port, IEEE 802.3bt (4PPoE) Compliant, IP67 Waterproof, IK10 Vandalproof, Metal Housing
Model 561785EAN 766623561785
35 specifications
- Weight475 g
- ColourBlack, Grey
- Ethernet interface typeGigabit Ethernet
- RJ-45 input ports1
- Output power60 W
- Operating temperature (T-T)-40 - 75 °C
Overview
- Weight
- 475 g
- Colour
- Black, Grey
- Ethernet interface type
- Gigabit Ethernet
- RJ-45 input ports
- 1
- Output power
- 60 W
- Operating temperature (T-T)
- -40 - 75 °C
- Brand
- Intellinet
- Category
- PoE Adapter
- Model
- 561785
- Part number
- 561785
- EAN / UPC
- 766623561785
- Also known as
- Intellinet Outdoor Vandalproof Gigabit PoE++ Injector, One 60 W Port, IEEE 802.3bt (4PPoE) Compliant, IP67 Waterproof, IK10 Vandalproof, Metal Housing
Specifications
35 specifications in 9 groups
Network
| Specification | Value |
|---|---|
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Power over Ethernet (PoE) | Yes |
| Cable types supported | Cat5e, Cat6, Cat6a |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u |
Features
| Specification | Value |
|---|---|
| Product colour | Black, Grey |
| Plug and Play | Yes |
| Surge protection | Yes |
| Maximum operating distance | 100 m |
| LED indicators | Yes |
| Terminal block port | Yes |
| International Protection (IP) code | IP67 |
| Power protection features | Over voltage, Overload, Short circuit |
Ports & interfaces
| Specification | Value |
|---|---|
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
Power
| Specification | Value |
|---|---|
| Output power | 60 W |
| Input voltage | 24 - 56 V |
| Input current | 3.05 A |
| Output current | 1.2 A |
| Power consumption (max) | 72 W |
| DC output voltage | 55 V |
| Surge protection voltage | 6 kV |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS, Federal Communications Commission (FCC) |
| Certification | FCC Class A, CE, RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 80 °C |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 73 mm |
| Depth | 150 mm |
| Height | 44 mm |
| Weight | 475 g |
Packaging content
| Specification | Value |
|---|---|
| Number of products included | 1 pc(s) |
| Manual | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85044095 |
