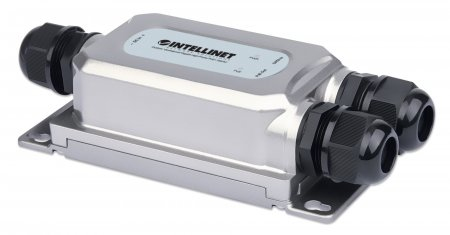

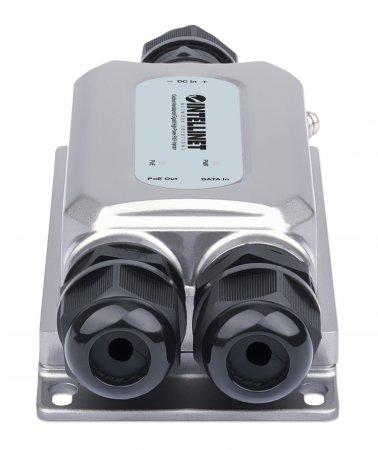

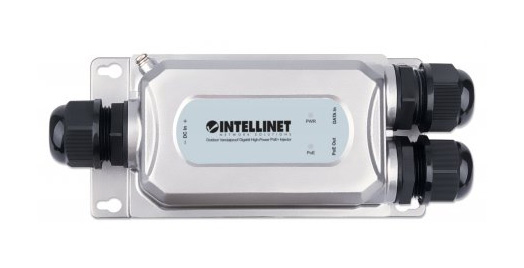

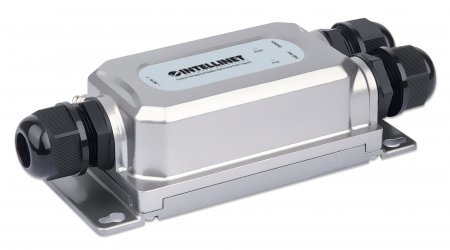

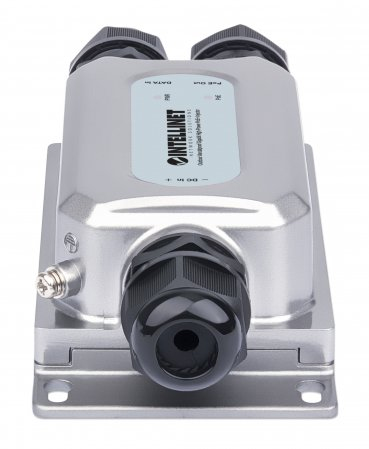

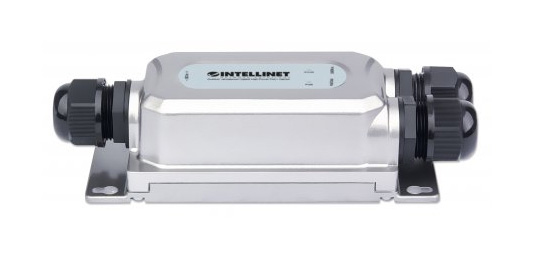

Outdoor Vandalproof Gigabit High-Power PoE+ Injector, One
30 W Port, IEEE 802.3at/af Compliant, IP67 Waterproof, IK10 Vandal-proof, Metal Housing
Model 561778EAN 766623561778
31 specifications
- Weight386 g
- ColourBlack, Grey
- Ethernet interface typeFast Ethernet, Gigabit Ethernet
- RJ-45 input ports1
- Output power30 W
- Operating temperature (T-T)-40 - 75 °C
Overview
- Weight
- 386 g
- Colour
- Black, Grey
- Ethernet interface type
- Fast Ethernet, Gigabit Ethernet
- RJ-45 input ports
- 1
- Output power
- 30 W
- Operating temperature (T-T)
- -40 - 75 °C
- Brand
- Intellinet
- Category
- PoE Adapter
- Model
- 561778
- Part number
- 561778
- EAN / UPC
- 766623561778
- Also known as
- Intellinet Outdoor Vandalproof Gigabit High-Power PoE+ Injector, One 30 W Port, IEEE 802.3at/af Compliant, IP67 Waterproof, IK10 Vandal-proof, Metal Housing
Specifications
31 specifications in 9 groups
Network
| Specification | Value |
|---|---|
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Power over Ethernet (PoE) | Yes |
| Cable types supported | Cat5e, Cat6, Cat6a |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u |
Features
| Specification | Value |
|---|---|
| Product colour | Black, Grey |
| Plug and Play | Yes |
| Maximum operating distance | 100 m |
| LED indicators | Yes |
| Terminal block port | Yes |
| International Protection (IP) code | IP67 |
Ports & interfaces
| Specification | Value |
|---|---|
| RJ-45 input ports | 1 |
Power
| Specification | Value |
|---|---|
| Output power | 30 W |
| Input voltage | 24 - 56 V |
| Input current | 1.5 A |
| Output current | 0.6 A |
| Power consumption (max) | 36 W |
| DC output voltage | 55 V |
| Surge protection voltage | 6 kV |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC Class A, CE, RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 80 °C |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 73 mm |
| Depth | 150 mm |
| Height | 44 mm |
| Weight | 386 g |
Packaging content
| Specification | Value |
|---|---|
| Number of products included | 1 pc(s) |
| Manual | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85044095 |
