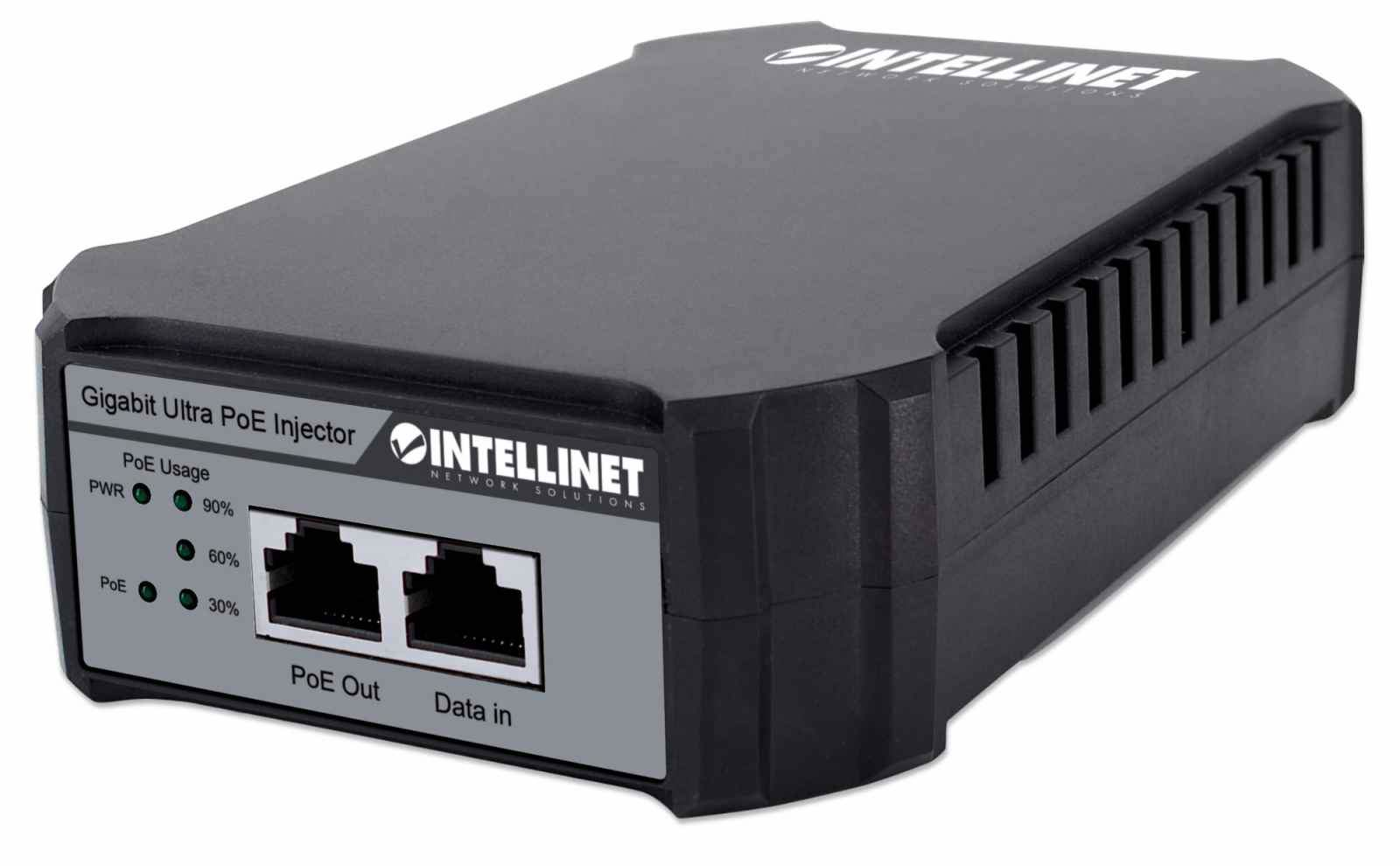

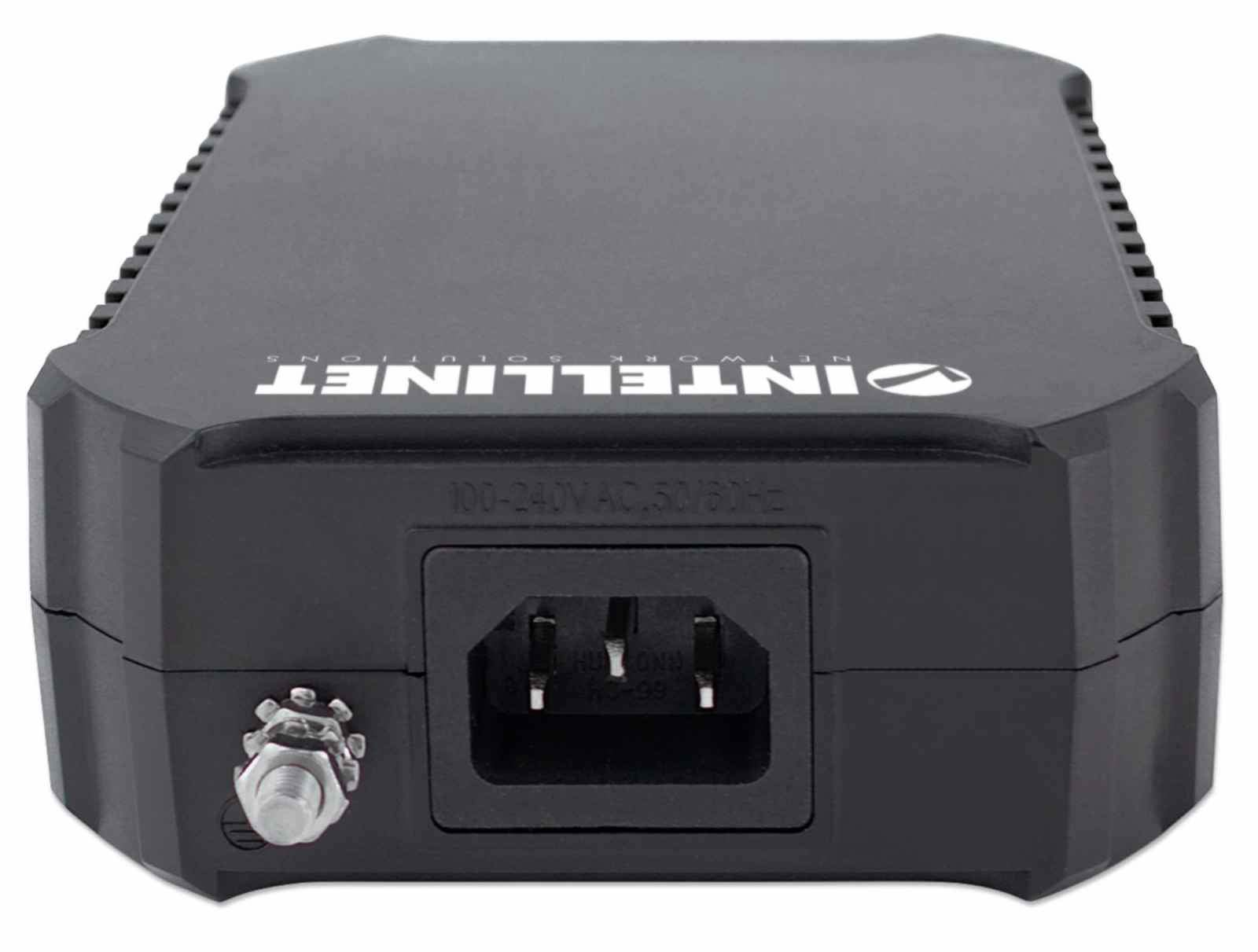

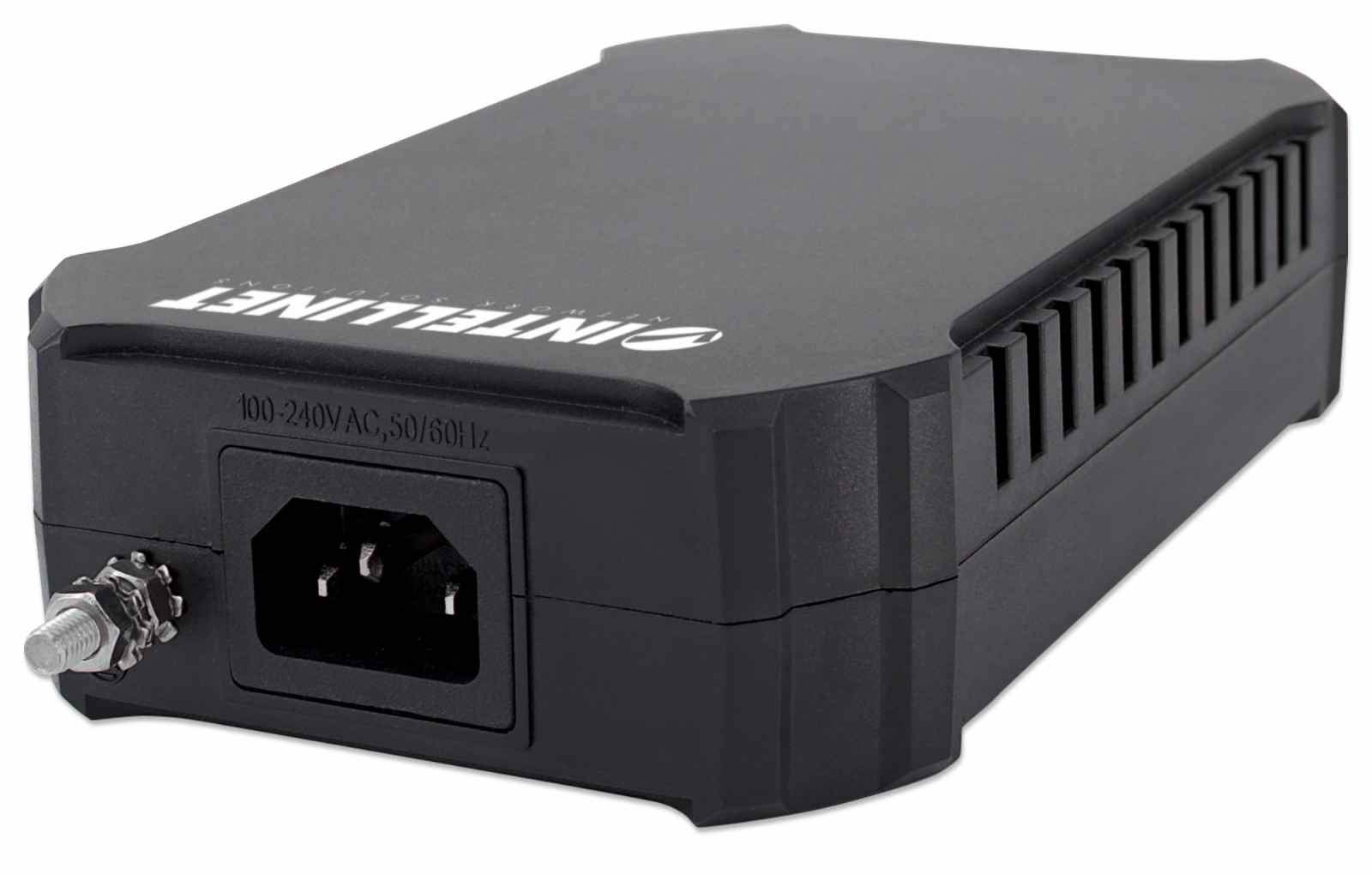

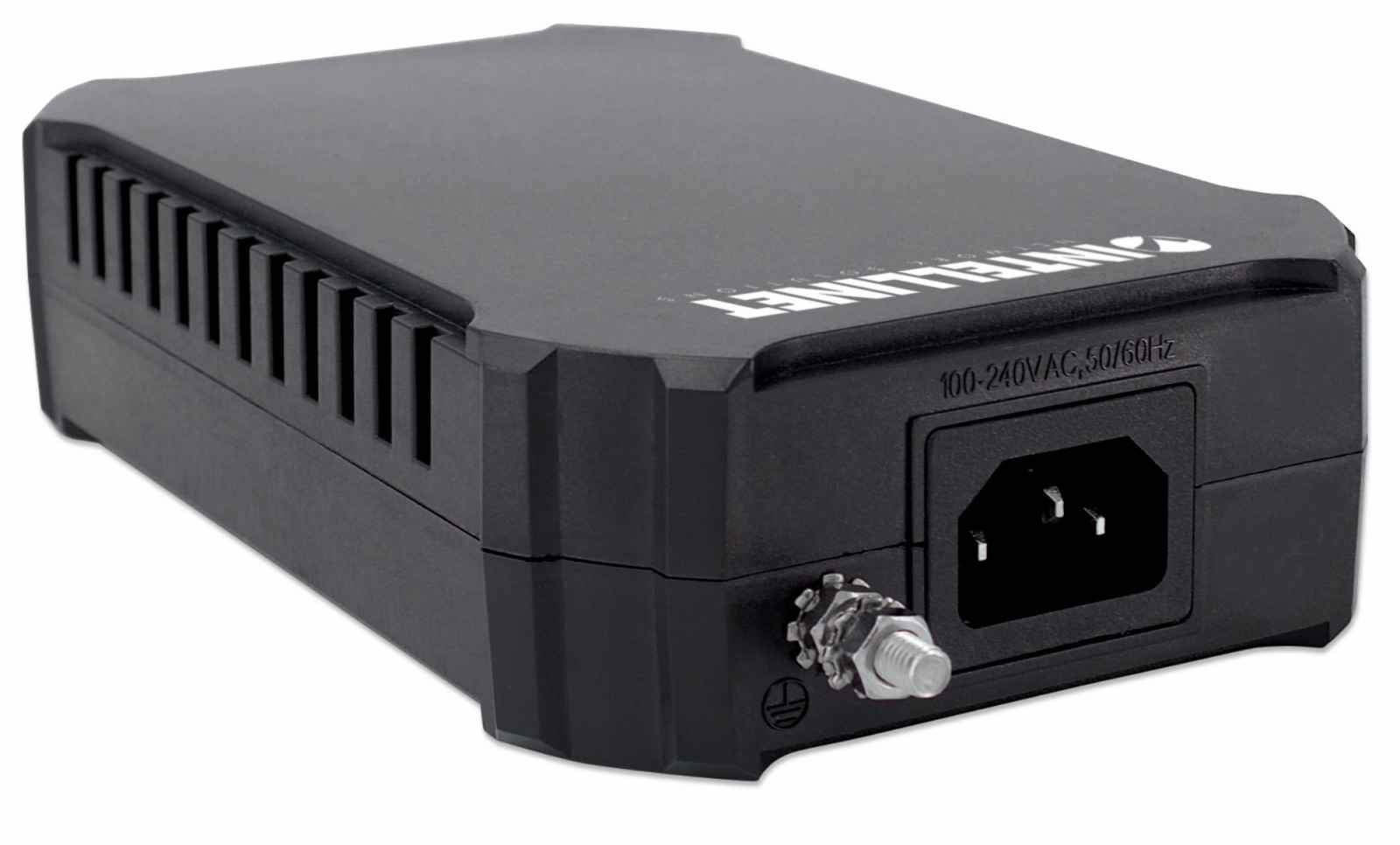

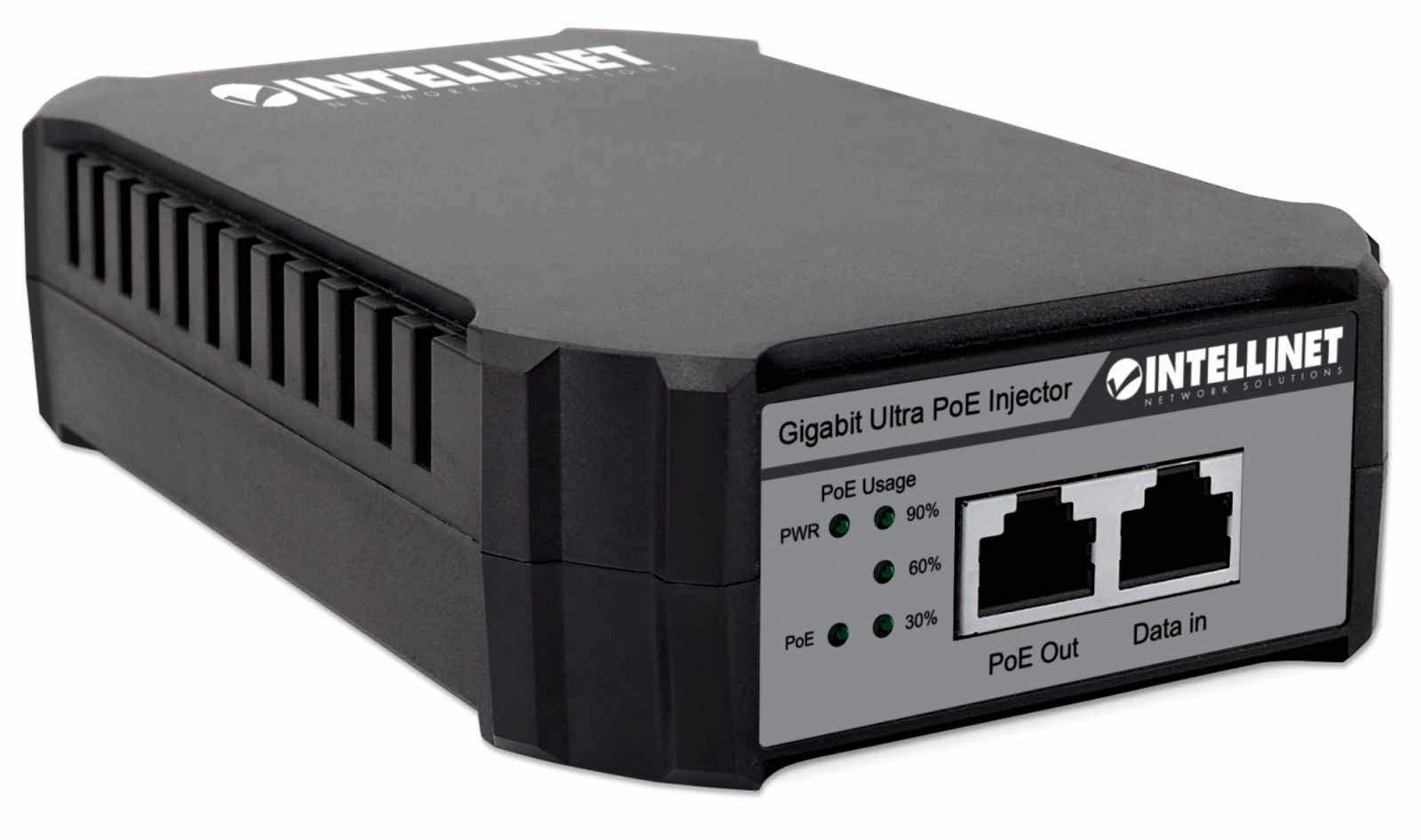

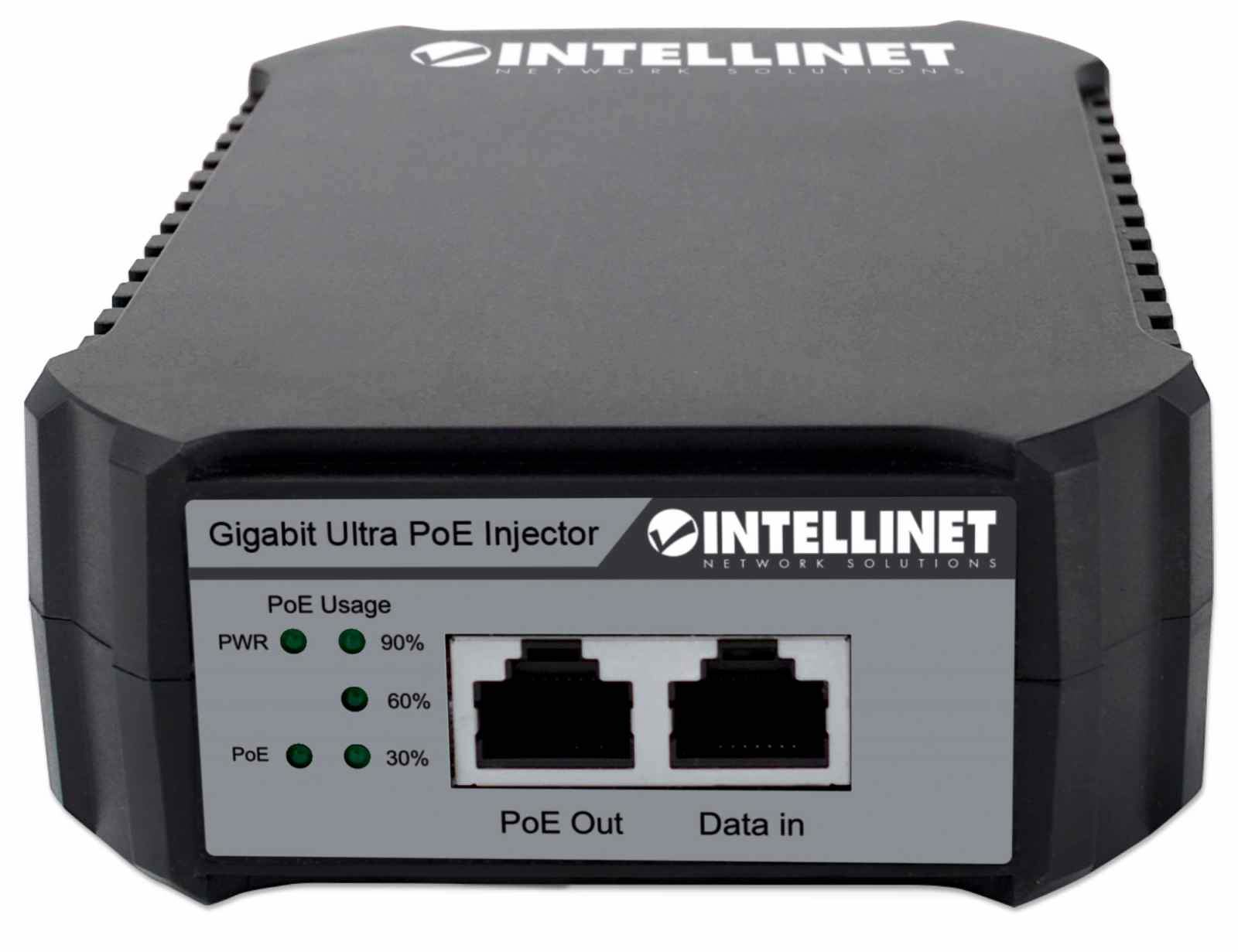

PoE Injector 10/100/1000 Mbit/s
95W (UK 3-pin plug)
Model 561495-UKEAN 766623561655
28 specifications
- Weight502 g
- ColourBlack, Grey
- Ethernet interface typeGigabit Ethernet
- Ethernet LAN (RJ-45) ports2
- Input voltage100 - 240 V
- Operating temperature (T-T)0 - 40 °C
Overview
- Weight
- 502 g
- Colour
- Black, Grey
- Ethernet interface type
- Gigabit Ethernet
- Ethernet LAN (RJ-45) ports
- 2
- Input voltage
- 100 - 240 V
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- Intellinet
- Category
- PoE Adapter
- Model
- 561495-UK
- Part number
- 561495-UK
- EAN / UPC
- 766623561655
- Also known as
- Intellinet PoE Injector 10/100/1000 Mbit/s 95W (UK 3-pin plug)
Specifications
28 specifications in 8 groups
Network
| Specification | Value |
|---|---|
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Power over Ethernet (PoE) | Yes |
| Cable types supported | Cat5, Cat5e |
| Networking standards | IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u |
Features
| Specification | Value |
|---|---|
| Product colour | Black, Grey |
| Wall mountable | Yes |
| Maximum operating distance | 100 m |
| LED indicators | Data, PoE, Power |
| Power protection features | Over current, Over voltage, Short circuit |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
Power
| Specification | Value |
|---|---|
| Input voltage | 100 - 240 V |
| Input frequency | 50 - 60 Hz |
| Total Power over Ethernet (PoE) budget | 95 W |
| Suitable for use in country/location | United Kingdom |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | CE, FCC Class A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating temperature (T-T) | 32 - 104 °F |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 100 mm |
| Depth | 190 mm |
| Height | 40 mm |
| Weight | 502 g |
Packaging content
| Specification | Value |
|---|---|
| Number of products included | 1 pc(s) |
| Power cord included | Yes |
| Manual | Yes |
