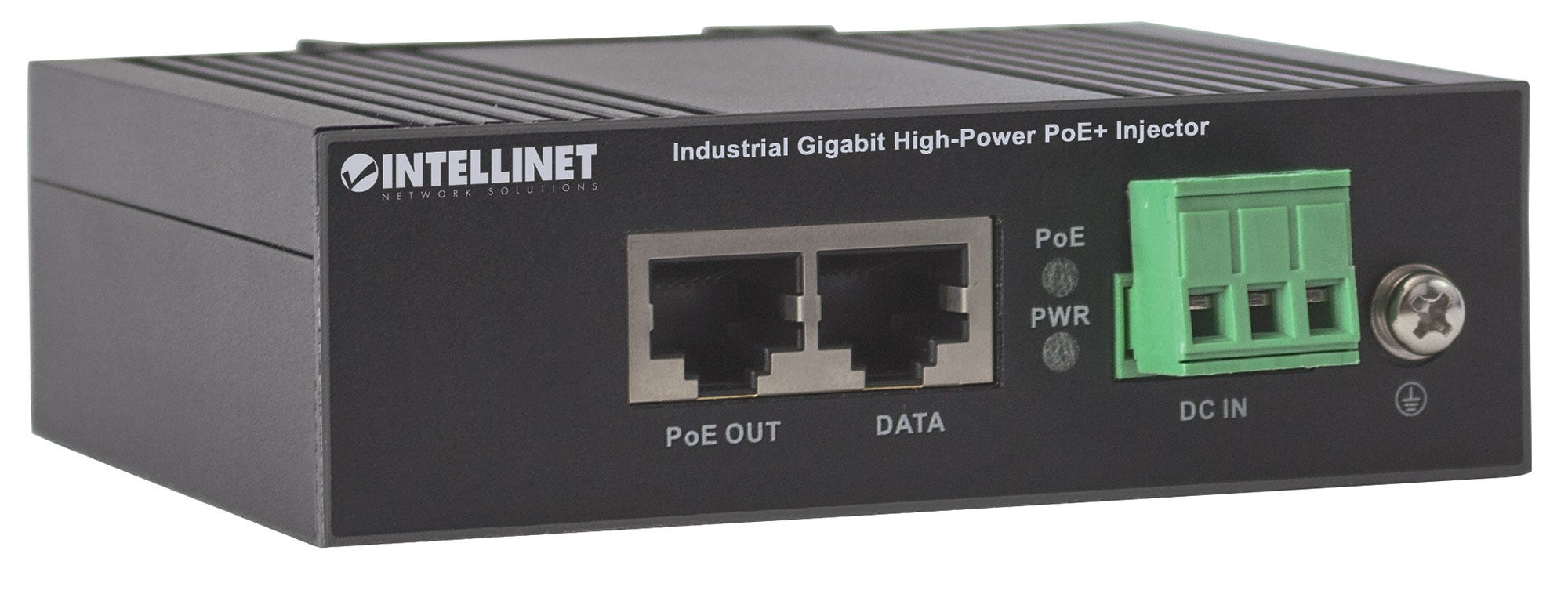

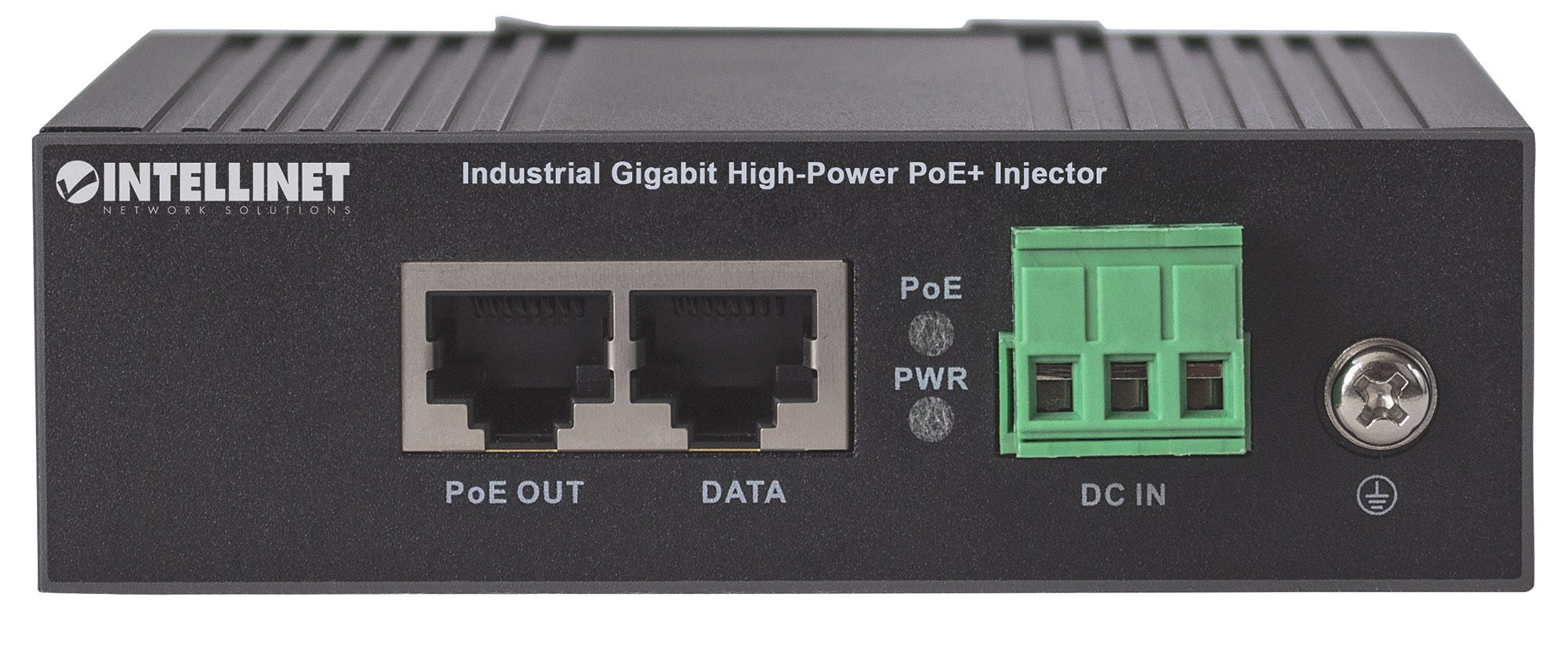

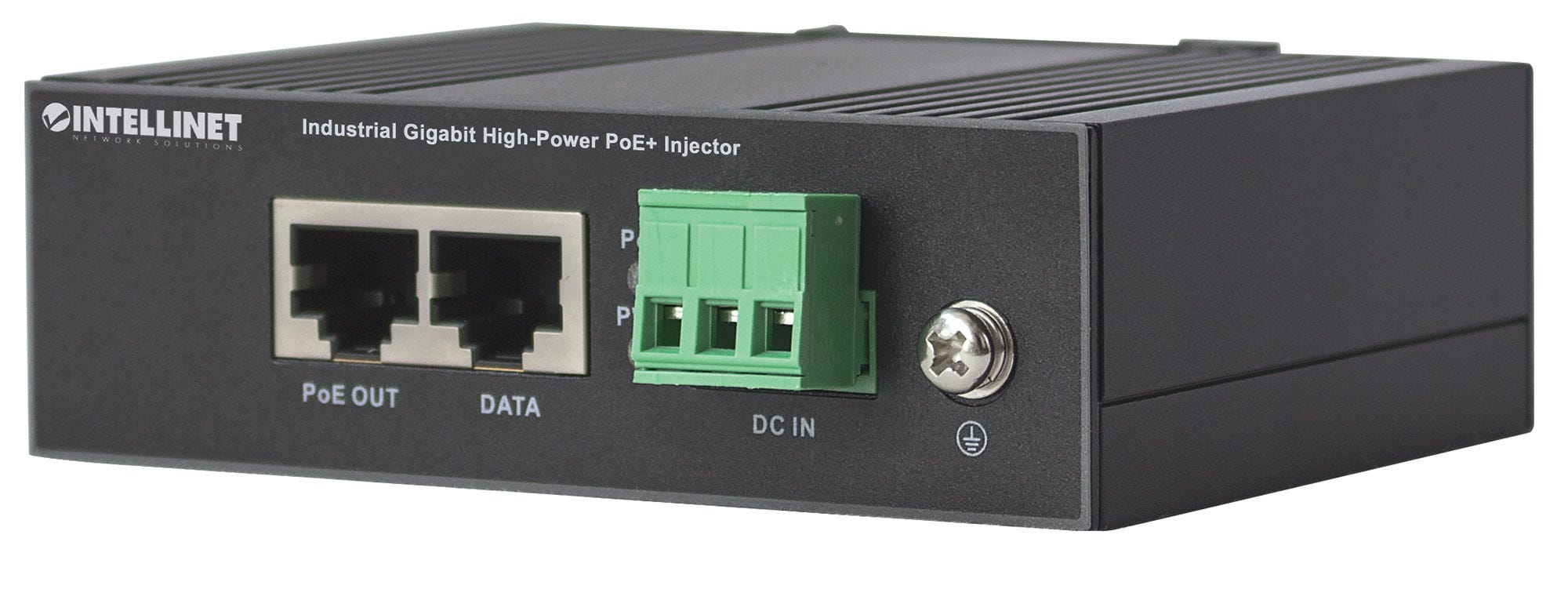

Industrial Gigabit High-Power PoE+ Injector
1 x 30 W Port, IEEE 802.3at/af Power over Ethernet (PoE+/PoE), Metal Housing
Model 561365EAN 766623561365
22 specifications
- Weight260 g
- ColourBlack
- Ethernet interface typeGigabit Ethernet
- Ethernet LAN (RJ-45) ports2
- Power over Ethernet (PoE) voltage56 V
- Operating temperature (T-T)-40 - 75 °C
Overview
- Weight
- 260 g
- Colour
- Black
- Ethernet interface type
- Gigabit Ethernet
- Ethernet LAN (RJ-45) ports
- 2
- Power over Ethernet (PoE) voltage
- 56 V
- Operating temperature (T-T)
- -40 - 75 °C
- Brand
- Intellinet
- Category
- PoE Adapter
- Model
- 561365
- Part number
- 561365
- EAN / UPC
- 766623561365
- Also known as
- Intellinet Industrial Gigabit High-Power PoE+ Injector, 1 x 30 W Port, IEEE 802.3at/af Power over Ethernet (PoE+/PoE), Metal Housing
Specifications
22 specifications in 9 groups
Network
| Specification | Value |
|---|---|
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Power over Ethernet (PoE) | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| LED indicators | PoE, Power |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) voltage | 56 V |
| Output power | 30 W |
| Input voltage | 45 – 56 |
| Total Power over Ethernet (PoE) budget | 30 W |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC Class A Part 15B CE |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -40 - 85 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 32 mm |
| Depth | 78 mm |
| Height | 103 mm |
| Weight | 260 g |
Packaging content
| Specification | Value |
|---|---|
| Number of products included | 1 pc(s) |
| Manual | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85044095 |
