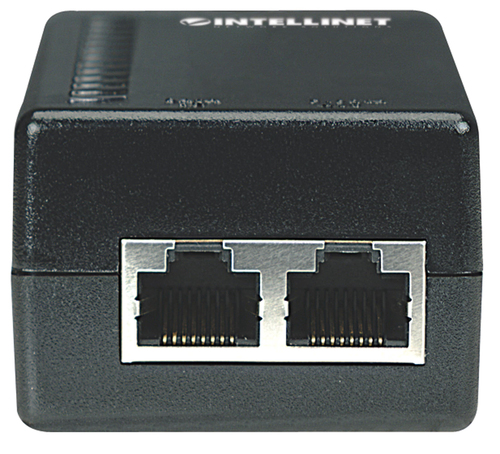

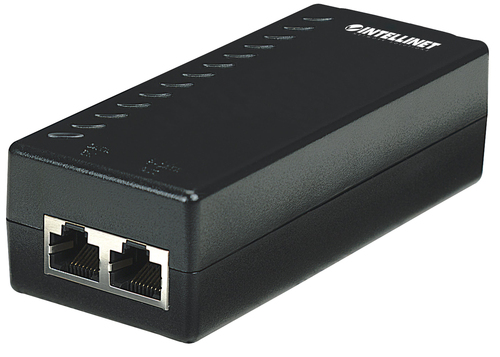

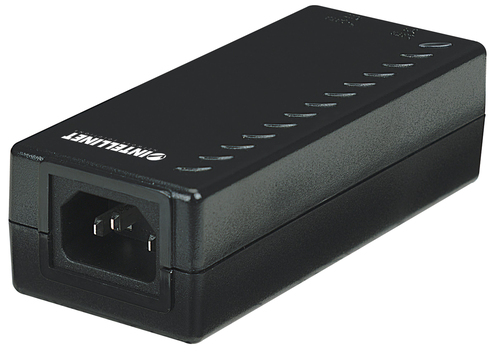

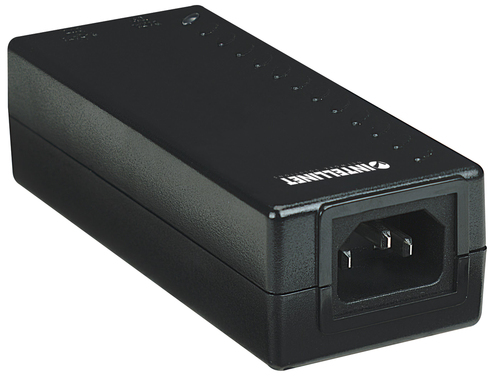

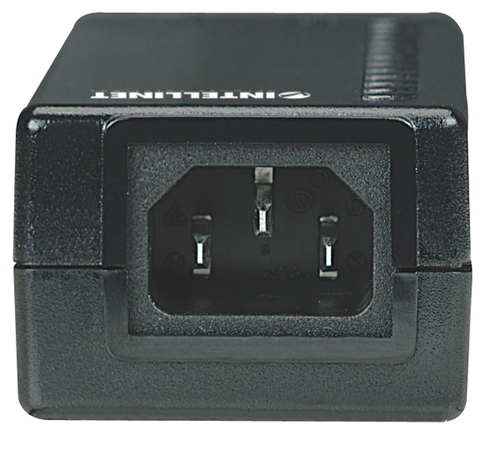

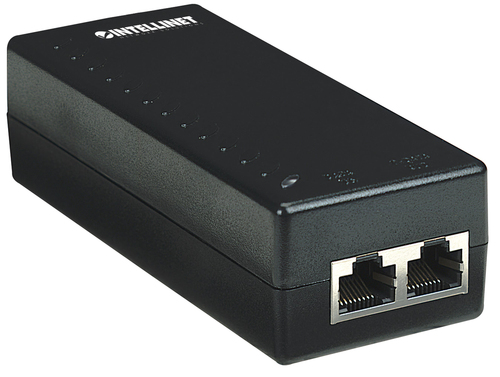

Power over Ethernet (PoE) Injector, 1 Port
48 V DC, IEEE 802.3af Compliant (UK Power Cord)
Model 524179-UKEAN 766623995863
22 specifications
- Weight510 g
- Ethernet interface typeFast Ethernet
- Ethernet LAN (RJ-45) ports2
- Power over Ethernet (PoE) voltage48 V
- Operating temperature (T-T)0 - 60 °C
- Width50 mm
Overview
- Weight
- 510 g
- Ethernet interface type
- Fast Ethernet
- Ethernet LAN (RJ-45) ports
- 2
- Power over Ethernet (PoE) voltage
- 48 V
- Operating temperature (T-T)
- 0 - 60 °C
- Width
- 50 mm
- Brand
- Intellinet
- Category
- PoE Adapter
- Model
- 524179-UK
- Part number
- 524179-UK
- EAN / UPC
- 766623995863
- Also known as
- Intellinet Power over Ethernet (PoE) Injector, 1 Port, 48 V DC, IEEE 802.3af Compliant (UK Power Cord)
Specifications
22 specifications in 8 groups
Network
| Specification | Value |
|---|---|
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Power over Ethernet (PoE) | Yes |
| Cable types supported | Cat5 |
| Networking standards | IEEE 802.3, IEEE 802.3af, IEEE 802.3u |
Features
| Specification | Value |
|---|---|
| Power protection features | Over voltage, Overload, Short circuit |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) voltage | 48 V |
| Input voltage | 100 - 240 V |
| Input frequency | 50/60 Hz |
| Power consumption (max) | 19 W |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC Class B, Part 15, CE 89/336/EEC |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -20 - 85 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 50 mm |
| Depth | 120 mm |
| Height | 35 mm |
| Weight | 510 g |
Packaging content
| Specification | Value |
|---|---|
| Number of products included | 1 pc(s) |
| AC adapter included | Yes |
| Manual | Yes |
