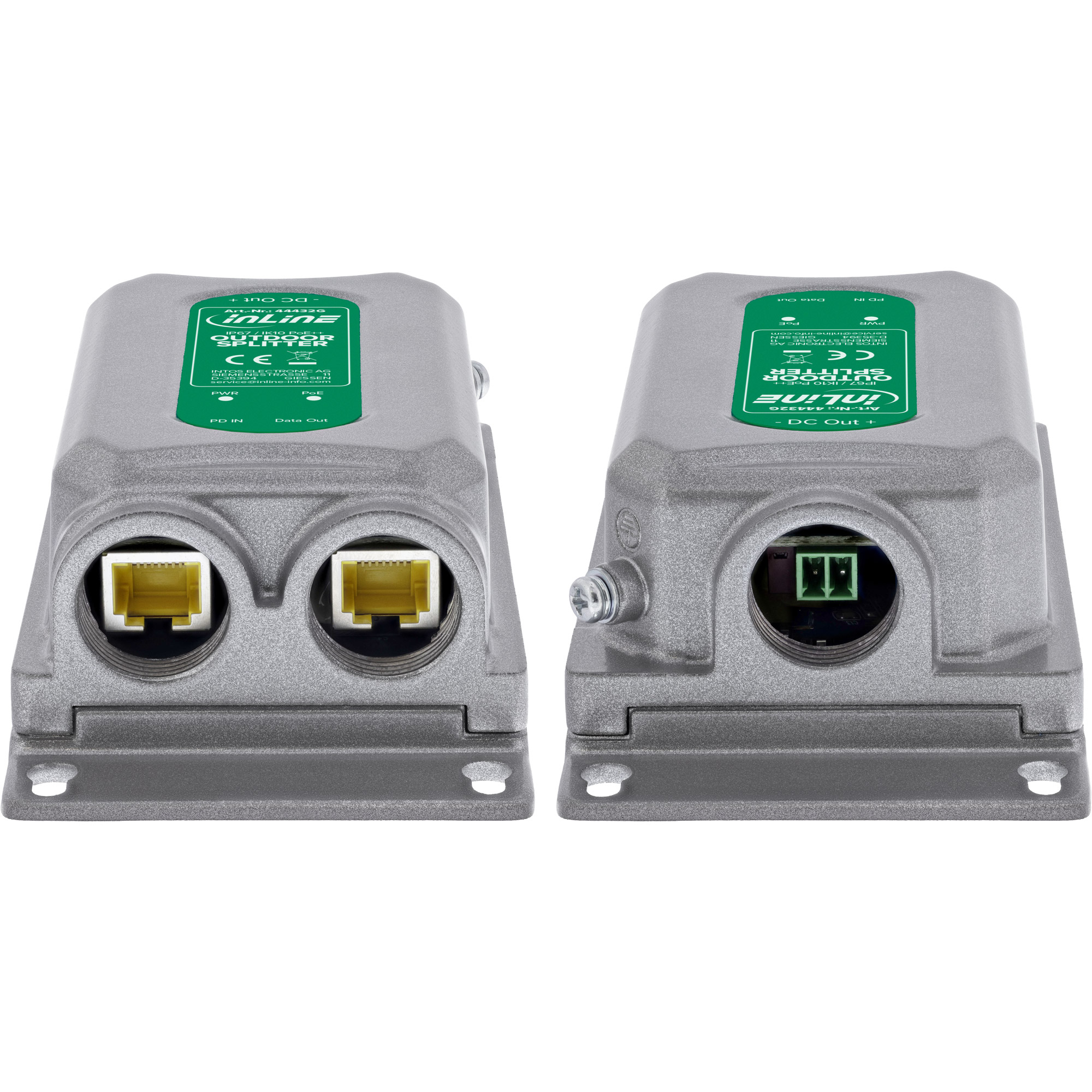

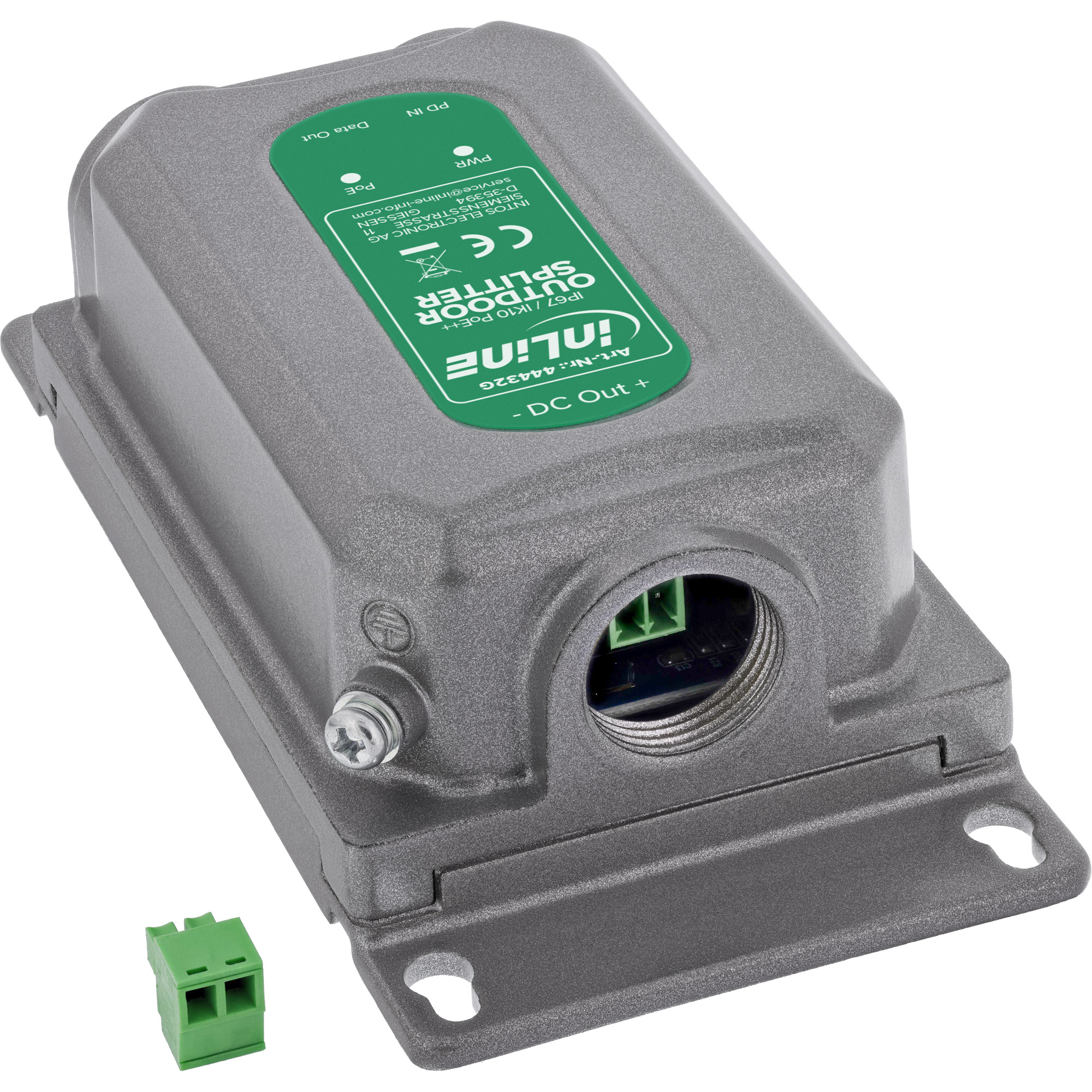

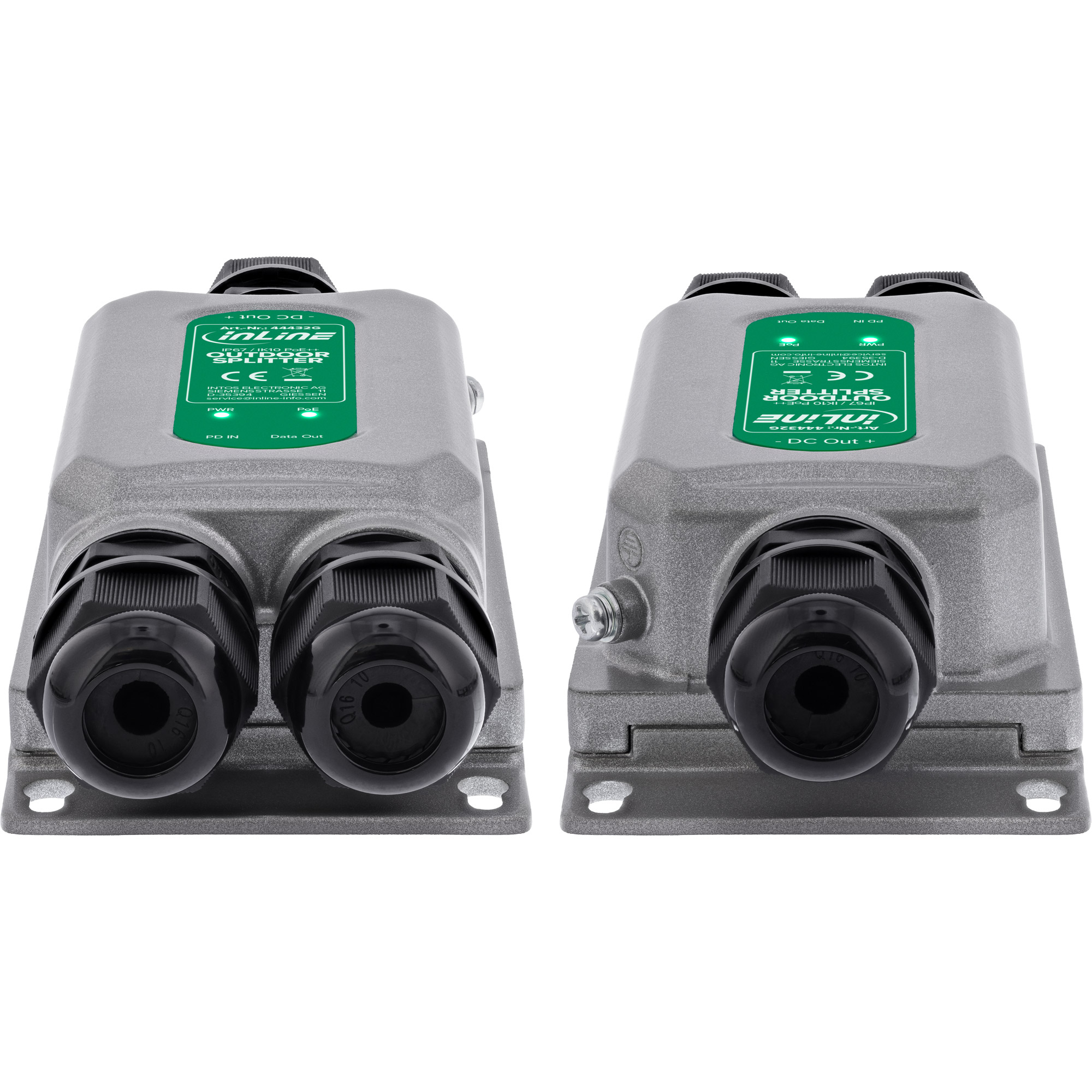

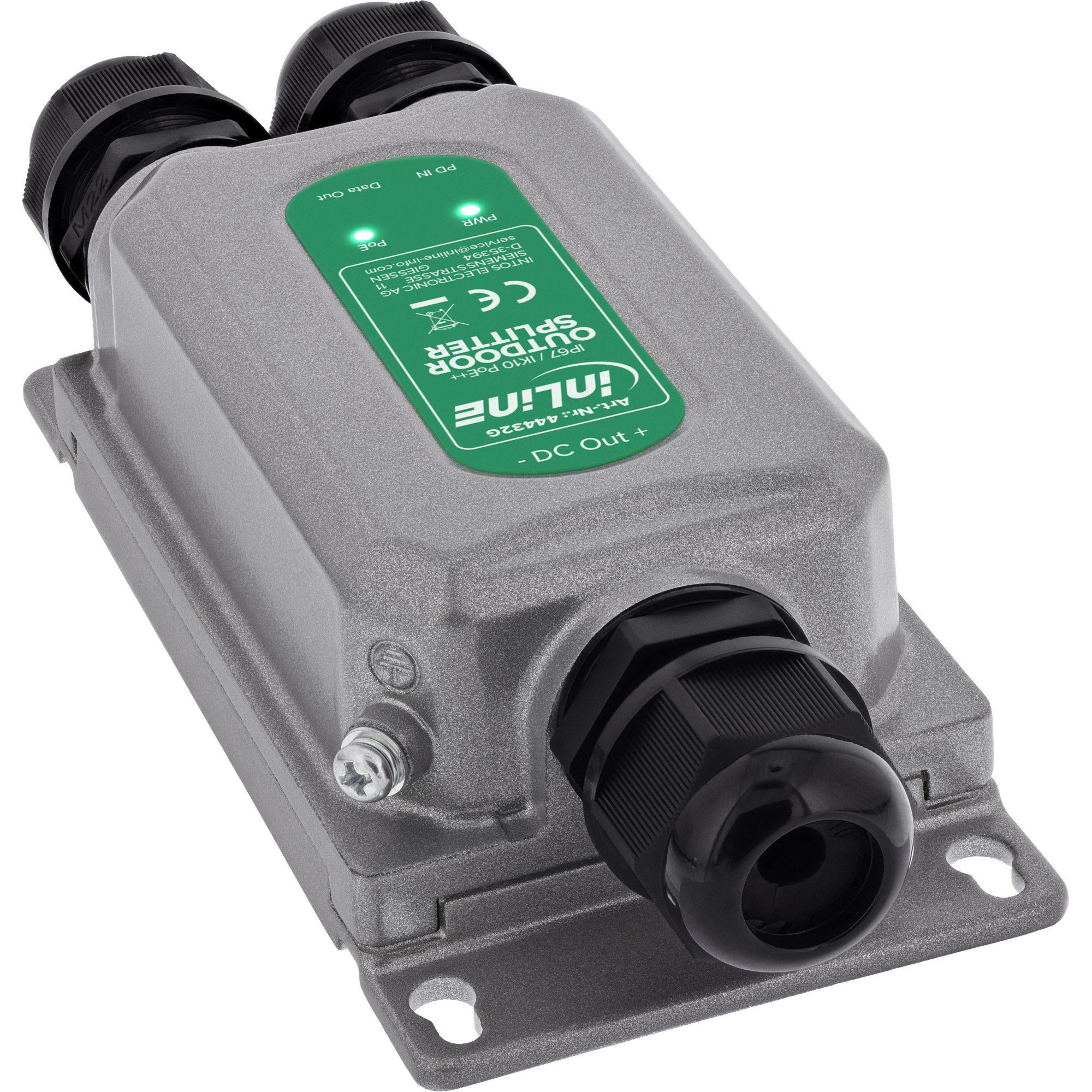

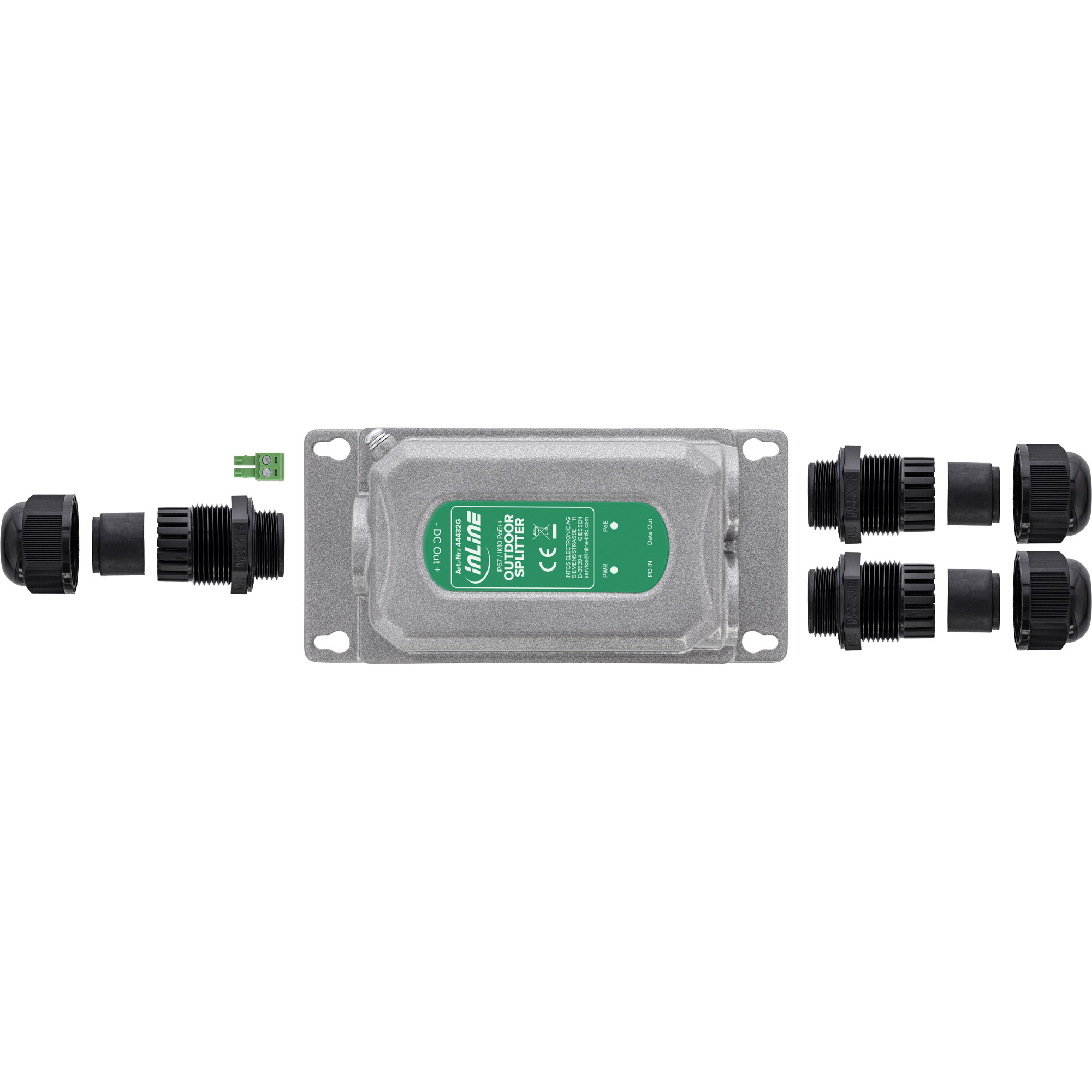

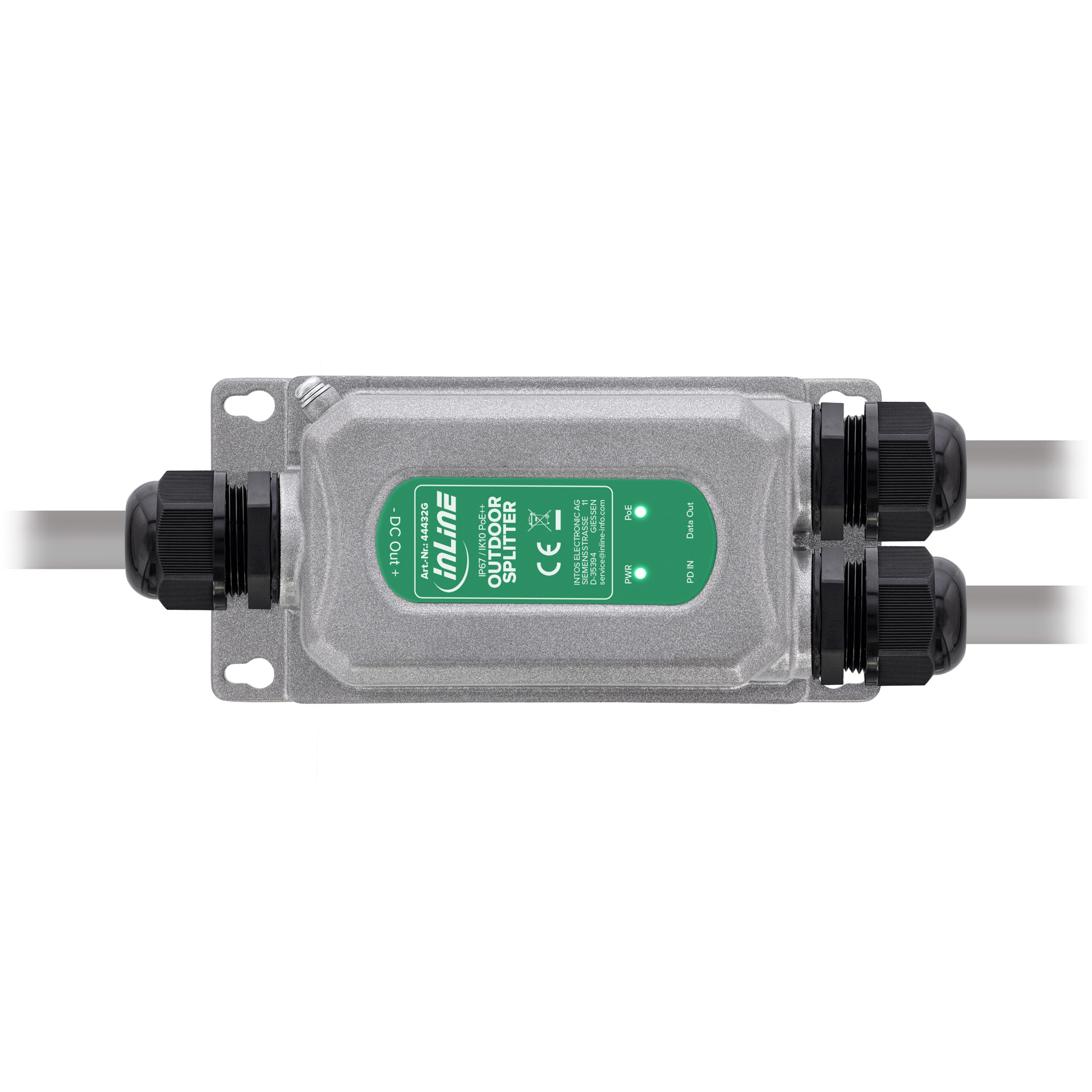

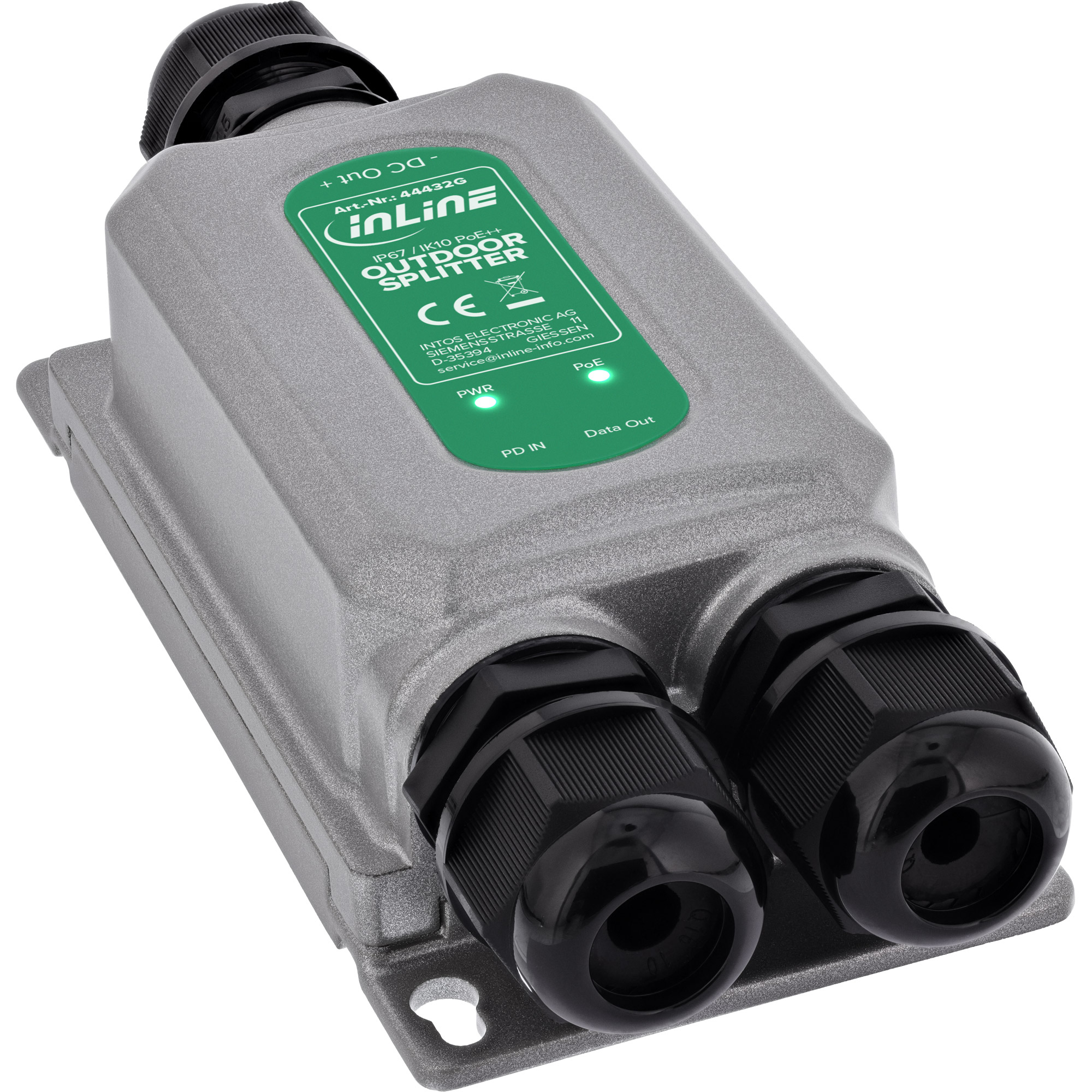

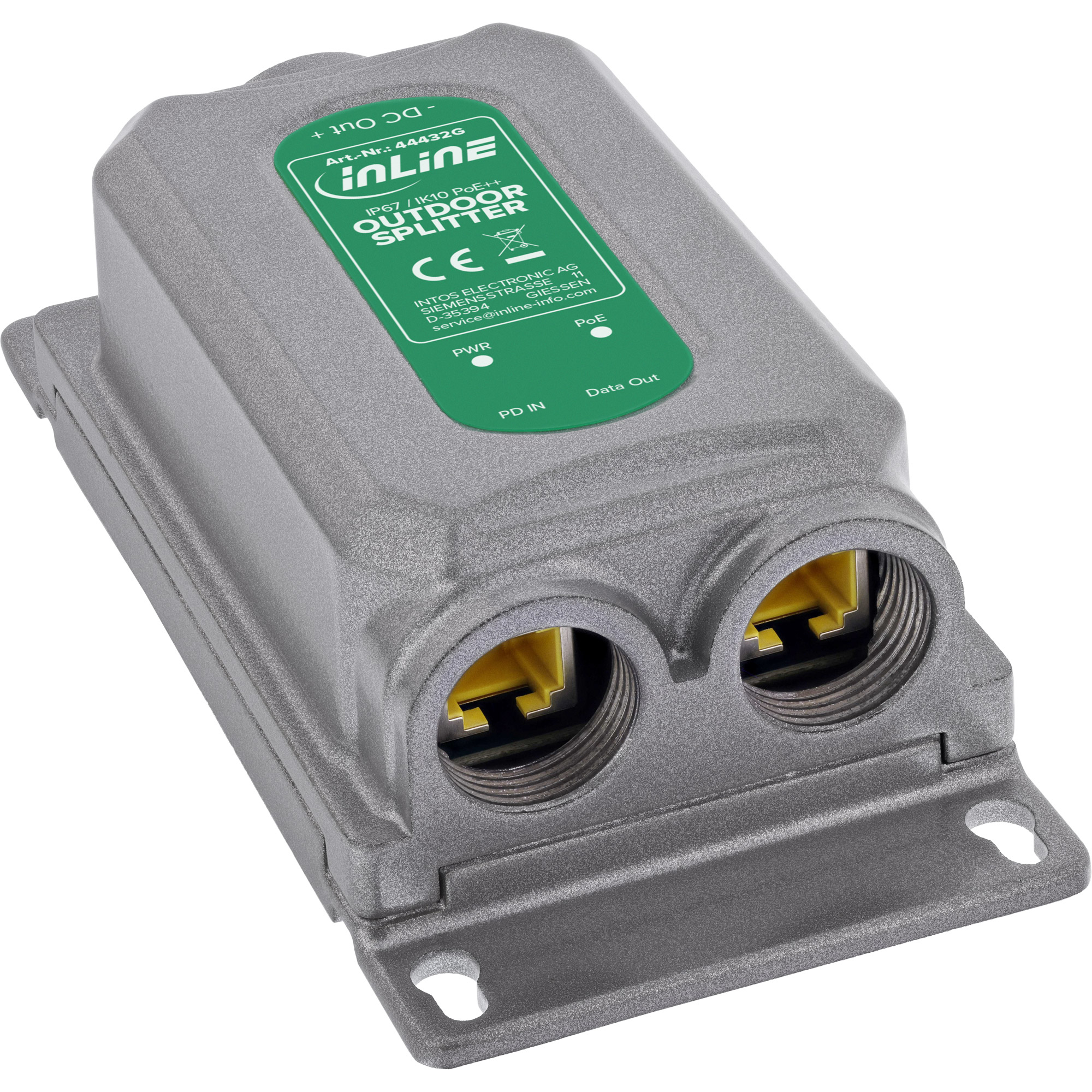

44432G PoE adapter Gigabit Ethernet
Model 44432GEAN 4043718352388
39 specifications
- Weight550 g
- ColourGrey
- Ethernet interface typeGigabit Ethernet
- Ethernet LAN (RJ-45) ports2
- Output power60 W
- Operating temperature (T-T)-40 - 75 °C
Overview
- Weight
- 550 g
- Colour
- Grey
- Ethernet interface type
- Gigabit Ethernet
- Ethernet LAN (RJ-45) ports
- 2
- Output power
- 60 W
- Operating temperature (T-T)
- -40 - 75 °C
- Brand
- InLine
- Category
- PoE Adapter
- Model
- 44432G
- Part number
- 44432G
- EAN / UPC
- 4043718352388
- Also known as
- InLine 44432G PoE adapter Gigabit Ethernet
Specifications
39 specifications in 10 groups
Network
| Specification | Value |
|---|---|
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000 |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE++ (4PPoE) |
| Power over Ethernet (PoE) modes | 4PPoE |
| Networking standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
Features
| Specification | Value |
|---|---|
| Product colour | Grey |
| Wall mountable | Yes |
| Easy to install | Yes |
| Rack mounting | No |
| Plug and Play | Yes |
| USB Power Delivery (USB PD) | No |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 2 |
| DC-in jack | No |
Power
| Specification | Value |
|---|---|
| Output power | 60 W |
| Output current | 5 A |
| Power over Ethernet (PoE) power per port | 60 W |
| Total Power over Ethernet (PoE) budget | 60 W |
Certificates
| Specification | Value |
|---|---|
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Certification | IP67, IK10 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 75 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 71 mm |
| Depth | 180 mm |
| Height | 44 mm |
| Weight | 550 g |
| Dimensions (WxDxH) | 71 x 180 x 44 mm |

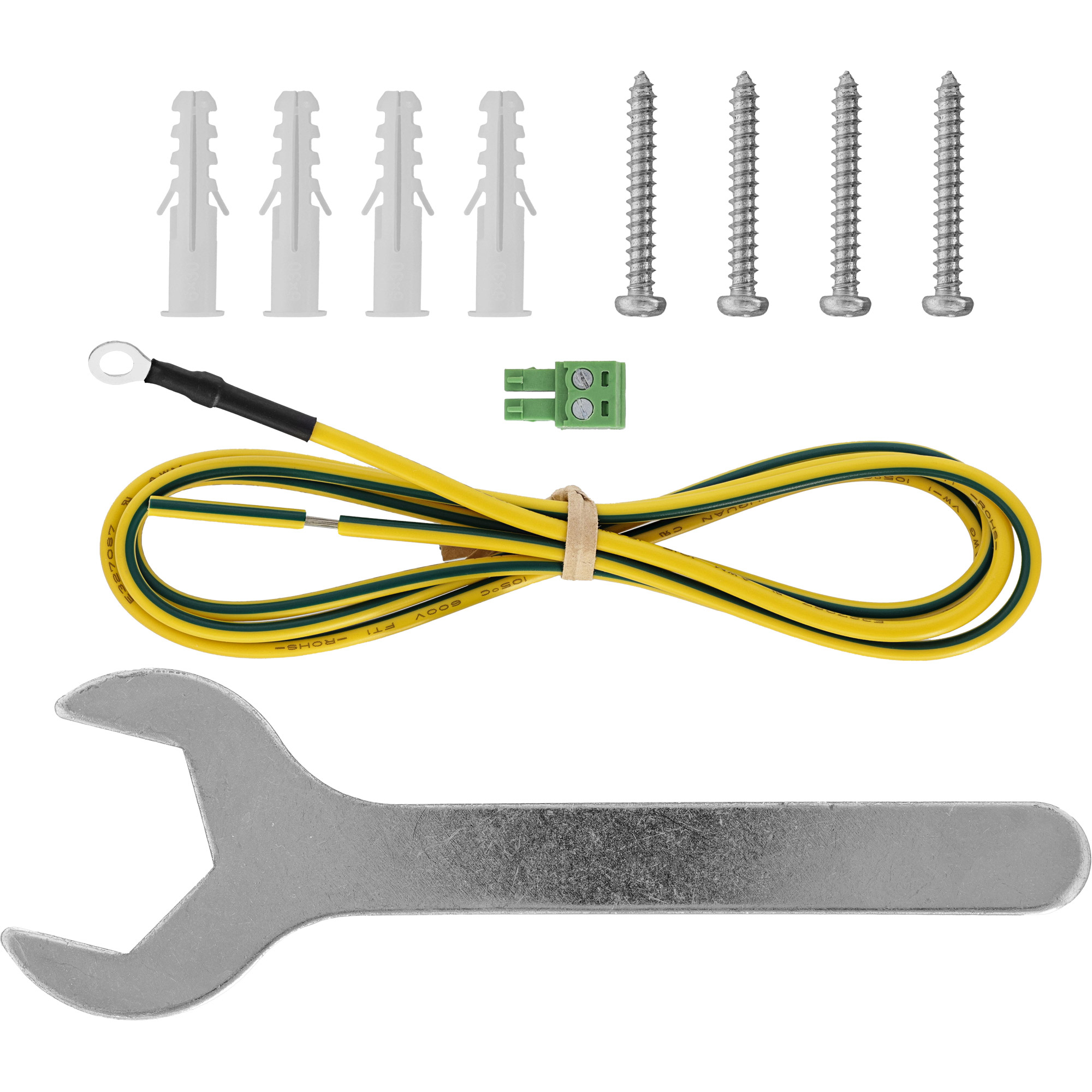

Packaging content
| Specification | Value |
|---|---|
| Number of products included | 1 pc(s) |
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 188 mm |
| Package depth | 240 mm |
| Package height | 86 mm |
| Package weight | 779 g |
| Package volume | 3900 cm³ |
Logistics data
| Specification | Value |
|---|---|
| Customs product code (TARIC) | 8517620000 |
| Harmonized System (HS) code | 851762 |
| Country of origin | China |
