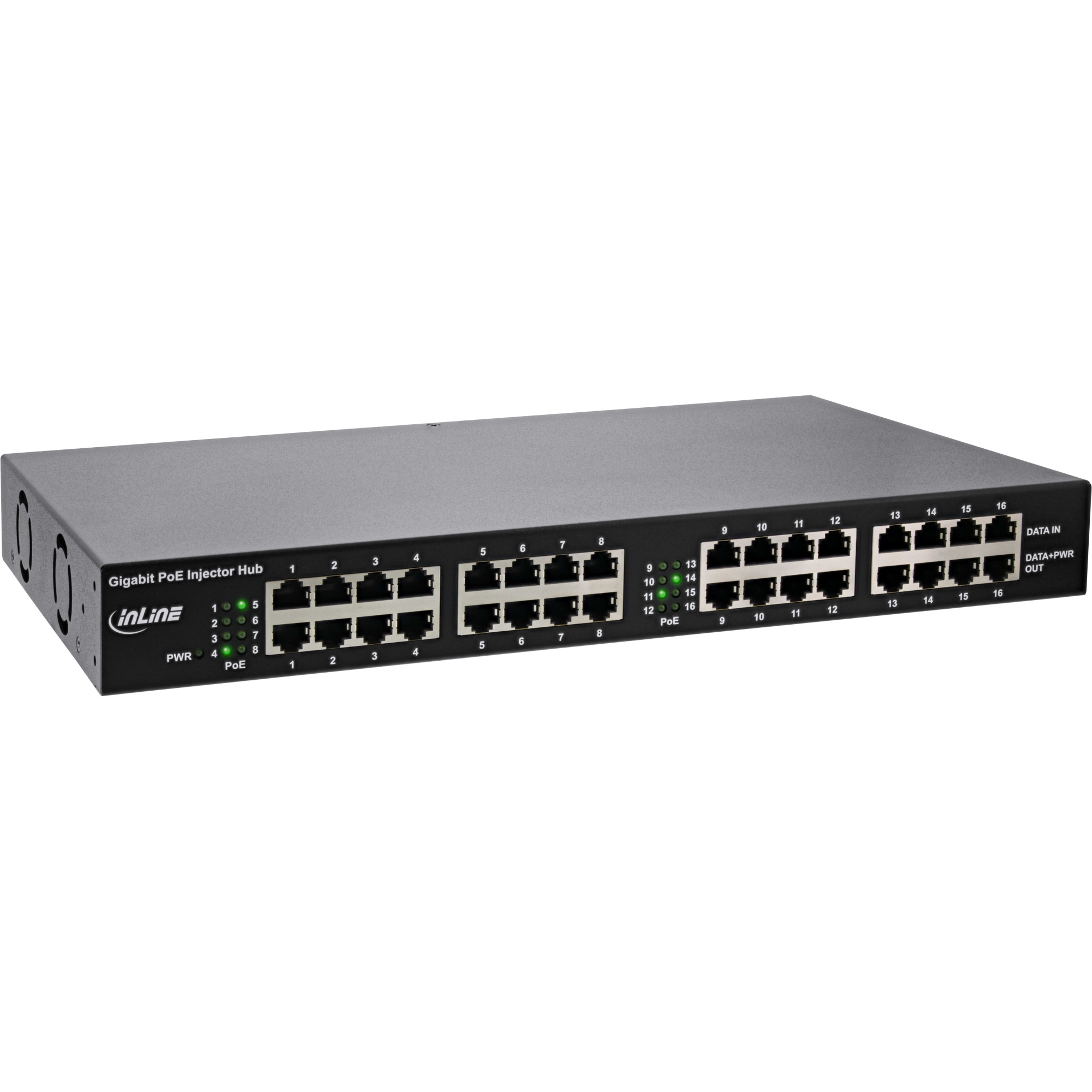

PoE+ Gigabit Injector Hub 16 Port PoE+
19"1U, brackets included, 2 fans
Model 32316HEAN 4043718288748
32 specifications
- Weight2.4 kg
- ColourBlack
- Ethernet interface typeGigabit Ethernet
- Ethernet LAN (RJ-45) ports16
- Power over Ethernet (PoE) voltage56 V
- Operating temperature (T-T)0 - 40 °C
Overview
- Weight
- 2.4 kg
- Colour
- Black
- Ethernet interface type
- Gigabit Ethernet
- Ethernet LAN (RJ-45) ports
- 16
- Power over Ethernet (PoE) voltage
- 56 V
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- InLine
- Category
- PoE Adapter
- Model
- 32316H
- Part number
- 32316H
- EAN / UPC
- 4043718288748
- Also known as
- InLine PoE+ Gigabit Injector Hub 16 Port PoE+, 19"1U, brackets included, 2 fans
Specifications
32 specifications in 9 groups
Network
| Specification | Value |
|---|---|
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Power over Ethernet (PoE) | Yes |
| Auto MDI/MDI-X | Yes |
| Networking standards | IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Power protection features | Over current, Over voltage, Overheating |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 16 |
| RJ-45 input ports | 16 |
| RJ-45 output ports | 16 |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) voltage | 56 V |
| Output power | 250 W |
| AC adapter input voltage | 100 - 240 V |
| Power over Ethernet (PoE) power per port | 30 W |
Certificates
| Specification | Value |
|---|---|
| Compliance industry standards | IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3af Power over Ethernet, IEEE 802.3at Power over Ethernet Plus |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 95% |
| Storage temperature (T-T) | -10 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Size (imperial) | 48.3 cm (19") |
| Width | 200 mm |
| Depth | 358 mm |
| Height | 43 mm |
| Weight | 2.4 kg |
| Dimensions (WxDxH) | 200 x 358 x 43 mm |

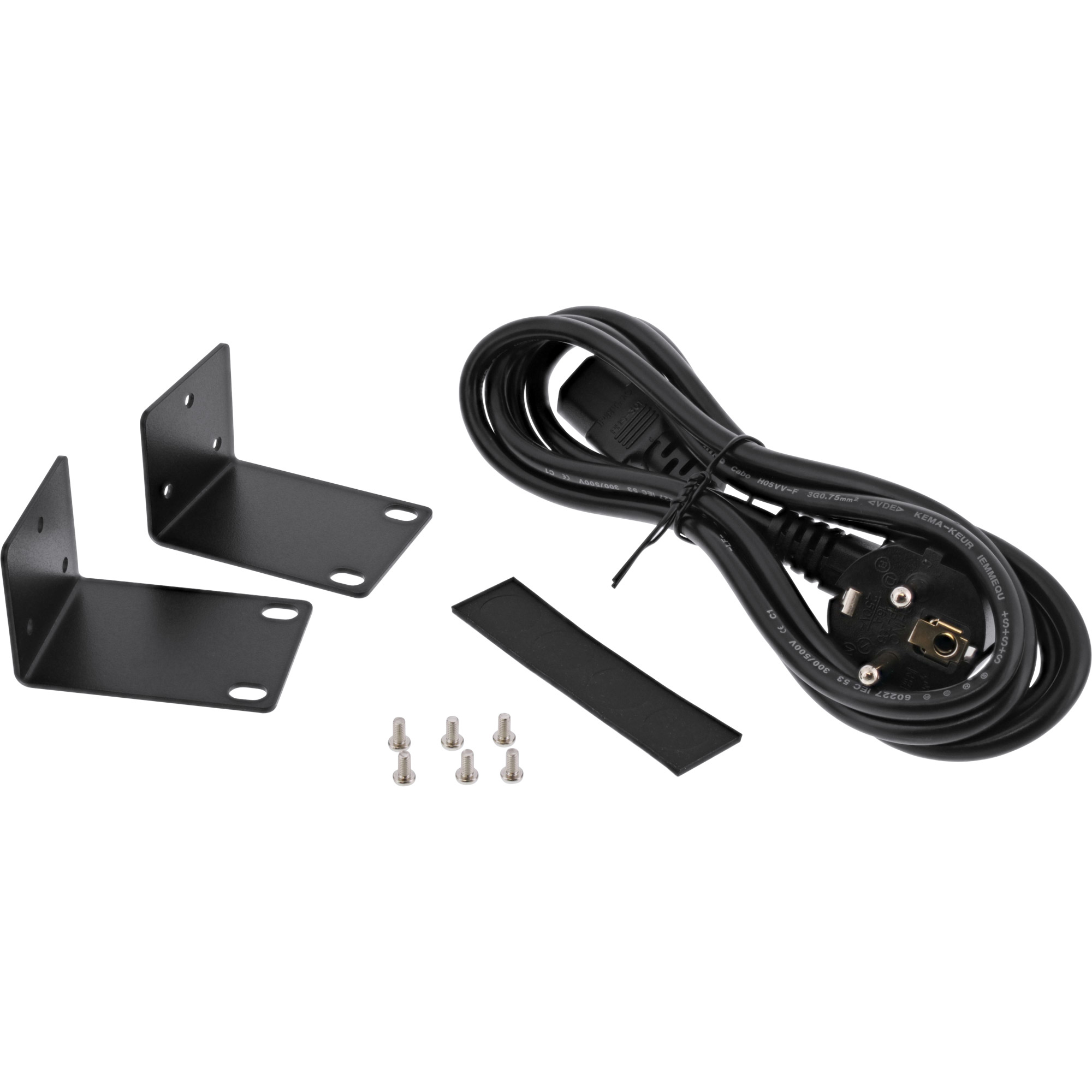

Packaging content
| Specification | Value |
|---|---|
| Wall mounting kit | Yes |
| AC adapter included | Yes |
| Power cord included | Yes |
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 260 mm |
| Package depth | 535 mm |
| Package height | 950 mm |
| Package weight | 3.3 kg |
