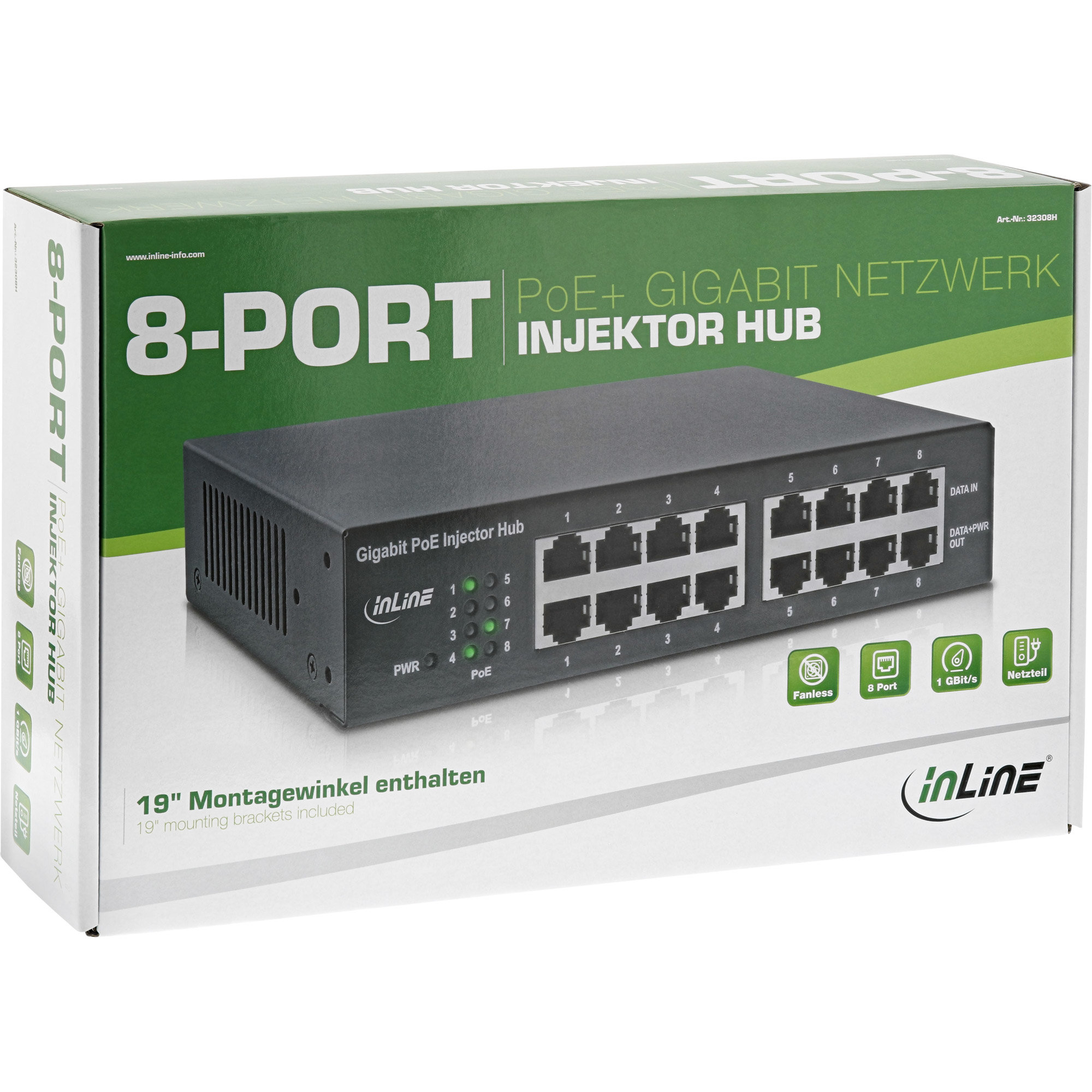

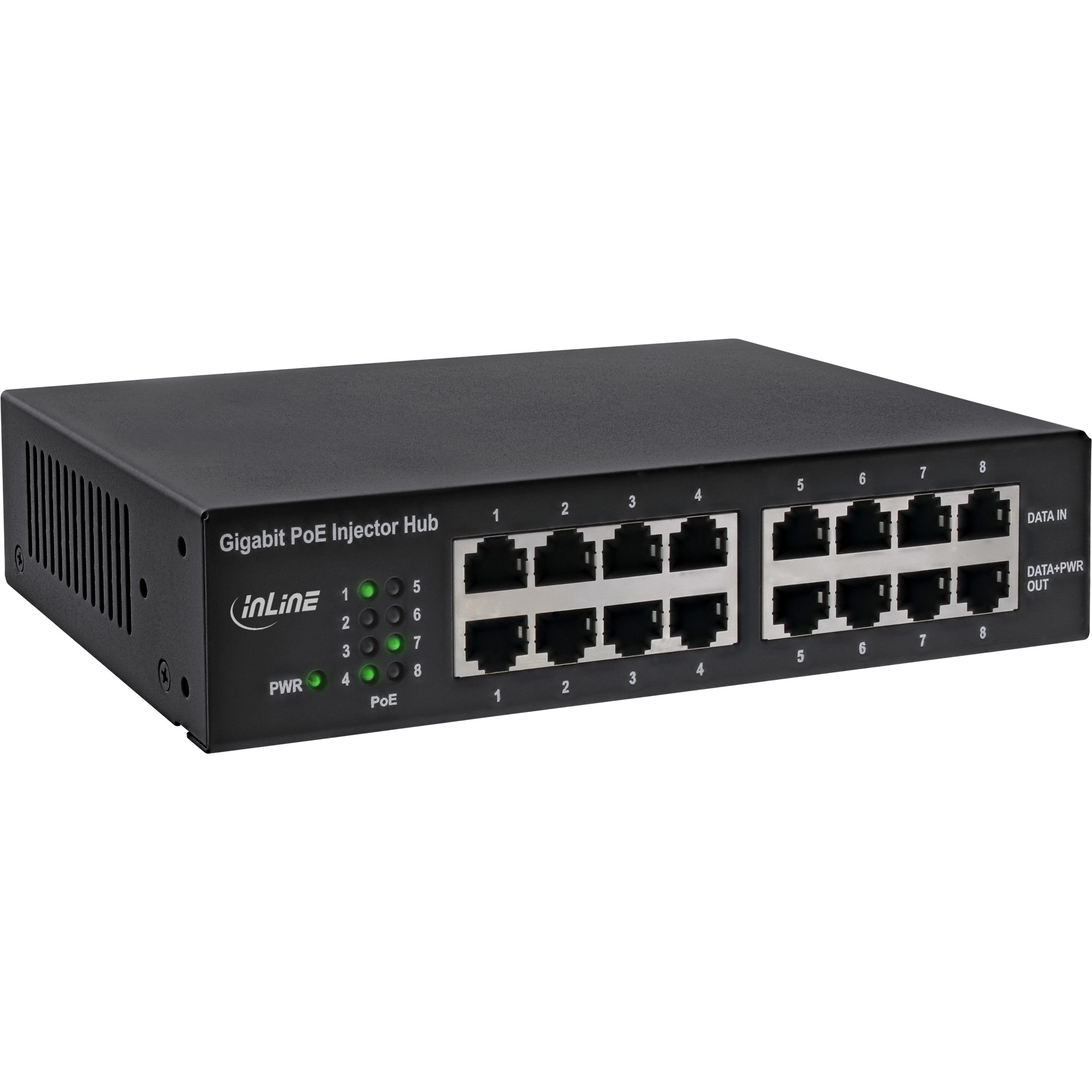

PoE+ Gigabit Network Injector Hub 8 Port (8x PoE+)
1Gb/s, 19" 1U
Model 32308HEAN 4043718276028
29 specifications
- Weight1.52 kg
- ColourBlack
- Ethernet interface typeGigabit Ethernet
- Ethernet LAN (RJ-45) ports8
- Power over Ethernet (PoE) voltage56 V
- Operating temperature (T-T)0 - 40 °C
Overview
- Weight
- 1.52 kg
- Colour
- Black
- Ethernet interface type
- Gigabit Ethernet
- Ethernet LAN (RJ-45) ports
- 8
- Power over Ethernet (PoE) voltage
- 56 V
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- InLine
- Category
- PoE Adapter
- Model
- 32308H
- Part number
- 32308H
- EAN / UPC
- 4043718276028
- Also known as
- InLine PoE+ Gigabit Network Injector Hub 8 Port (8x PoE+), 1Gb/s, 19" 1U
Specifications
29 specifications in 8 groups
Network
| Specification | Value |
|---|---|
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Power over Ethernet (PoE) | Yes |
| Auto MDI/MDI-X | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u |
Features
| Specification | Value |
|---|---|
| Product colour | Black |

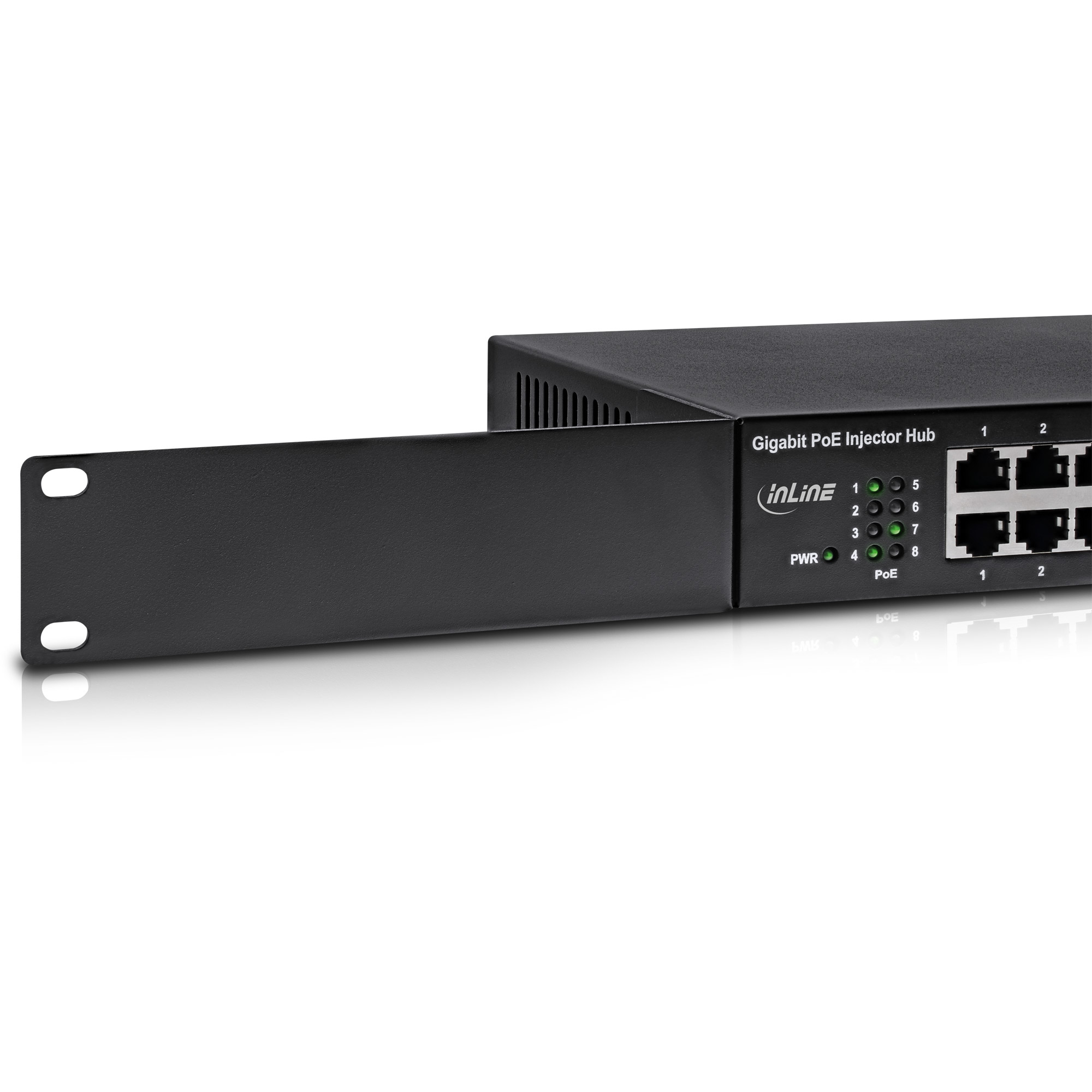

| Rack mounting | Yes |
| LED indicators | PoE, Power |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 8 |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) voltage | 56 V |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 120 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 95% |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 20 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Size (imperial) | 48.3 cm (19") |
| Width | 120 mm |
| Depth | 188 mm |
| Height | 44 mm |
| Weight | 1.52 kg |
| Dimensions (WxDxH) | 120 x 188 x 44 mm |
Packaging content
| Specification | Value |
|---|---|
| Number of products included | 1 pc(s) |
| AC adapter included | Yes |
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 237 mm |
| Package depth | 370 mm |
| Package height | 85 mm |
| Package weight | 2.1 kg |
