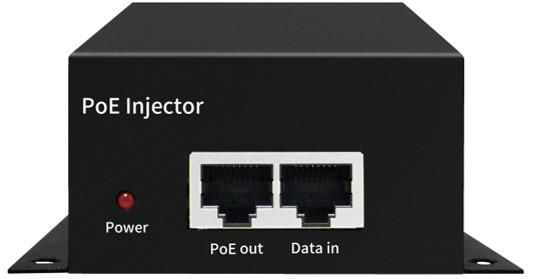

ELECTRA-POE-10GB-90W PoE adapter
52 V
Model ELECTRA-POE-10GB-90WEAN 5715063506981
31 specifications
- Weight486 g
- ColourBlack
- Power over Ethernet (PoE)Yes
- RJ-45 input ports1
- Power over Ethernet (PoE) voltage52 V
- Width245 mm
Overview
- Weight
- 486 g
- Colour
- Black
- Power over Ethernet (PoE)
- Yes
- RJ-45 input ports
- 1
- Power over Ethernet (PoE) voltage
- 52 V
- Width
- 245 mm
- Brand
- Ernitec
- Category
- PoE Adapter
- Model
- ELECTRA-POE-10GB-90W
- Part number
- ELECTRA-POE-10GB-90W
- EAN / UPC
- 5715063506981
- Also known as
- Ernitec ELECTRA-POE-10GB-90W PoE adapter 52 V
Specifications
31 specifications in 8 groups
Network
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Networking standards | IEEE 802.3af |
| Supported network protocols | IEEE802.3 (Ethernet) |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| Plug and Play | Yes |
| Surge protection | Yes |
| LED indicators | Power |
| International Protection (IP) code | IP20 |
| Number of fans | 0 fan(s) |
Ports & interfaces
| Specification | Value |
|---|---|
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) voltage | 52 V |
| AC adapter input voltage | 100-240 V |
| Output current | 1.92 A |
| Power over Ethernet (PoE) power per port | 90 W |
| Total Power over Ethernet (PoE) budget | 90 W |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 245 mm |
| Depth | 190 mm |
| Height | 60 mm |
| Weight | 486 g |
| Dimensions (WxDxH) | 187 x 95 x 40 mm |
Packaging content
| Specification | Value |
|---|---|
| Number of products included | 1 pc(s) |
| Power cord included | Yes |
| Quick installation guide | Yes |
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 245 mm |
| Package depth | 190 mm |
| Package height | 60 mm |
| Package weight | 712 g |
